| 型号 Model | 起重量 Capacity | 提升高度 Lift height (m) | 提升速度 Lift speed (m/min) | 功率 Power (KW) | 转速 R.P.M (r/min) | 相数 Phase | 电压 Voltage (V) | 频率 Frequency (hz/s) |
|---|---|---|---|---|---|---|---|---|
| SY-0.3-1 | 300kg | 3-9m | 7.1 | 0.4 | 1440 | 3 | 220-440 | 50/60 |
| SY-0.5-1 | 500kg | 3-9m | 6.8 | 0.75 | 1440 | 3 | 220-440 | 50/60 |
| SY-1-1 | 1000kg | 3-9m | 6.6 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| SY-1-2 | 1000kg | 3-9m | 3.4 | 0.75 | 1440 | 3 | 220-440 | 50/60 |
| SY-2-1 | 2000kg | 3-9m | 6.6 | 3 | 1440 | 3 | 220-440 | 50/60 |
| SY-2-2 | 2000kg | 3-9m | 3.3 | 3 | 1440 | 3 | 220-440 | 50/60 |
| SY-3-1 | 3000kg | 3-9m | 5.4 | 3 | 1440 | 3 | 220-440 | 50/60 |
| SY-3-2 | 3000kg | 3-9m | 4.4 | 3 | 1440 | 3 | 220-440 | 50/60 |
| SY-3-3 | 3000kg | 3-9m | 2.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| SY-5-2 | 5000kg | 3-9m | 2.7 | 3 | 1440 | 3 | 220-440 | 50/60 |
| SY-7.5-3 | 7500kg | 3-9m | 1.8 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| SY-10-4 | 10000kg | 3-9m | 2.7 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| SY-15-6 | 15000kg | 3-9m | 1.9 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| SY-20-8 | 20000kg | 3-9m | 1.4 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| SY-25-10 | 25000kg | 3-9m | 1.1 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| SY-30-12 | 32000kg | 3-9m | 0.9 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
| SY-50-20 | 50000kg | 3-9m | 0.7 | 3×2 | 1440 | 3 | 220-440 | 50/60 |
Lifting & Hoist

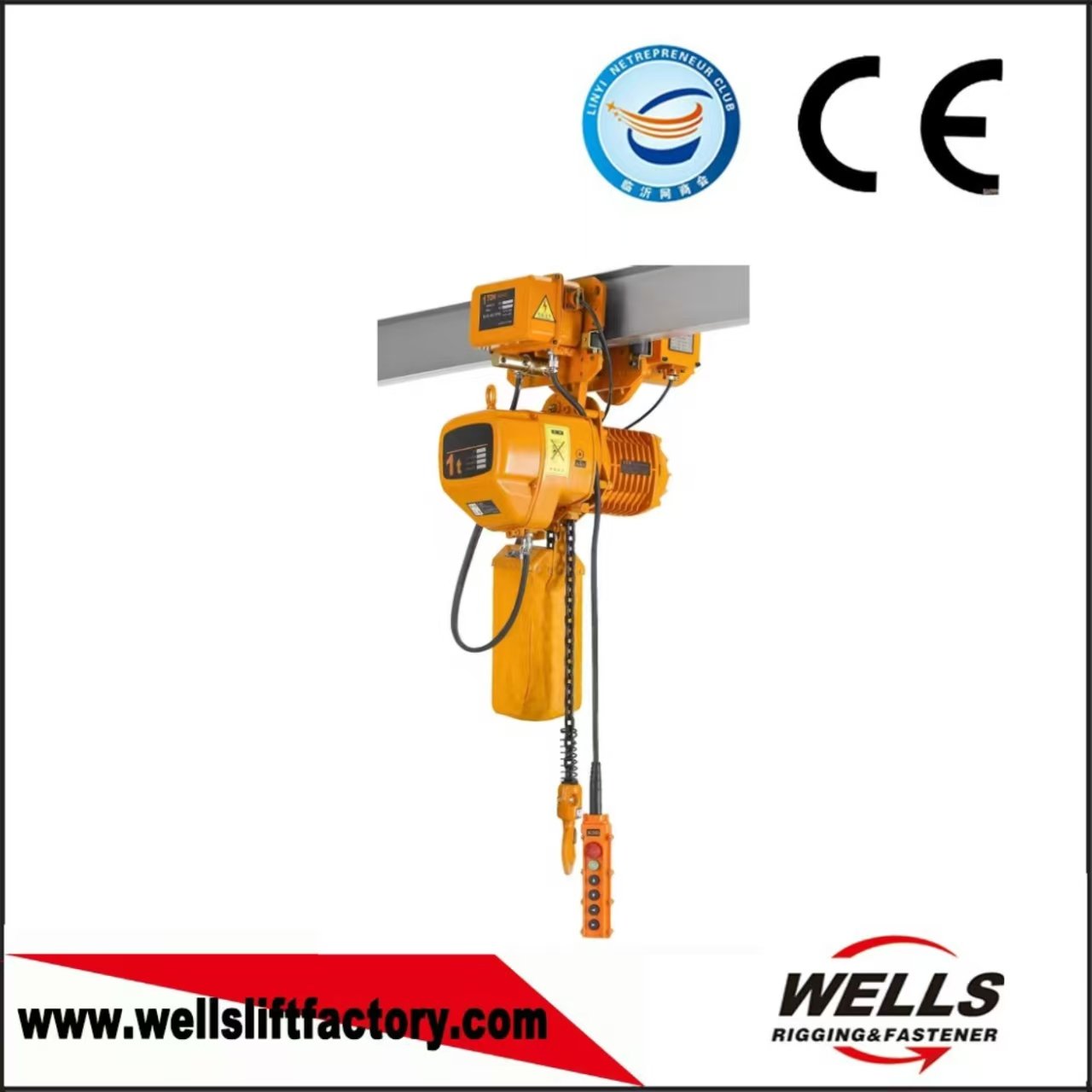

HHBB ELECTRIC CHAIN HOIST
HHBB chain electric hoist is a lightweight electric chain block with a rated load0.5T-50T, The lifting height is 3-120m, and wireless remote control is available.The HHBB ring chain electric hoist has an independent transmission system, which seals the secondary transmission.The shaft transmission gear mechanism adopts a longlife oil bath lubrication system.Can be widely used for lifting heavy objects or installing on single beam cranes, straight, curved, and circular rails.On I-beams, it can also beused for double beam cranes, gantry cranes, cantilever cranes, and simple gantryframeslt is a commonly used lifting equipment in industrial and mining enterprises,railways, docks, warehouses, and electric power.
