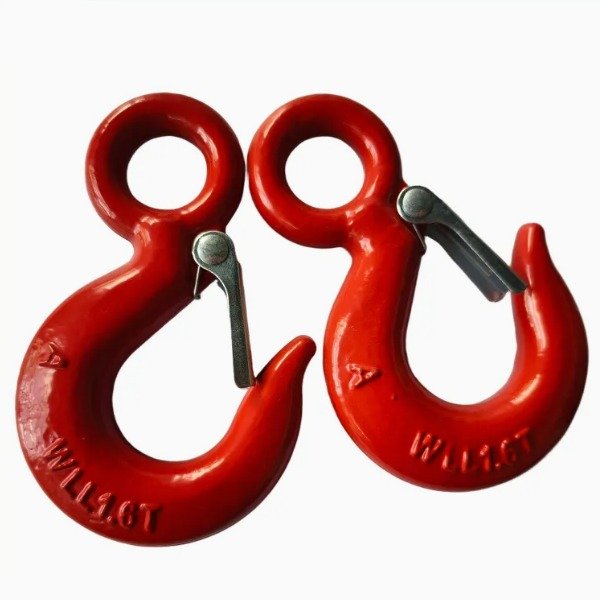

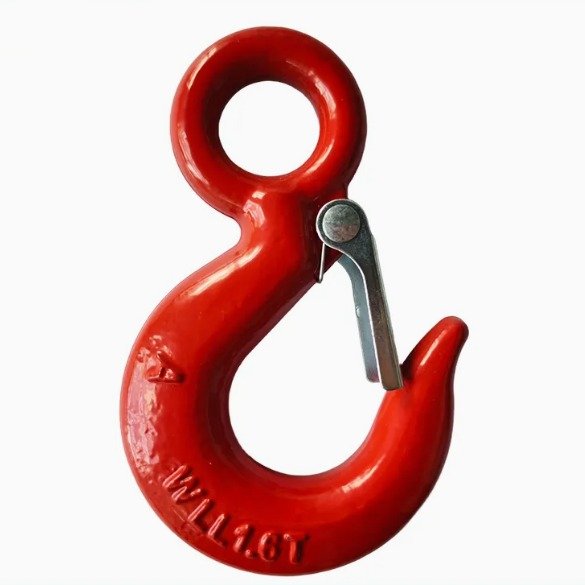

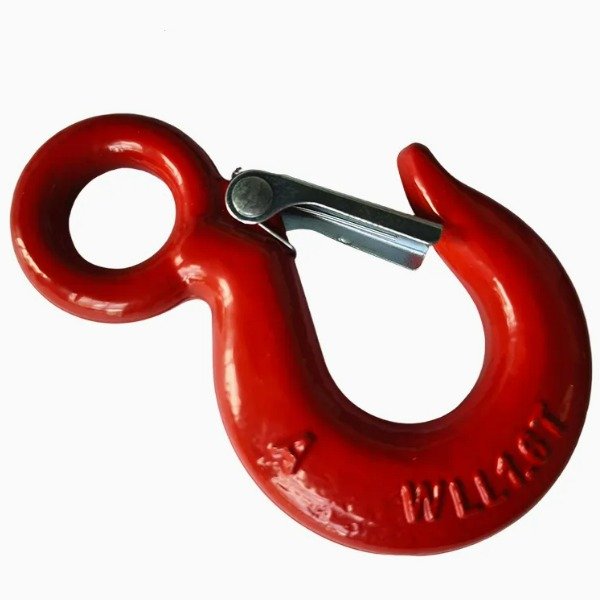

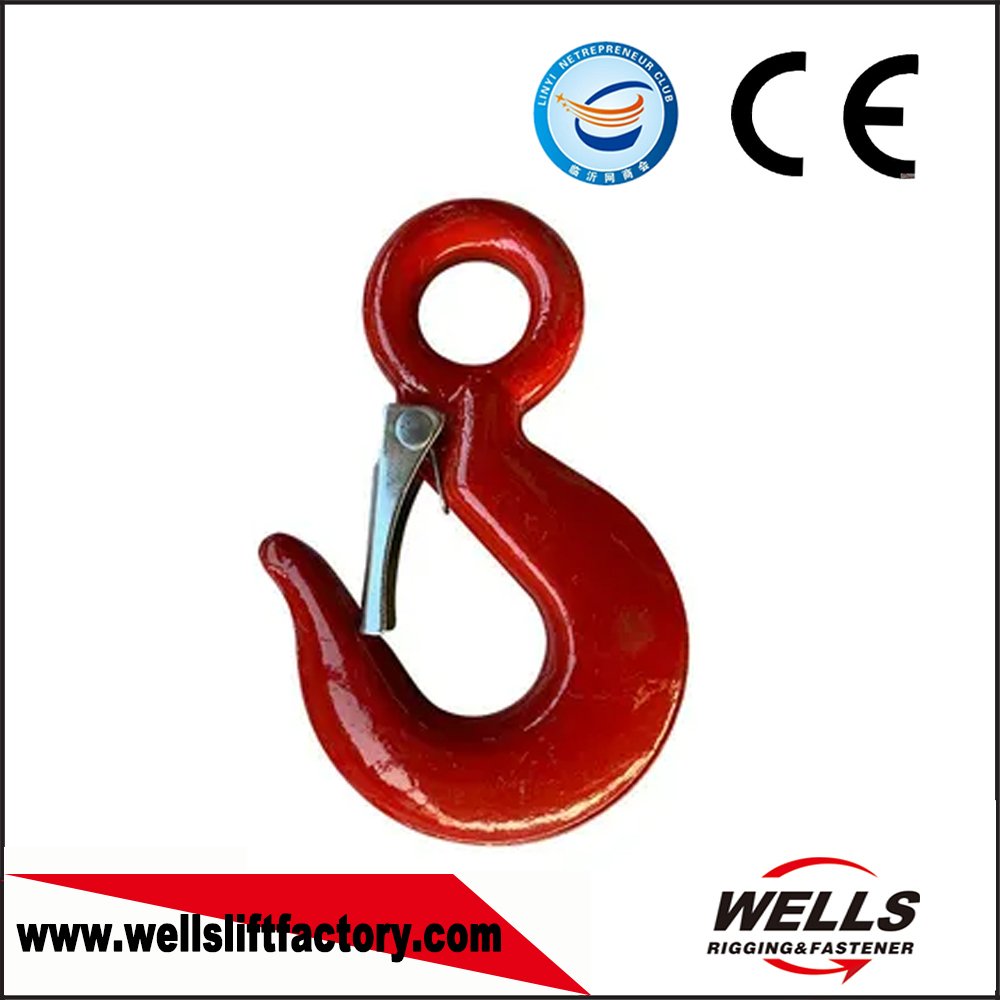

320A/320C US TYPE EYE HOOKS WITH LATCH

Features
*Materials: Alloy steel for 320A, Carbon steel for 320C
*Surface treatment: Color-spraying, self-color, zinc plated
*Process: Drop forged, heat treated
*Special specifications and marks can be made according to customer’s requirement
*Packing: Gunny bags and cartons on pallet

Category: Hooks

US Type 320A/C Galvanized Alloy Steel Drop Forged Locking Lifting Eye Hook with Safety Latch

Model number: 320A/320C
Material: 320C-Carbon Steel; 320A-Alloy steel
Technology: Forged, Quenched &Tempered
Finish: Plain, Black, Zinc, Electrolytic Treatment
Certificate: CE certificate
Surface treatment: Powder Painted
Color: Red,Yellow,Blue
Testing: Proof Load is 2 times Working Load Limit; Ultimate Load is 5 times Working Load Limit
Usage: Lifting and connecting
Application: Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry

Product Specification:

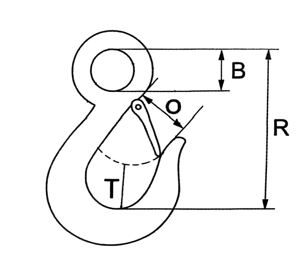

Item no	Working Load Limit (TONS)		Dimensions(mm)				Weight
Item no	320C	320A	B	R	O	T	kgs
8101101	0.50	0.75	0.63	2.8	0.81	0.65	0.17
8101102	0.75	1.00	0.75	3.22	0.88	0.81	0.26
8101103	1.00	1.50	0.91	3.66	0.97	0.81	0.35
8101104	1.50	2.00	1.12	4.09	1.00	0.84	0.58
8101105	2.00	3.00	1.25	4.69	1.12	1.19	0.79
8101106	3.00	4.50	1.56	5.78	1.34	1.38	1.66
8101107	5.00	7.00	2	7.38	1.69	1.78	3.26
8101108	7.50	11.00	2.44	9.06	2.06	2.12	5.97
8101109	10.00	15.00	2.83	10.09	2.22	2.72	10.05
