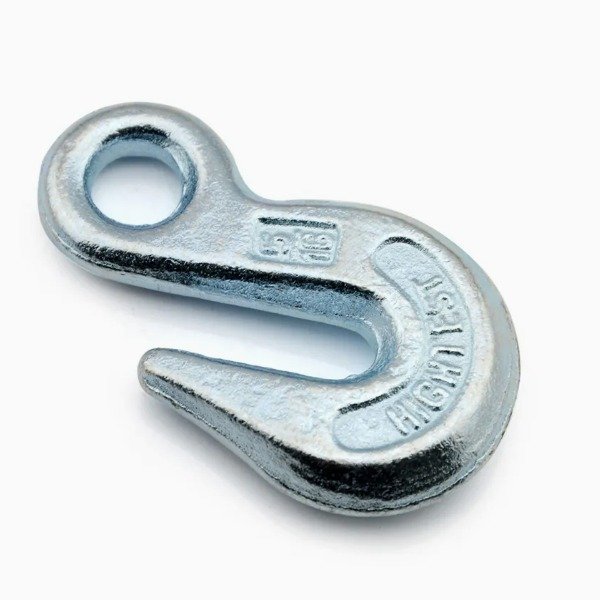

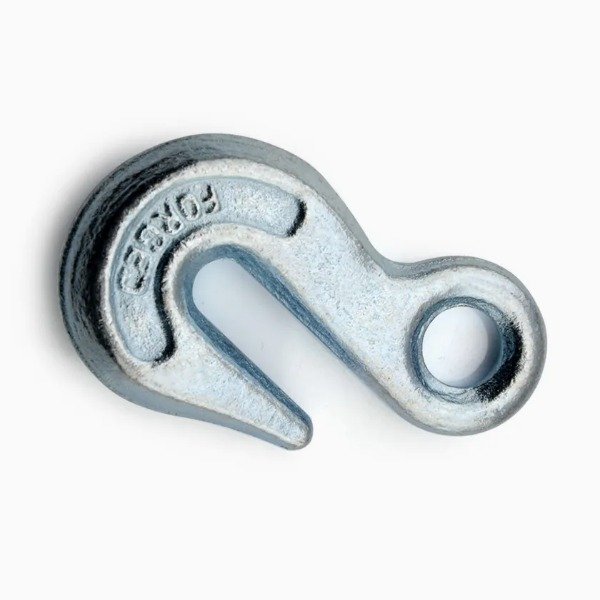

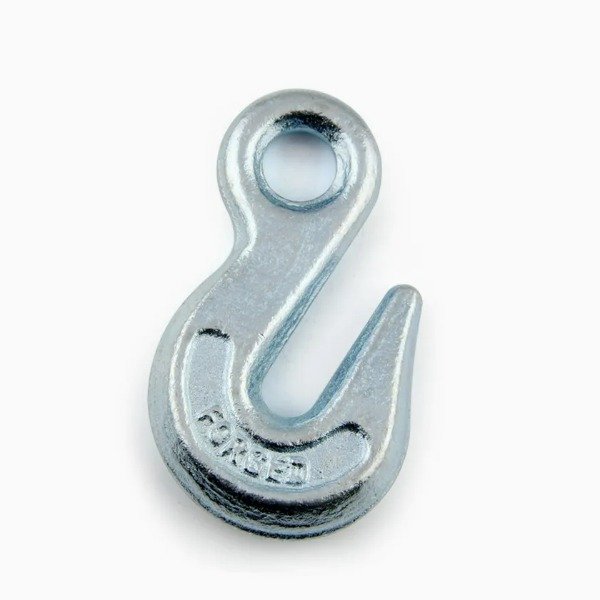

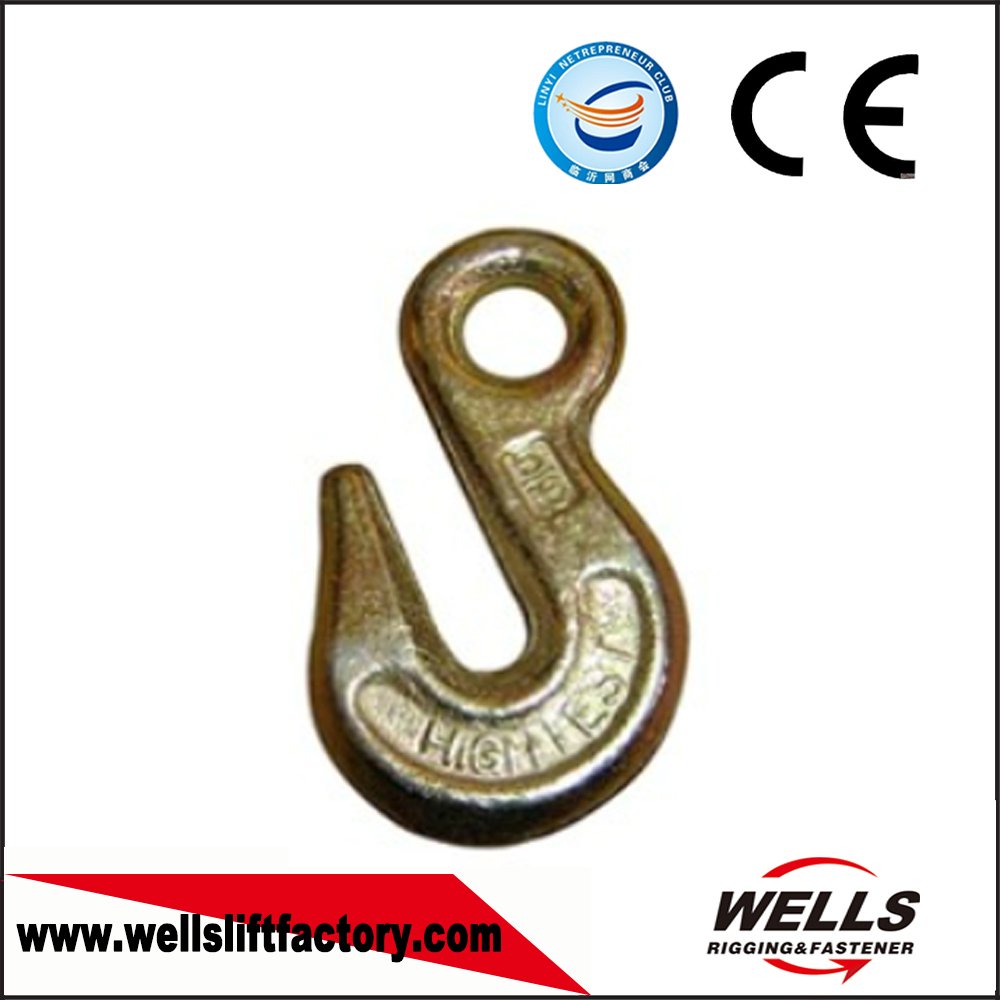

H-323/A-323 US Type Lifting Eye Grab Hook
Product Description:
- Type: A323/H323
- Material: H-323 Forged Carbon Steel; A-323 Forged Alloy Steel
- Technology: Forged, Quenched &Tempered
- Finish: Spray painting/Galvanized
- Certificate: CE certificate
- Testing: Ultimate Load is 4 times Working Load Limit
- Usage: Lifting and connecting
- Application: Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry
Product Specification:

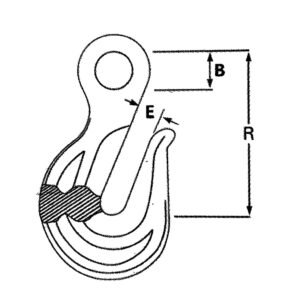

| Item no | Size of Chain | Working Load Limit (lbs) | Dimensions(mm) | Weight | |||
| H-323 | A-323 | B | E | R | kgs | ||
| 8100301 | 1/4” | 2600 | 3600 | 0.54 | 0.35 | 1.90 | 0.17 |
| 8100302 | 5/16” | 3900 | 5400 | 0.63 | 0.45 | 2.31 | 0.24 |
| 8100303 | 3/8” | 5400 | 7500 | 0.76 | 0.50 | 2.78 | 0.48 |
| 8100304 | 1/2” | 9200 | 12750 | 0.90 | 0.69 | 3.45 | 0.92 |
