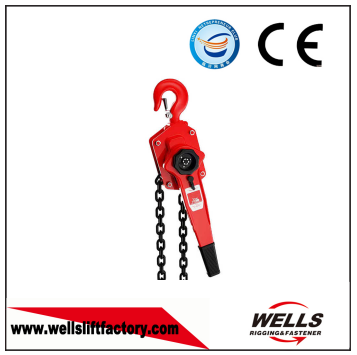

VA HAND EVER BLOCK

Low weight, small mounting sizes and small lever forces at full load Premium grade alloy load chain as standard.Drop-forged and expertly heat treated hooks for great strength and long wearing The lifting length can be provided upon request

Category: Lifting & Hoist

Description
Reviews (0)

VA HAND EVER BLOCK

Specification
Model		HSH-0.75T	HSH-1.5T	HSH-3.0T	HSH-6T	HSH-9T
Capacity	tons	0.75	1.5	3	6	9
Standard lift	m	1.5	1.5	1.5	1.5	1.5
Running test load	kn	12	24	45	94.5	118.8
Effort required to lift rated load	n	140	220	320	340	360
Strands of load chain		1	1	1	2	3
Diameter of load chain	mm	6	8	10	10	10
Dimensions (mm)	A	145	175	203	203	203
	B	86	100	118	118	118
	C	122	130	150	205	316
	D	37	45	50	64	85
	H	320	380	480	620	700
	L	280	410	410	410	410
	K	30	36	40	50	58
Net weight	kg	7	11	21	31	47
Packing measurement	cm	36×12.5×16	50×13.5×19	54×17×21.5	54×18×12.5	82×32×21.5
Extra weight per metre of extra lift	kg	0.8	1.4	2.2	4.4	6.6
