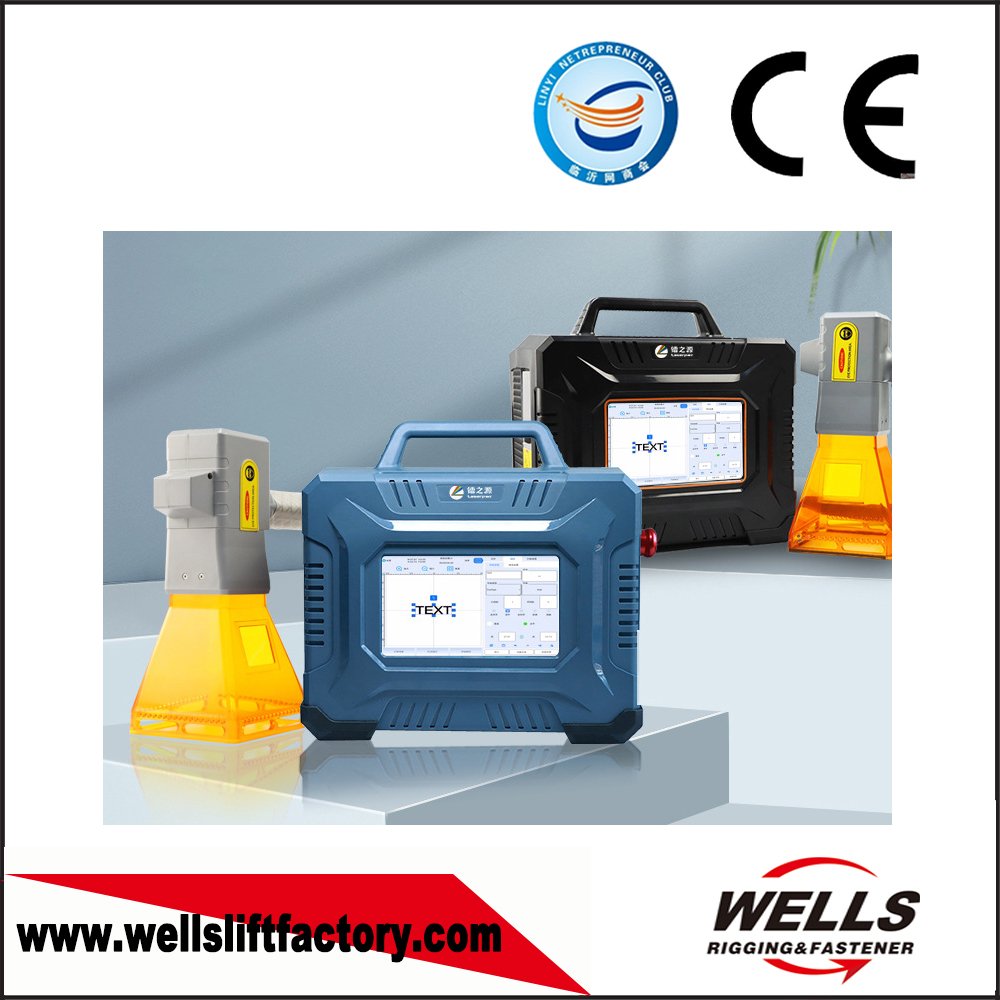

portable handheld laser marking machine

portable handheld laser marking machine

Equipment characteristics

1.The maximum power is increased to 60W, the marking accuracy is higher, the speed is faster.

2.The marking gun head adopts full protection design to meet the EU CE safety standard.

3.Self-developed Linux system, easy to operate, 7 inch HDcapacitive screen, sensitive editing.

4.Software support secondary development, can be linked with MES,ERP, PLC.

5.External mouse, keyboard, scanning gun, computer, can be controlled by mobile app.

6.Lithium battery adopts replaceable design, supporting charging while using.

7.High degree of integration: automatic marking can be achieved with manipulator.

Category:

portable handheld laser marking machine

Material of complete machine

Environmental protection engineering plastics

Laser type



Fiber laser generator



Laser power



20W/30W/50W/60W

Laser wavelength



1064 nm



Maximum pulse energy



≥1.4mJ



Cooling system



Air cooling



Operating system



Linux system



Frequency regulation range



45-170Khz

Marking range



Standard100×100mm(50×50mm/150×150mmoptional)



Positioning mode



Red light location



Supports the marking type



Text, two-dimensional code,vector,digital date,bitmap,geometric graphics can be combined

to edit, support hand-drawn,spiral,Lissajou curve drawing



System language



Chinese,English,Japanese,Russian,Italian,Spanish,Portuguese,Traditional Chinese,Korean,

French,Arabic,German,Polish,Czech,Thai,etc



Supply voltage



AC90V-240V,50/60HZ



Power supply mode



Plug-in/battery (support charging while using)



Maximum power consumption



200W



Net machine weight



(Power supply):6-9kg

(lithium battery):9-12kg
