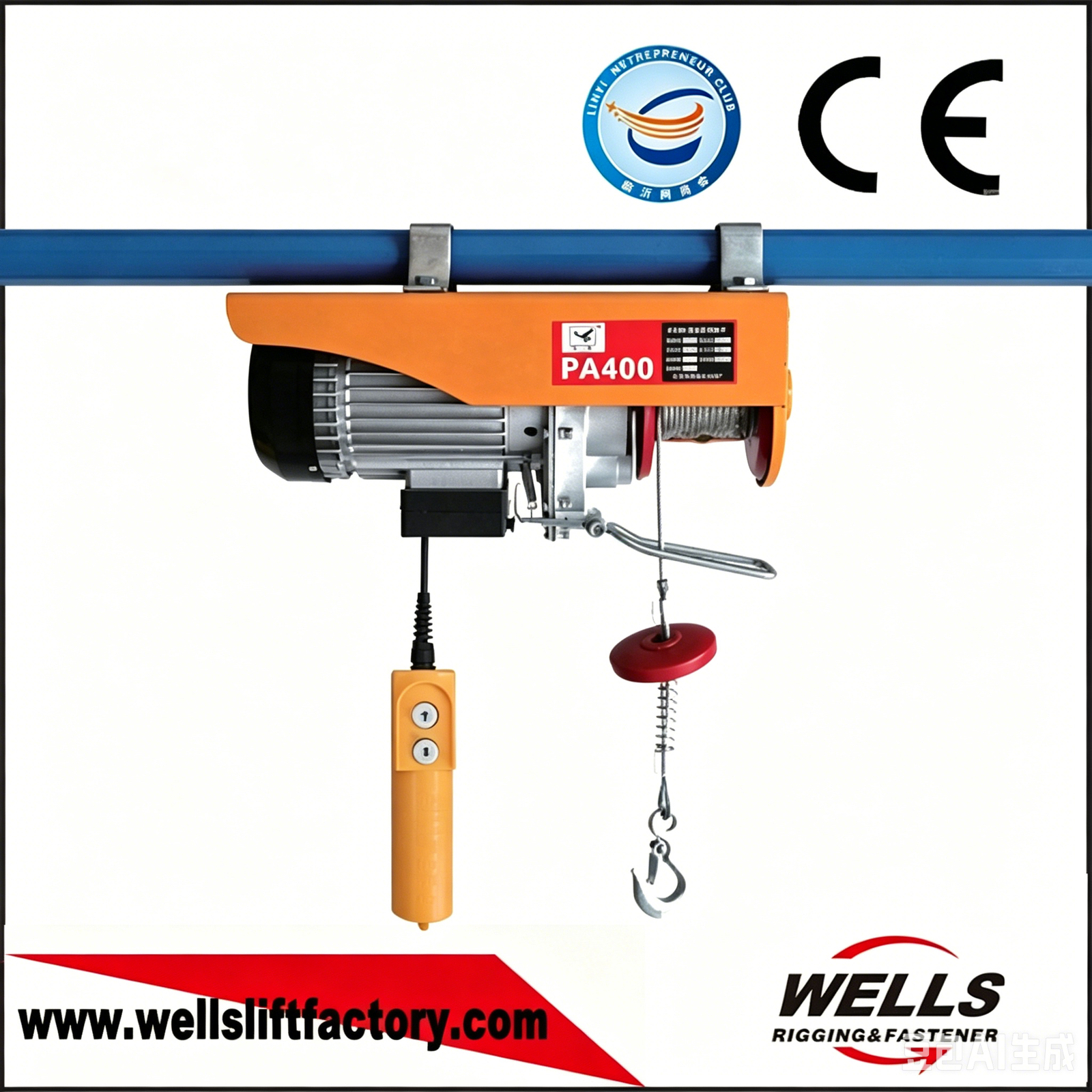

PA miniature electric hoist
Remote control: with emergency stop button, safe and secure, can be equipped with wireless remote control
Wire rope: The wire rope adopts GB-1102-71 (6*37+1) type lifting wire rope, which is durable
Motor protection rating: IP54
Brake: point magnetic brake system, automatic brake after power off
| 型号 Model | 起重量 Capacity (kg) | 起升高度 Lifting height (m) | 起升速度 Lifting speed (m/min) | 电压 Voltage (v) | 功率 Power (Kw) | 装箱尺寸 Packing Size (cm) | 装箱数量 PCS/Case | 净重 N.W. (kg) |
|---|---|---|---|---|---|---|---|---|
| PA200 | 100/200 | 12/6 | 10/5 | 220/230 | 0.51 | 47*37*16 | 2 | 22 |
| PA400 | 200/400 | 12/6 | 10/5 | 220/230 | 0.98 | 47*37*16 | 2 | 33 |
| PA600 | 300/600 | 12/6 | 10/5 | 220/230 | 1.2 | 47*37*16 | 2 | 33 |
| PA800 | 400/800 | 12/6 | 10/5 | 220/230 | 1.3 | 52*45*17.5 | 2 | 37 |
| PA1000 | 500/1000 | 12/6 | 10/5 | 220/230 | 1.6 | 51.5*34*19 | 1 | 32.7 |
