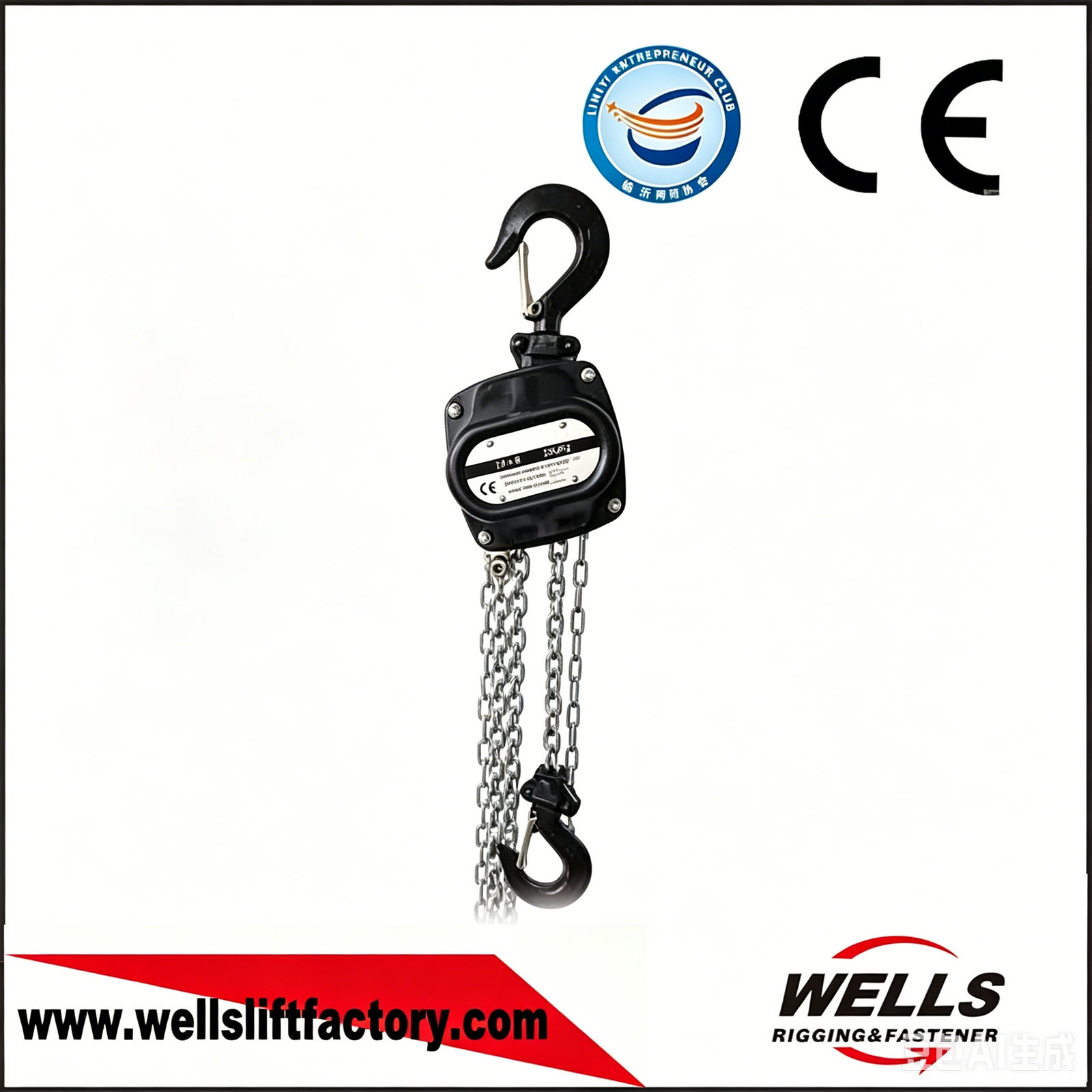

DF chain hoist
Rated load: 250 kilograms
Operating environment conditions
Operating temperature range: -40°C – +60°C
Operating environment range: Please use it below 100% RH, and do not use it in water.
Material used: No use of fire-resistant materials or asbestos and other special materials.
Do not use beyond the load limit.
| 型号
Type |
额定载荷
Rated Capacity (kg) |
标准起重高度
Standard lift (M) |
起重链条行数
No. of falls of load chain |
满载时手拉力
Hand tension at full load (N) |
实验载荷
Running Test (kg) |
起重链条规格
Lifting chain specifications (mm) |
手拉链条规格
Hand pull chain specifications (mm) |
净重
Net Weight (kg) |
包装尺寸
Packing (cm) |
主要尺寸 – a | 主要尺寸 – b | 主要尺寸 – c | 主要尺寸 – d | 主要尺寸 – e | 主要尺寸 – f | 主要尺寸 – Hmin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF | 250 | 2.5 | 1 | 220 | 375 | 4 × 12 | 3 × 16.5 | 4.0 | 24×12.5×12.5 | 102 | 28 | 98 | 31 | 114 | 65 | 261 |
| CM | 500 | 2.5 | 1 | 235 | 625 | 5 × 15 | 4 × 20 | 6.3 | 20×16×16 | 121 | 31 | 123 | 21 | 114 | 75 | 280 |
