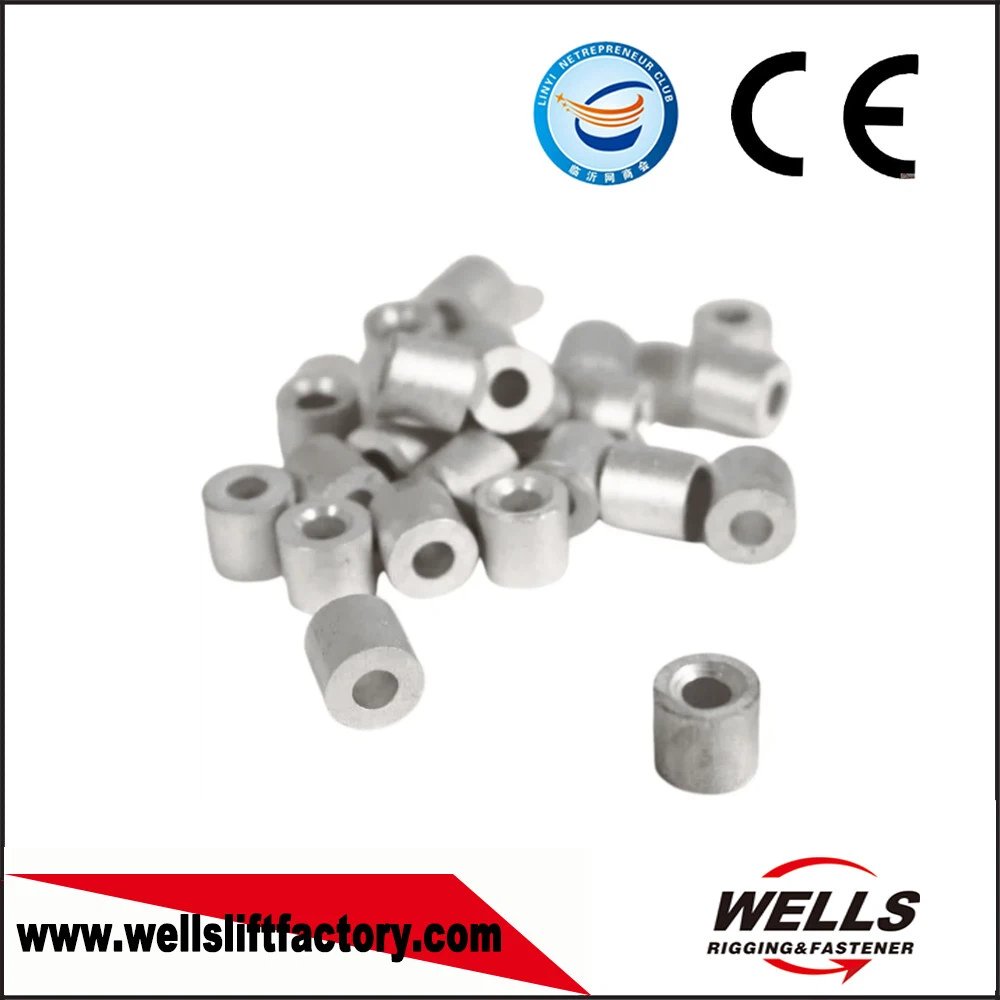

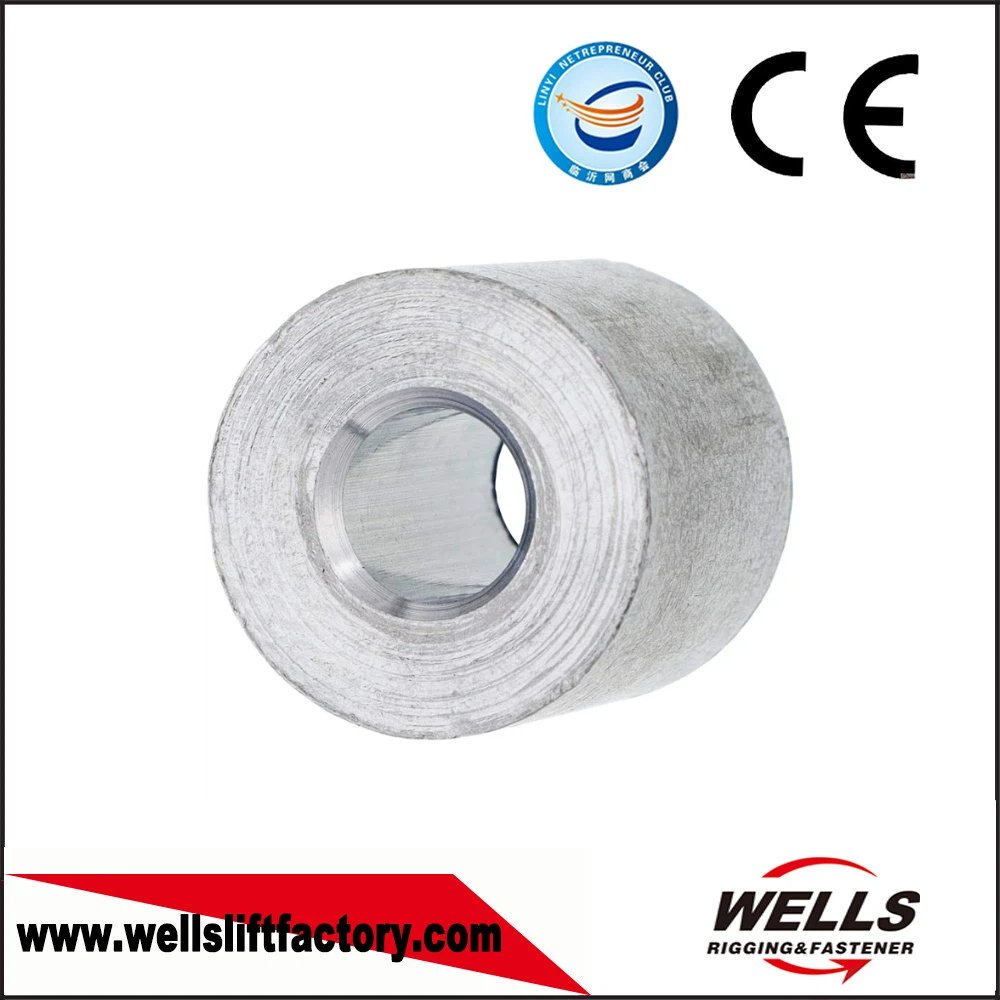

ALUMINUM STOP BUTTONS

Size:3/64”-3/8”
Features:The wire rope stop sleeve have chamfer is convenient for threading.
Material:Its material is aluminum, which is easy to deform and tightly combines with steel wire rope.
Application:Suitable for general purpose cable, dog leashes,clothes lines or anything else that require strong cable.

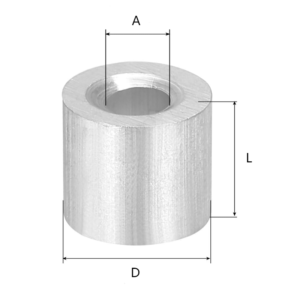

ltem no	Size	A(mm)	D(mm)	L(mm)	W(mm)
ltem no	Size	Inner Dia.	Outer Dia.	Length	kgs/ 1000pcs
7001001	3/64”	1.54	4.4	4.16	0.236
7001002	1/16”	1.92	6.35	4.16	0.278
7001003	5/64”	2.38	6.35	4.16	0.282
7001004	3/32”	2.9	8.72	7.95	1.05
7001005	1/8”	3.86	8.72	7.95	0.949
7001006	5/32”	4.7	11.11	8.73	1.76
7001007	3/16”	5.54	11.11	8.73	1.69
7001008	7/32”	6.35	11.11	8.73	1.5
7001009	1/4”	7.2	17.46	17.46	9.07
7001010	5/16”	9.53	17.46	17.46	7.46
7001011	3/8”	11.13	17.46	17.46	6.58
