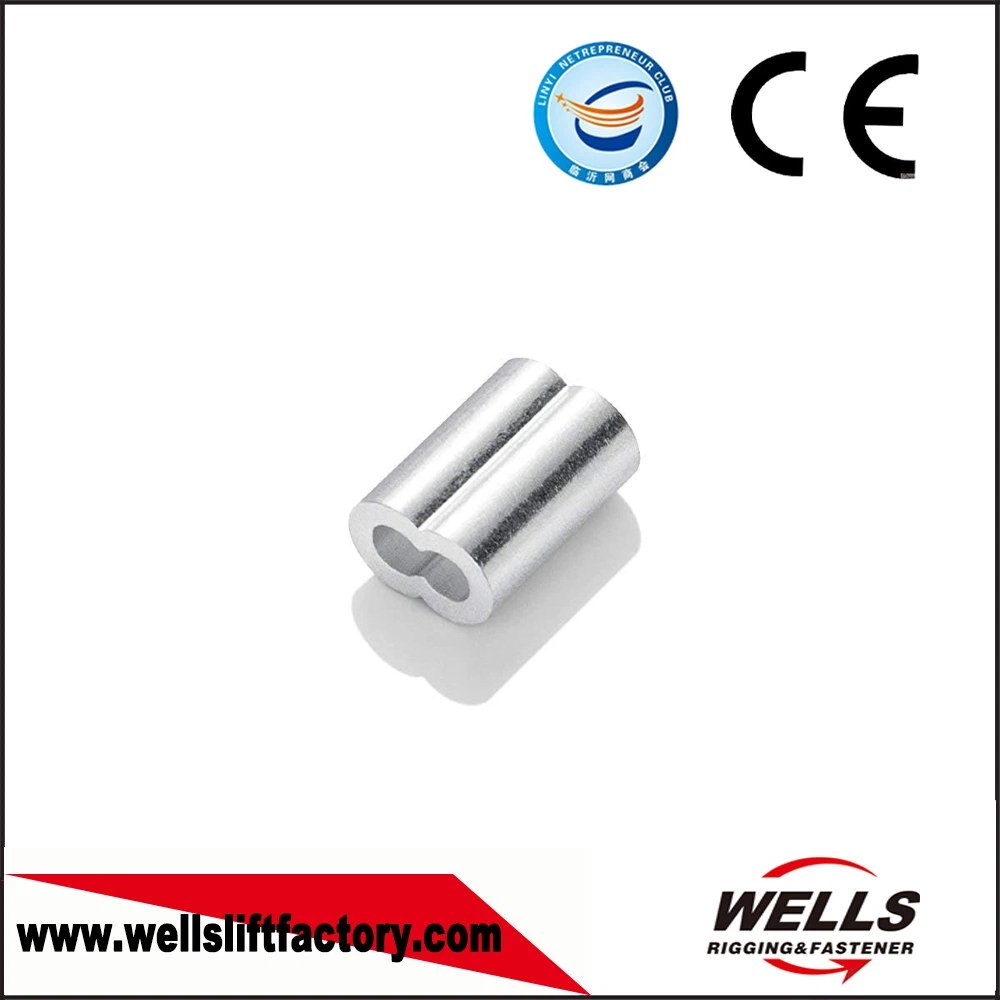

ALUMINUM HOURGLASS SLEEVES

Size: 3/64”-5/8”(1.19-15.88mm)
Features: The wire rope stop sleeve have chamfer is convenient for threading.
Material: Its material is aluminum, which is easy to deform and tightly combines with steel wire rope.
Application: Suitable for general purpose cable, dog leashes,clothes lines or anything else that require strong cable.

Item no	Size		A		B		C		D		L		WEIGHT
Item no	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	lbs/1000pcs
7004001	3/64	1.19	1/16	1.59	1/8	3.18	9/64	3.6	13/64	5.2	3/8	9.5	0.276
7004002	1/16	1.58	5/64	1.98	5/32	3.97	11/64	4.4	1/4	6.4	3/8	9.5	0.433
7004003	5/64	1.98	3/32	2.38	3/16	4.76	13/64	5.2	5/16	7.9	3/8	9.5	0.645
7004004	3/32	2.38	1/8	3.18	1/4	6.35	9/32	7.1	13/32	10.3	1/2	12.7	1.45
7004005	1/8	3.18	5/32	3.97	5/16	7.94	11/32	8.7	1/2	12.7	5/8	16	2.7
7004006	5/32	3.97	3/16	4.76	3/8	9.53	3/8	9.53	9/16	14.3	11/16	17	3.67
7004007	3/16	4.76	7/32	5.56	7/16	11.11	7/16	11.11	21/32	16.7	1	25	7.18
7004008	7/32	5.56	1/4	6.35	1/2	12.7	1/2	12.7	3/4	19	1-1/16	26	10
7004009	1/4	6.35	9/32	7.14	9/16	14.29	17/32	13.5	13/16	20.6	1-1/8	28	11.76
7004010	9/32	7.14	5/16	7.94	5/8	15.88	9/16	14.3	7/8	22.2	1-3/16	30	13.62
7004011	5/16	7.94	3/8	9.53	23/32	19.05	11/16	17.5	11/32	26.2	1-1/4	32	20.94
7004012	3/8	9.53	7/16	11.11	27/32	22.23	3/4	19.1	15/32	29.4	1-7/16	36	28.18
7004013	7/16	11.11	1/2	12.7	1	25.4	15/16	23.8	17/16	36.5	1-11/16	42	52
7004014	1/2	12.7	9/16	14.29	1-1/8	28.58	1-1/16	27	15/8	41.3	2	50	80.15
7004015	9/16	14.29	5/8	15.88	1-1/4	31.75	1-1/8	28.3	13/4	44.5	2-1/8	54	99.88
7004016	5/8	15.88	11/16	17.46	1-3/8	34.93	1-1/4	31.8	1-15/16	49.2	2-1/2	64	139.78
