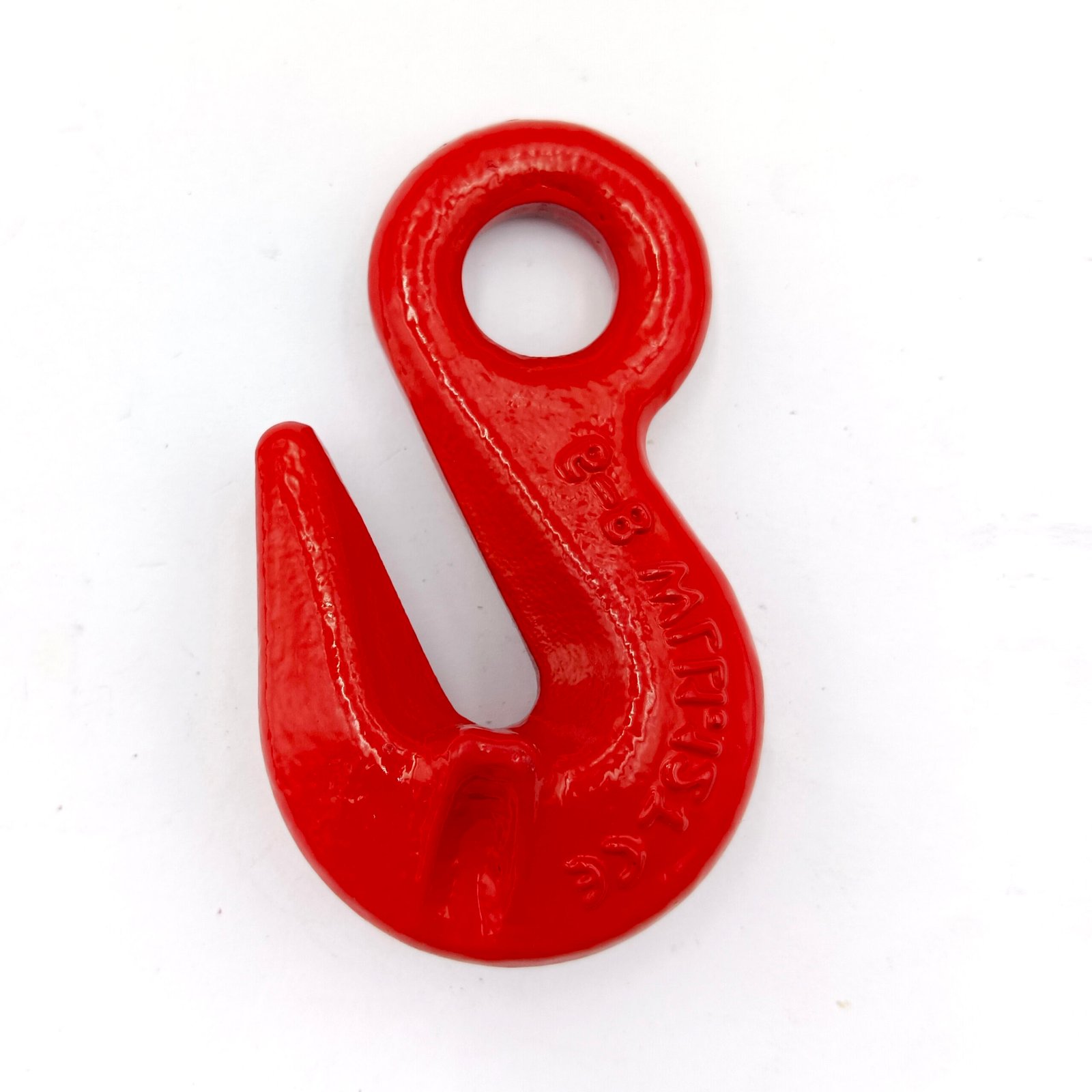

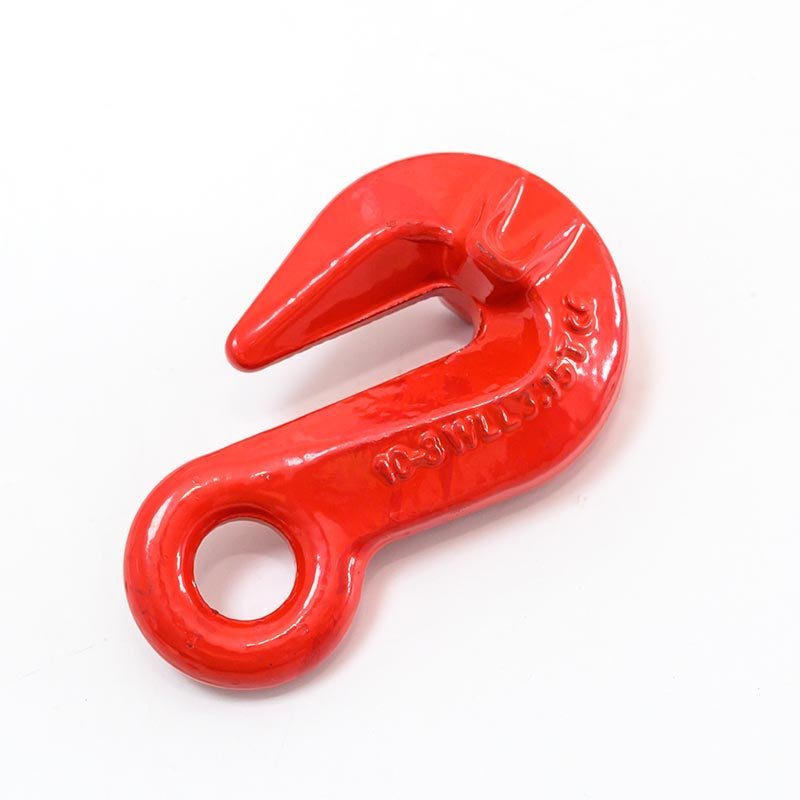

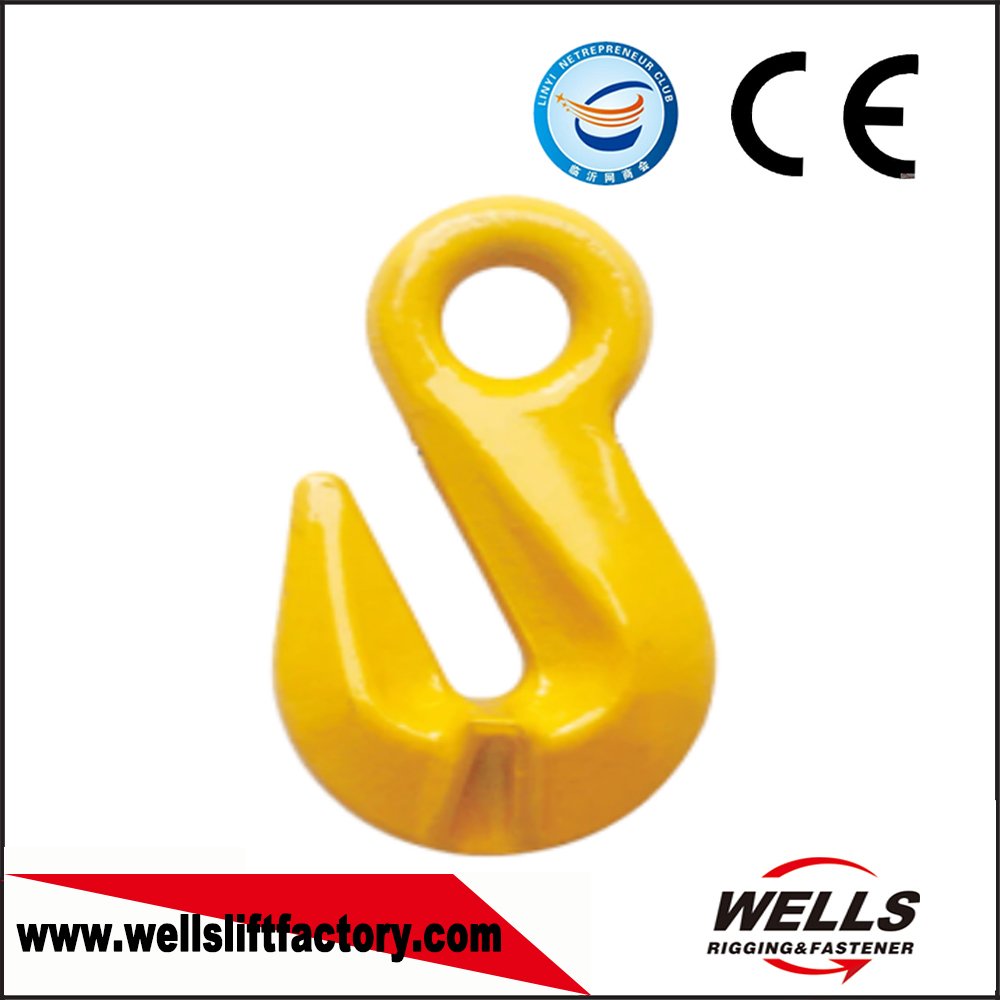

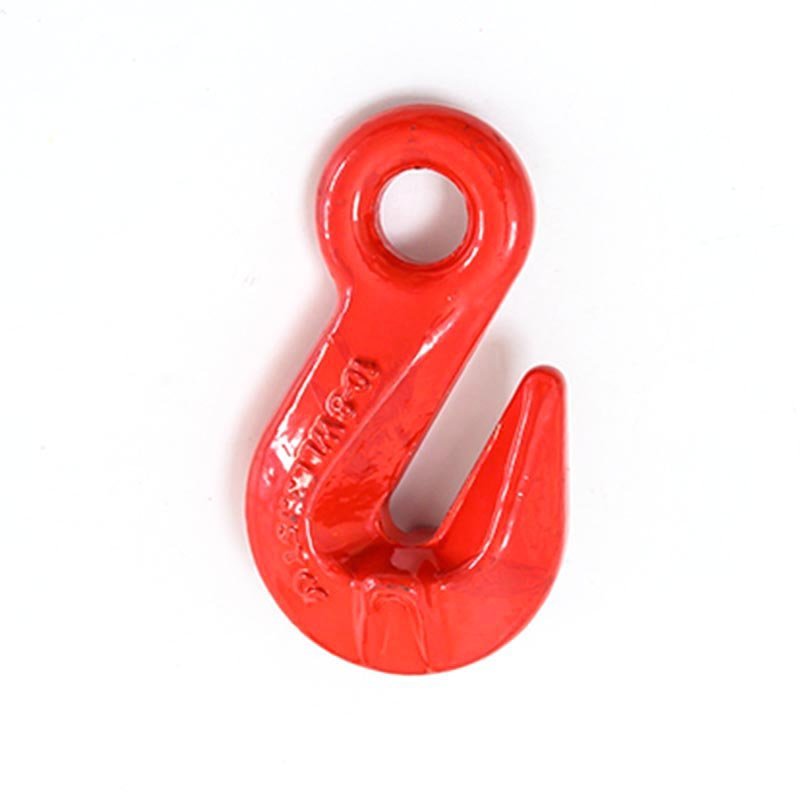

G80 Alloy Steel Eye Type Shortening Grab Hook with Wings

Grade 80 Eye Type Shortening Grab Hook

1. Forged alloy steel – quenched and tempered.
2. Suitable for EN818-2 G80 Chain.
3. Breakage Test.
4. Ultimate load is 4 times the Working Load Limit.
5. Above Working Load Limit is based on side pull.
6. Do not acceed the Working Load Limit during usage.

分类： Hooks

ITEM NO.mm	WEIGHT/KG	WLLT	B.L/T	E+0.5	D±1	H±1	R±2	L±2
6	0.14	1.12	4.48	8	13.5	17.9	51.4	75.3
7/8	0.245	2	8	10.8	18	20	61.5	91.2
10	0.65	3.15	12.6	13	20	29	80	122
13	1.39	5.3	21.2	16.5	26	42.8	99.7	158
16	2.2	8	32	20	30.5	47.7	104	169
20	4.6	12.5	50	25	37.5	56	140	219
22	8.2	15	60	28	44	68	165	259
26	9.8	21.2	84.8	30	44	77	188.8	298
32	19.4	31.5	126	38	57	95	228	361
