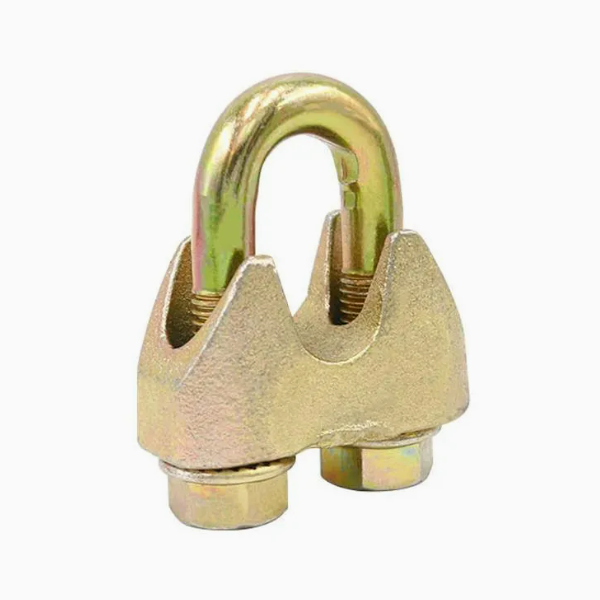

DIN1142 MALLEABLE WIRE ROPE CLIPS

DIN1142 MALLEABLE WIRE ROPE CLIPS - Image 2

Wire Rope Clips

DIN1142 MALLEABLE WIRE ROPE CLIPS

Made of yellow zinc-plated steel.

Size: M5-M40

DIN1142 cable clamps, designed for durable fastening of cables, ropes or chains.

Can be used in conjunction with other accessories such as thimbles.

Category: Wire Rope Clips

Description
Reviews (0)

ltem no	Size	A	B	C	D	E	F	G
ltem no	mm	mm	mm	mm	mm	mm	mm	mm
5005001	5	12	13	25	5	13	13	25
5005002	6.5	14	16	30	6	14	17	32
5005003	8	18	20	39	8	18	20	41
5005004	10	20	20	40	8	21	24	46
5005005	13	27	28	55	12	29	30	64
5005006	16	32	32	64	14	35	35	76
5005007	19	36	32	68	14	40	36	83
5005008	22	40	34	74	16	44	40	96
5005009	26	46	38	84	20	51	50	111
5005010	30	54	41	95	20	59	55	127
5005011	34	60	45	105	22	67	60	141
5005012	40	68	49	117	24	77	65	159
