US TYPE GALV MALLEABLE WIRE ROPE CLIPS

US TYPE GALV MALLEABLE WIRE ROPE CLIPS - Image 2

Wire Rope Clips

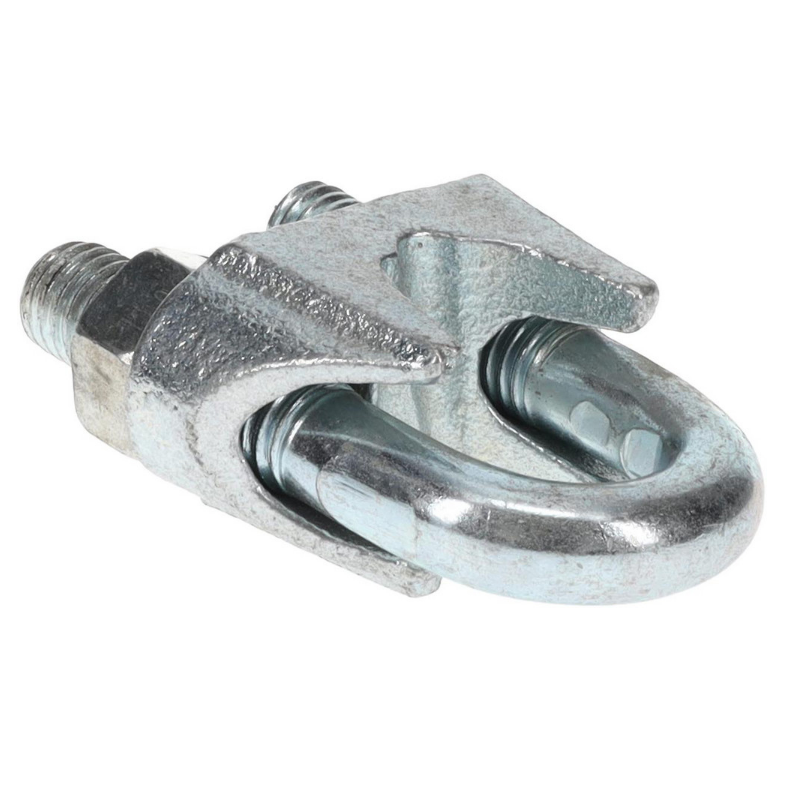

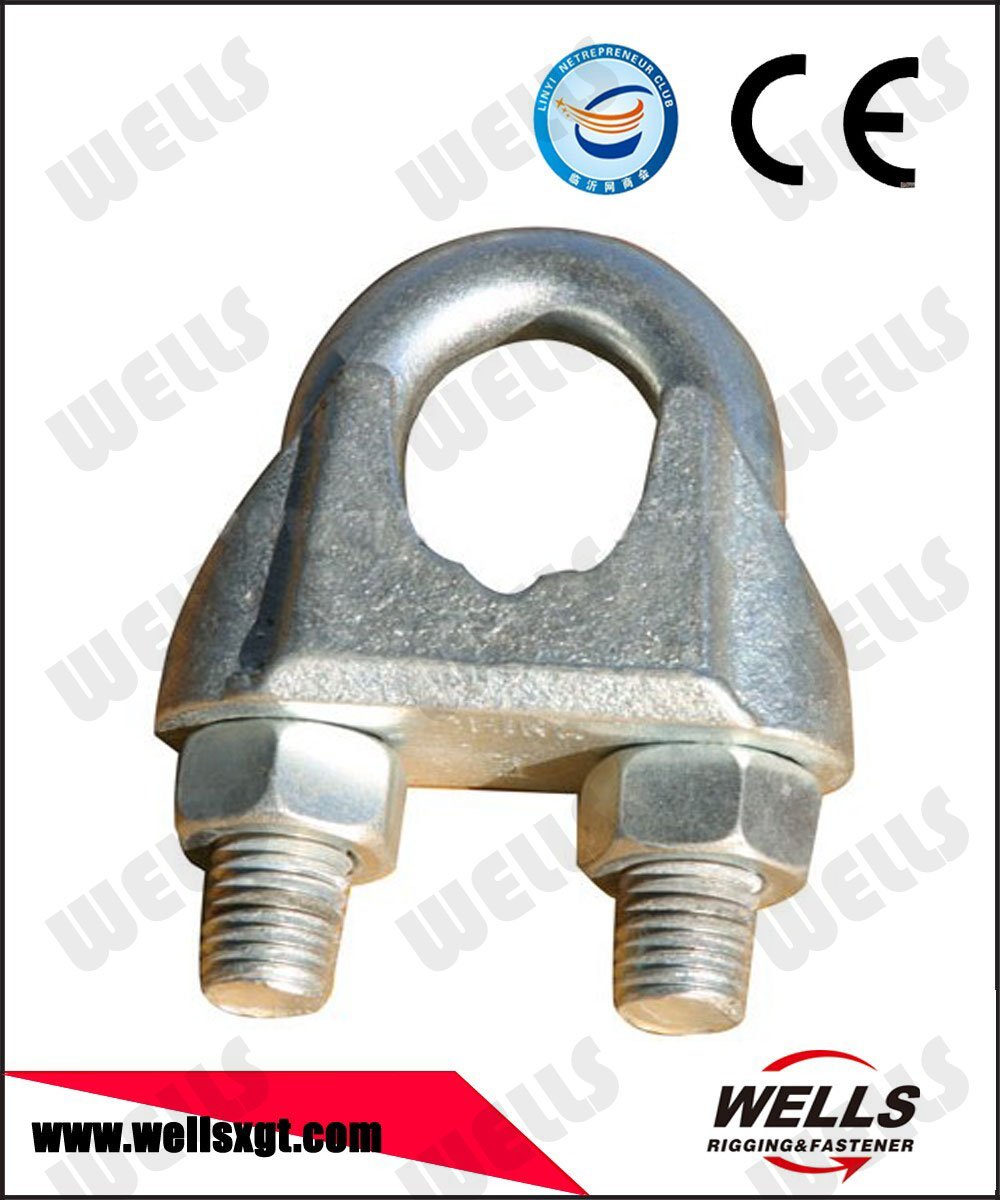

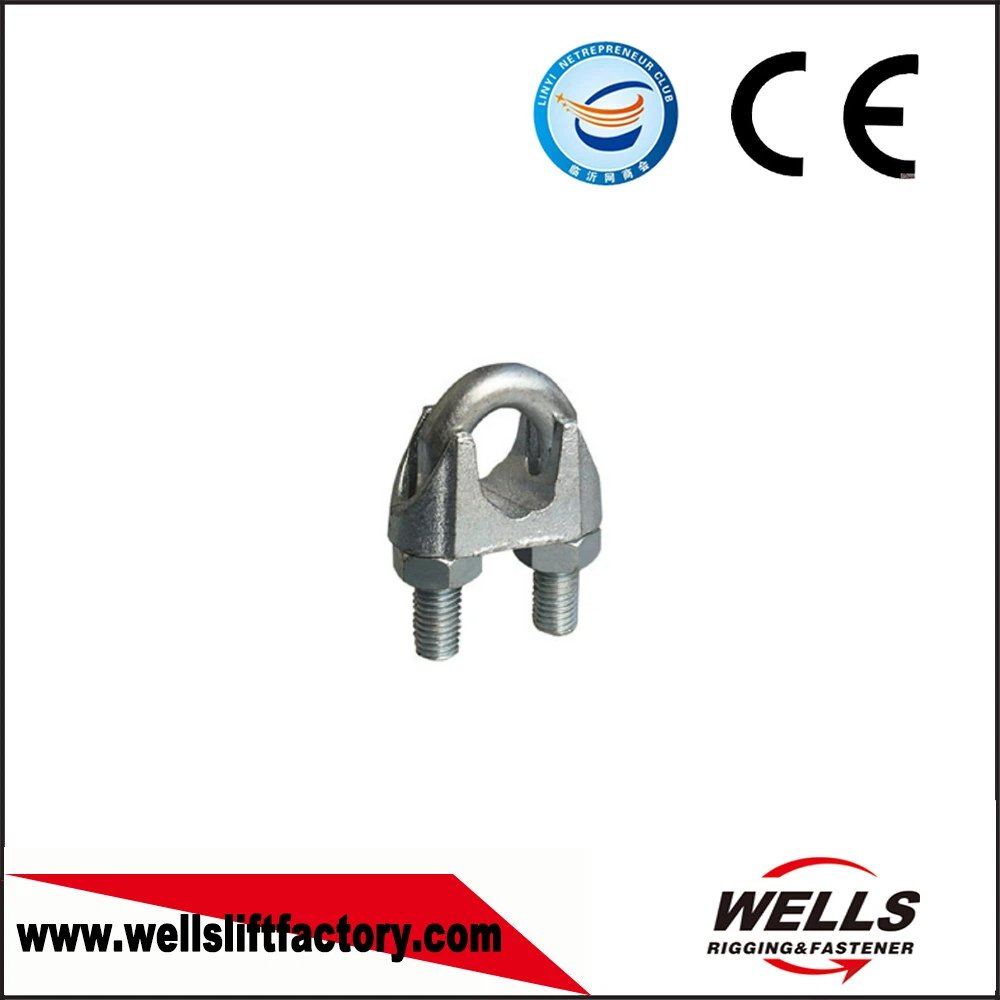

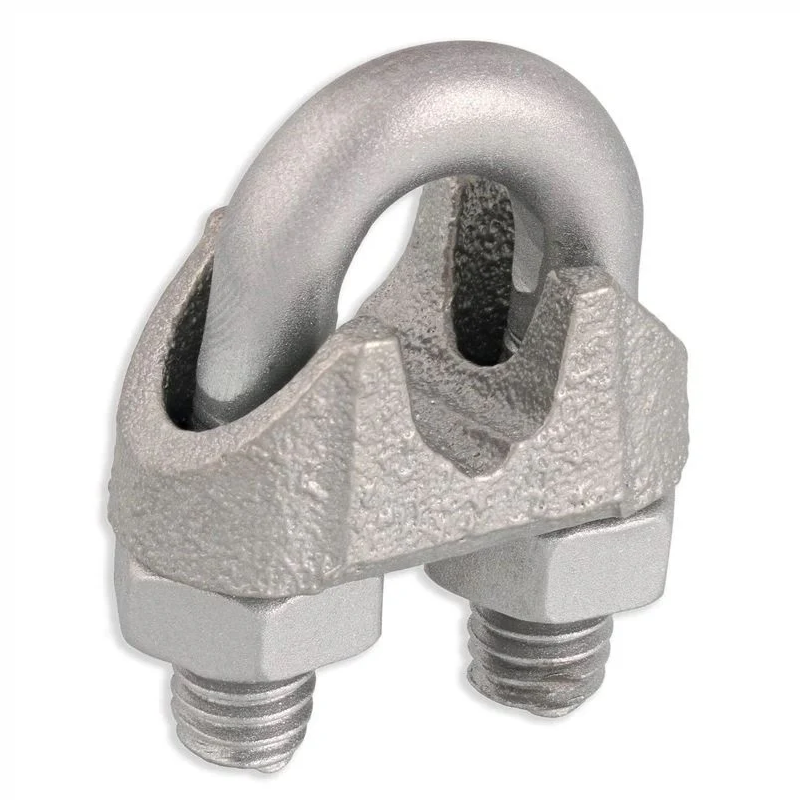

US TYPE GALV MALLEABLE WIRE ROPE CLIPS

—U-shaped bolts with saddles and bolts on either side

—Used to help keep wire rope or cable in place

—Essential hardware item for rigging rope, wire and cable

—Constructed of malleable steel with a zinc plated finish

—Great for forming a loop end for temporary cables and wire rope

Category: Wire Rope Clips

Description
Reviews (0)

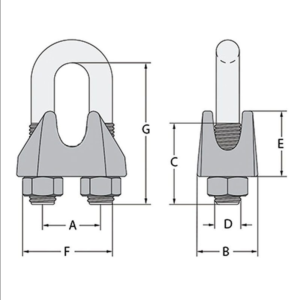

ltem no	Size	A	B	C	D	E	F	C	Weght/kg per 100pcs
ltem no	in	A	B	C	D	E	F	C	Weght/kg per 100pcs
5002001	1/8	12.7	12	12	10-24	11	23	20	1.9
5002002	3/16	14	14	15	1/4-20	12	26	24	3
5002003	1/4	17	19	19	5/16-18	15	34	30	5.9
5002004	5/16	17	21	22	5/16-18	16	34	30	6.4
5002005	3/8	22	22	25	3/8-16	19	41	41	9.8
5002006	7/16	22	25	25	3/8-16	22	41	41	10.5
5002007	1/2	25	26	31	7/16-14	25	47	50	16.4
5002008	9/16	28	31	37	1/2-13	30	55	55	17.3
5002009	5/8	30	33	37	1/2-13	31	55	58	25.4
5002010	3/4	34	39	41	9/16-12	33	61	63	37.7
5002011	7/8	41	47	46	5/8-11	44	69	77	62.6
5002012	1	41	50	52	5/8-11	52	77	85	68
