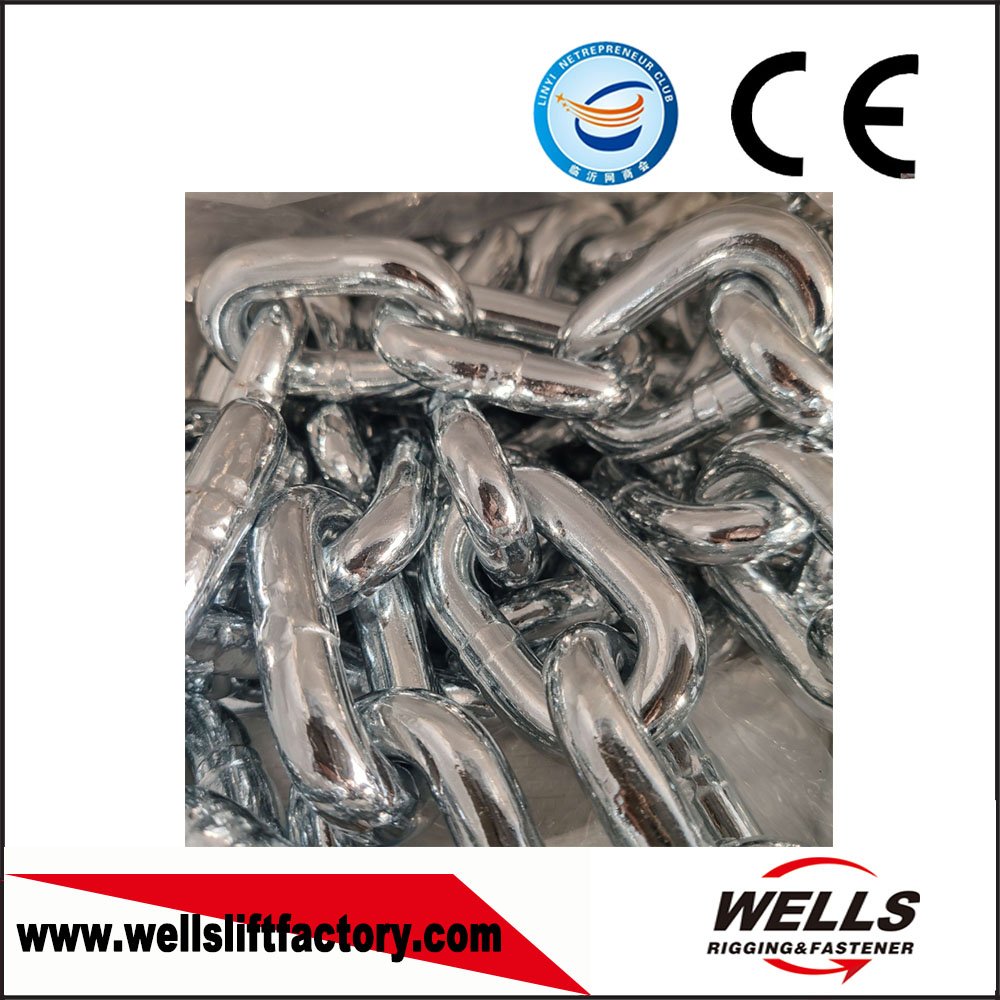

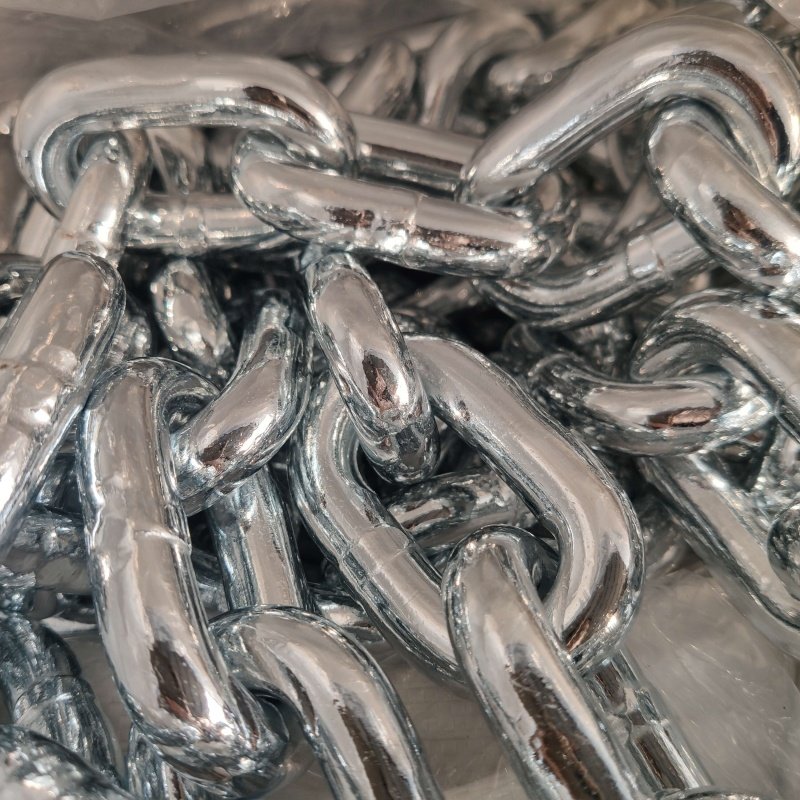

ORIDINARY MILD STEEL SHORT LINK CHAIN
| Product Name | Oridinary mild/british standard steel short link chain |
| Material | Sainless Steel or Carbon Steel |
| Structure | Welded |
| Size | 1/8″~1″ |
| Type & Grade | G30 |
| Standard | british standard |
| Surface Treatment | Self colored, electric galvanized, hot dip galvanized |
| Packing | Gunny bag, Woden bag, Plastic reel+carton, Plastic drum, Steel drum, any other package request as request. |
ORIDINARY MILD STEEL SHORT LINK CHAIN
| Link Specification | Test Load | Breaking Load | Net WT PER 200FT (KG) | ||||
| D | L(inside length) | W(outside width) | |||||
| in | mm | mm | mm | kg | kg | B.F | H.D.G |
| 1/8 | 3.2 | 16 | 12 | 200 | 400 | 11.4 | 11.74 |
| 5/32 | 4 | 18.5 | 14.5 | 300 | 600 | 18.6 | 19 |
| 3/16 | 4.7 | 19 | 17 | 400 | 800 | 26.2 | 27 |
| 7/32 | 5.5 | 20 | 19 | 550 | 1100 | 36.8 | 38 |
| 1/4 | 6.35 | 22 | 21 | 750 | 1500 | 50 | 51.5 |
| 5/16 | 7.94 | 26.5 | 27.2 | 1200 | 2400 | 80 | 82.4 |
| 3/8 | 9.5 | 30 | 32 | 1700 | 3400 | 122 | 125.7 |
| 7/16 | 11.11 | 34 | 36 | 2300 | 4600 | 164 | 169 |
| 1/2 | 12.7 | 39 | 43 | 3000 | 6000 | 210 | 216 |
| 5/8 | 15.8 | 45 | 53 | 4700 | 9400 | 334 | 344 |
| 3/4 | 19 | 55 | 63 | 6800 | 13600 | 485 | 499 |
| 7/8 | 22.2 | 64 | 74 | 9250 | 18500 | 656 | 675 |
| 1 | 25.4 | 73 | 84 | 12150 | 24300 | 870 | 896 |
