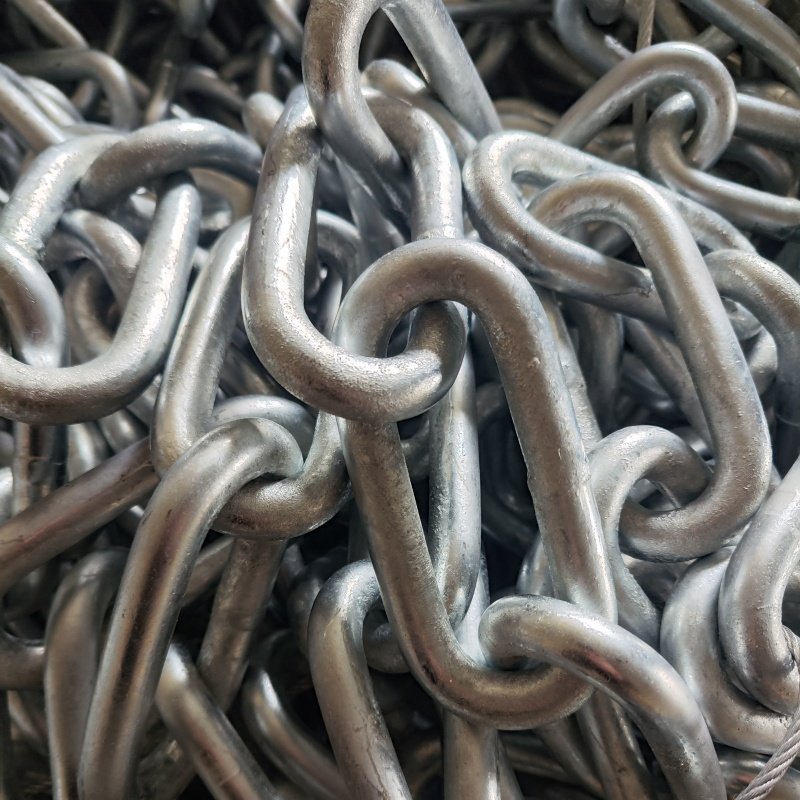

ORIDINARY MILD STEEL LONG LINK CHAIN
| Product Name | Oridinary mild/british standard steel long link chain |
| Material | Sainless Steel or Carbon Steel |
| Structure | Welded |
| Size | 1/8″~1″ |
| Type & Grade | G30 |
| Standard | british standard |
| Surface Treatment | Self colored, electric galvanized, hot dip galvanized |
| Packing | Gunny bag, Woden bag, Plastic reel+carton, Plastic drum, Steel drum, any other package request as request. |
ORIDINARY MILD STEEL LONG LINK CHAIN
| Link Specification | Test Load | Breaking Load | Net WT PER 200FT (KG) | ||||
| D | L (inside length) | W (outside width) | |||||
| in | mm | mm | mm | kg | kg | B.F | H.D.G |
| 1/8 | 3.2 | 23 | 12 | 200 | 400 | 10.4 | 10.7 |
| 5/32 | 4 | 27 | 15 | 300 | 600 | 16.6 | 17.5 |
| 3/16 | 4.7 | 31 | 17 | 400 | 800 | 22.4 | 23.3 |
| 7/32 | 5.5 | 32 | 19 | 550 | 1100 | 32 | 33 |
| 1/4 | 6.35 | 33 | 21 | 750 | 1500 | 43.5 | 44.8 |
| 5/16 | 7.94 | 48 | 31 | 1200 | 2400 | 68 | 70 |
| 3/8 | 9.5 | 60 | 37 | 1700 | 3400 | 96 | 99 |
| 7/16 | 11.11 | 71 | 41 | 2300 | 4600 | 126 | 129 |
| 1/2 | 12.7 | 85 | 48.5 | 3000 | 6000 | 167 | 172 |
| 5/8 | 15.8 | 114 | 61.5 | 4700 | 9400 | 256 | 264 |
| 3/4 | 19 | 125 | 75 | 6800 | 13600 | 381 | 392 |
| 7/8 | 22.2 | 140 | 88 | 9250 | 18500 | 527 | 543 |
| 1 | 25.4 | 155 | 100 | 12150 | 24300 | 696 | 716 |
