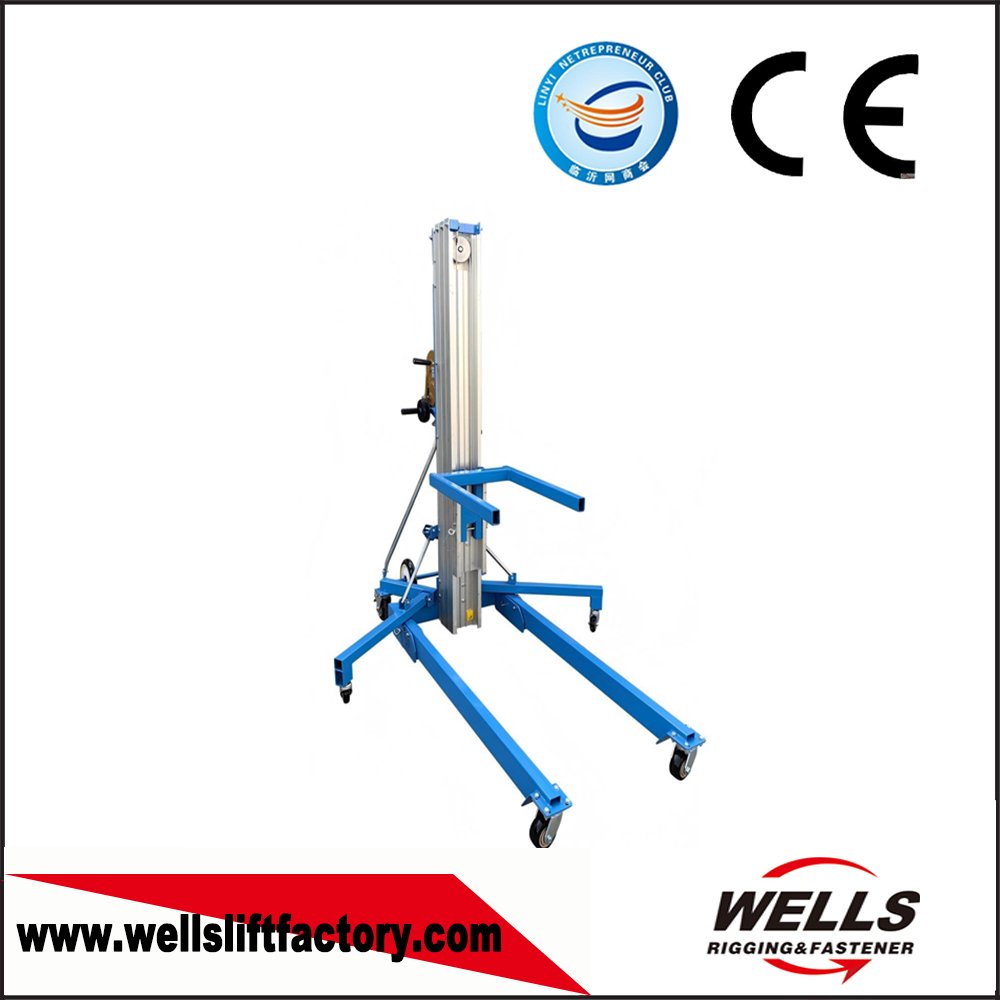

MATERIAL DUCT LIFTER are highly useful and versatile machines that make lifting materials to otherwise inaccessible heights an easy task. These lifts are engineered to provide an easy and efficient solution for transporting mater.
| 产品型号 Maximum Platform Height |
GTWY-3.5 | GTWY-5 | GTWY-6.5 | GTWY-7.9 |
| 平台最大高度 Maximum Platform Heightmm |
3500 | 5000 | 6500 | 7900 |
| 货叉尺寸 Dimension of platfom fork mm |
720*510 | 720*510 | 720*510 | 720*510 |
| 工作高度叉上装 Working high forktop mm |
3500 | 5000 | 6500 | 7900 |
| 工作高度叉下装 Working high fork bottom mm |
3000 | 4500 | 6000 | 7400 |
| 作业展开尺寸(L*W*H) Working length mm |
2030*1820*2010 | 2030*1820*2010 | 2030*1820*2010 | 2030*1820*2010 |
| 工作离地间隙 Ground ciearance mm |
40 | 40 | 40 | 40 |
| 工作负荷中心(40cm) Load Center kg |
400 | 350 | 300 | 250 |
| 工作负荷中心(60cm) Load Center kg |
350 | 300 | 250 | 200 |
| 工作负荷中心(80cm) Load Center kg |
250 | 250 | 200 | 150 |
| 贮藏尺寸(L*W*H) Storage length mm |
740*840*2050 | 740*840*2050 | 740*840*2050 | 740*840*2050 |
| 贮藏离地间隙 Ground ciearance mm |
70 | 70 | 70 | 70 |
| 整机重量 Machine weight kg |
160 | 180 | 200 | 220 |
| 移动方式 MODE OF MOVEMENT |
Manual | Manual | Manual | Manual |
