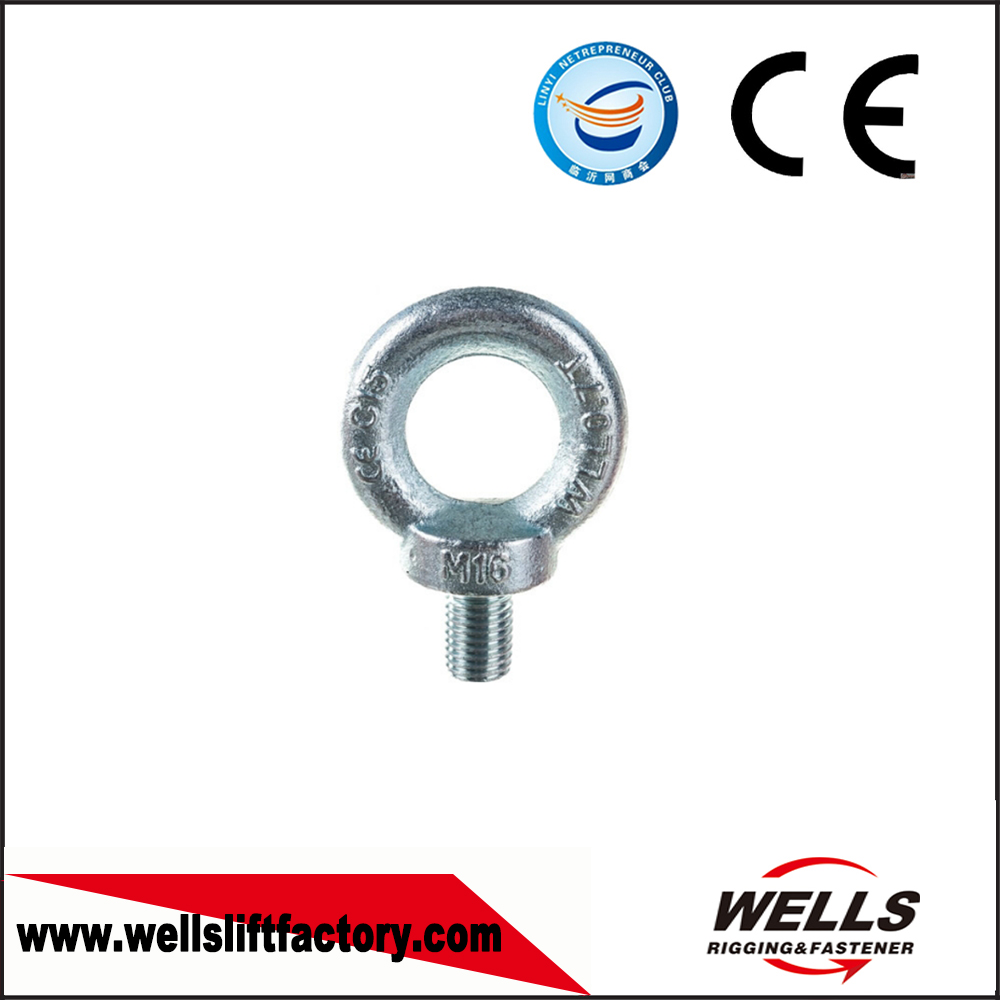

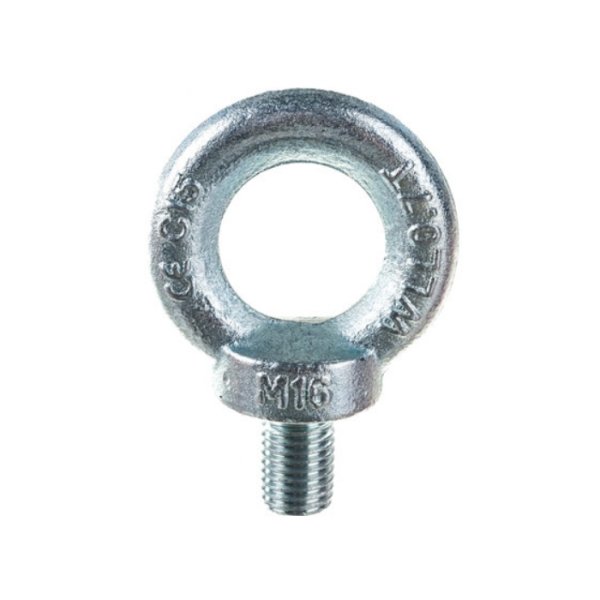

Lifting Eye Bolt DIN580
| Item no | Size | D | ∅ | H |
| mm | mm | mm | ||
| 4001001 | M6 | 36 | 20 | 36 |
| 4001002 | M8 | 36 | 20 | 36 |
| 4001003 | M10 | 45 | 25 | 45 |
| 4001004 | M12 | 54 | 30 | 53 |
| 4001005 | M14 | 63 | 35 | 62 |
| 4001006 | M16 | 63 | 35 | 62 |
| 4001007 | M18 | 72 | 40 | 71 |
| 4001008 | M20 | 72 | 40 | 71 |
| 4001009 | M22 | 81 | 45 | 80.5 |
| 4001010 | M24 | 90 | 50 | 90 |
| 4001011 | M27 | 96 | 53 | 97 |
| 4001012 | M30 | 108 | 60 | 109 |
| 4001013 | M33 | 108 | 60 | 109 |
| 4001014 | M36 | 126 | 70 | 128 |
| 4001015 | M42 | 144 | 80 | 147 |
| 4001016 | M48 | 166 | 90 | 168 |
