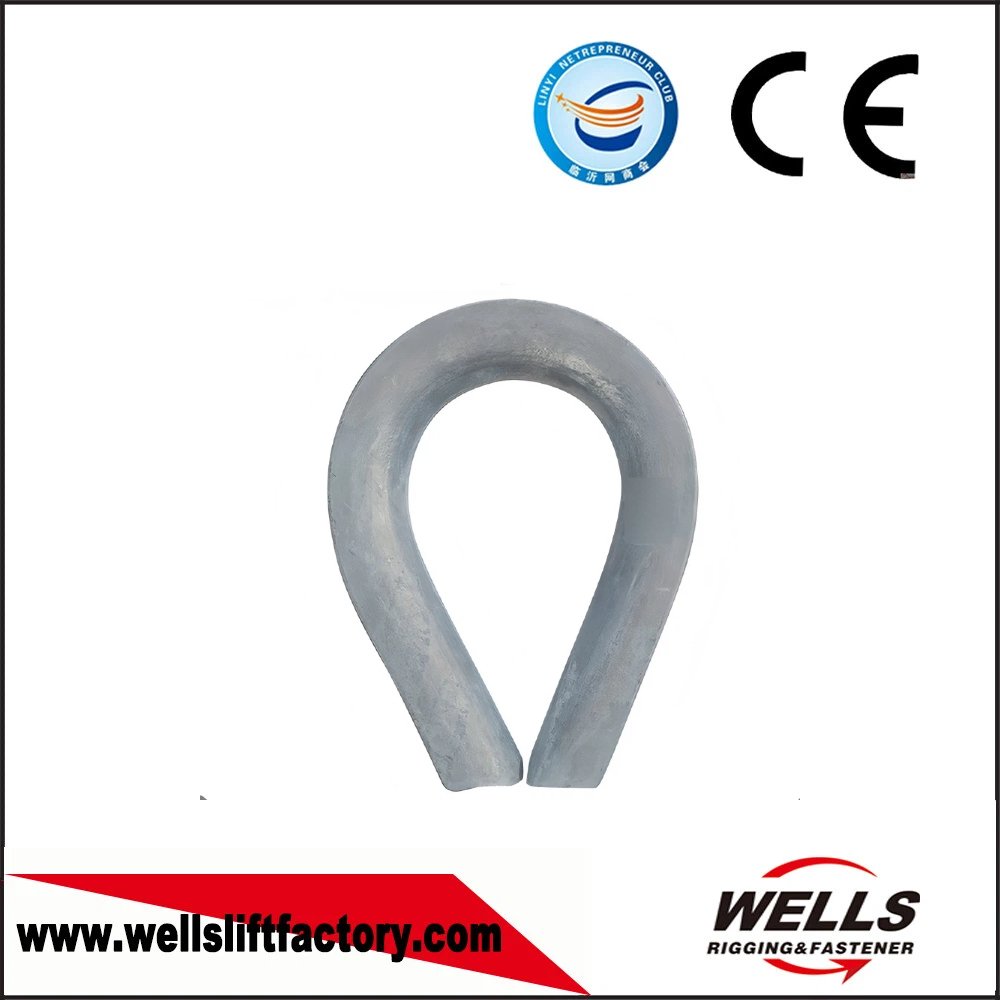

K2 THIMBLE

Material: Carbon Steel, AISI304/ AISI316 Stainless Steel
Finish: Zinc-plated, HDG, Polished or customized
Size: 3mm-45mm
Packing: Gunny bag, Carton
Application: Rigging for Wire Rope or Mooring Rope

分类： Thimble

描述
用户评价 (0)

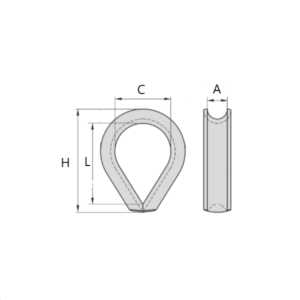

Item no	Size	A	C	H	L
Item no	mm	mm	mm	mm	mm
6004001	8	8	22	51	35
6004002	10	10	30	64	47
6004003	12	12	35	76	57
6004004	14	14	45	89	65
6004005	16	16	50	102	76
6004006	18	18	53	114	86
6004007	20	20	60	127	94
6004008	22	22	65	140	107
6004009	24	24	70	152	114
6004010	28	28	80	178	130
6004011	32	32	100	202	157
6004012	36	36	115	229	177
6004013	40	40	120	254	198
6004014	44	44	130	279	214
6004015	50	50	140	305	215
6004016	56	56	160	356	245
6004017	64	64	180	407	275
