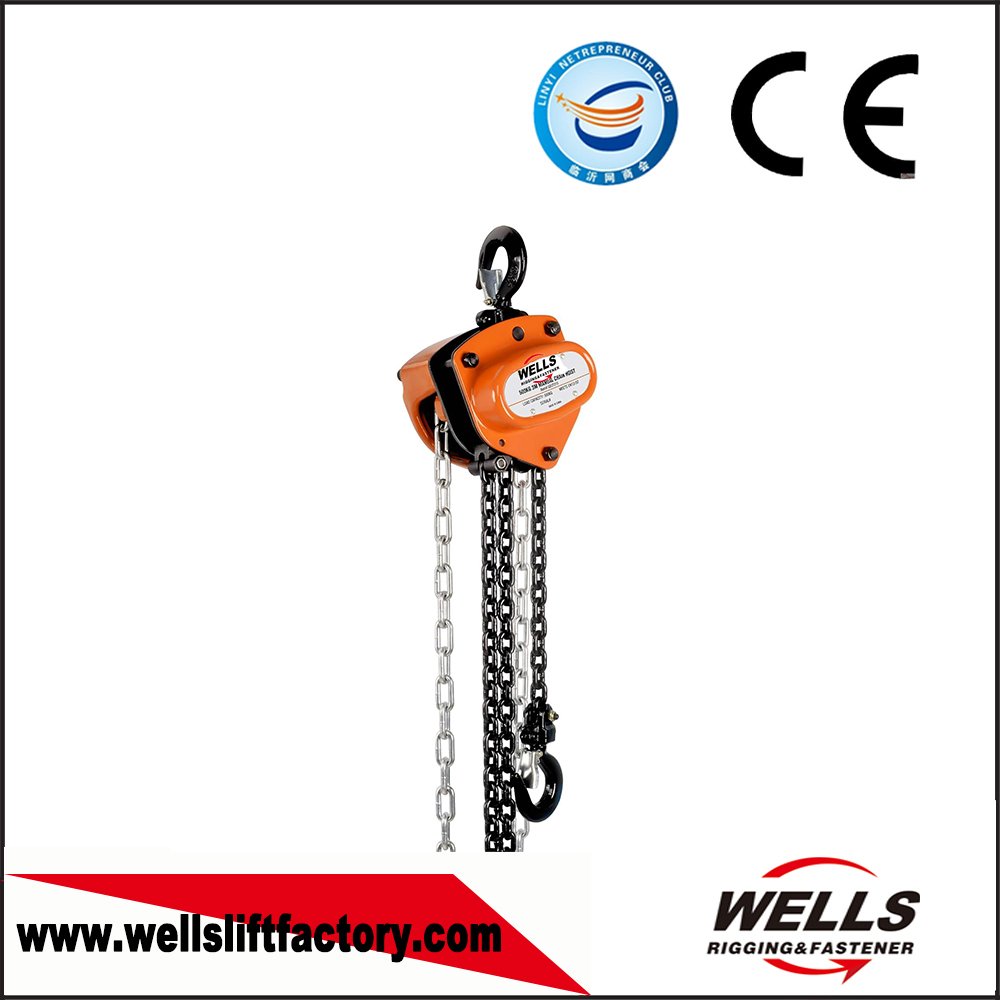

HS-C Type Manual Chain Hoist Block
| 型号Model | HSC-1/2 | HSC-1 | HSC-2 | HSC-3 | HSC-5 | HSC-10 | HSC-20 |
| 起重量Capacity(t) | 0.5 | 1 | 2 | 3 | 5 | 10 | 20 |
| 起升高度 Lifting Height(m) |
2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| 试验载荷 Test load(t) |
0.75 | 1.5 | 3 | 4.5 | 7.5 | 15 | 25 |
| 起重链数量 No.of load chain |
1 | 1 | 2 | 2 | 2 | 4 | 8 |
| 起重链直径 Diameter of load chain |
6 | 6 | 6 | 8 | 10 | 10 | 10 |
| 净重N.W(kg) | 8 | 10 | 14 | 24 | 36 | 68 | 68 |
1. Automatic double pawls braking system.
2. Brand light weight robust construction.
3. Low effort to lift maximum load.
4. Fully alloy steel forged hooks.
5. Fully machines lift wheel.
6. ISO high grade alloy chain.
7. Zinc plated hand chain as standard.
8. Double cover protection.
9. Durable baked enamel paint protection.
10. Overload protection device available upon request.
