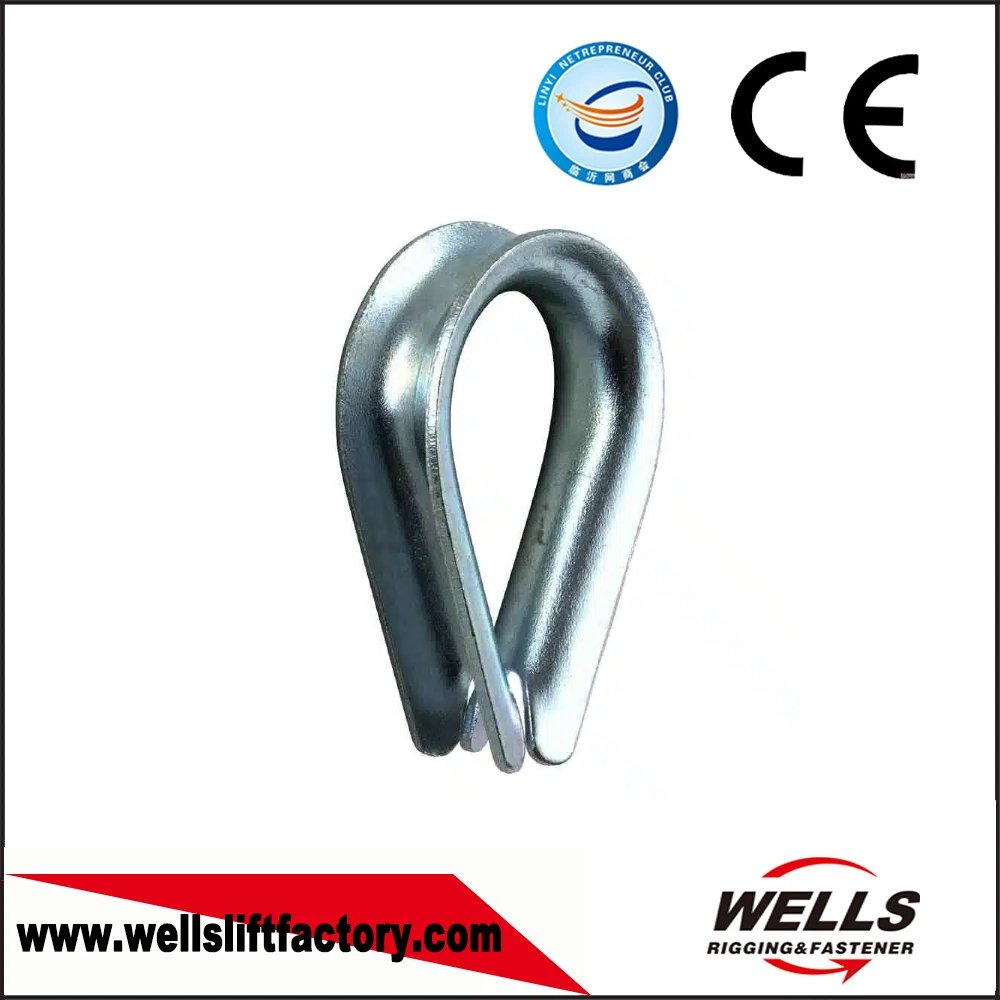

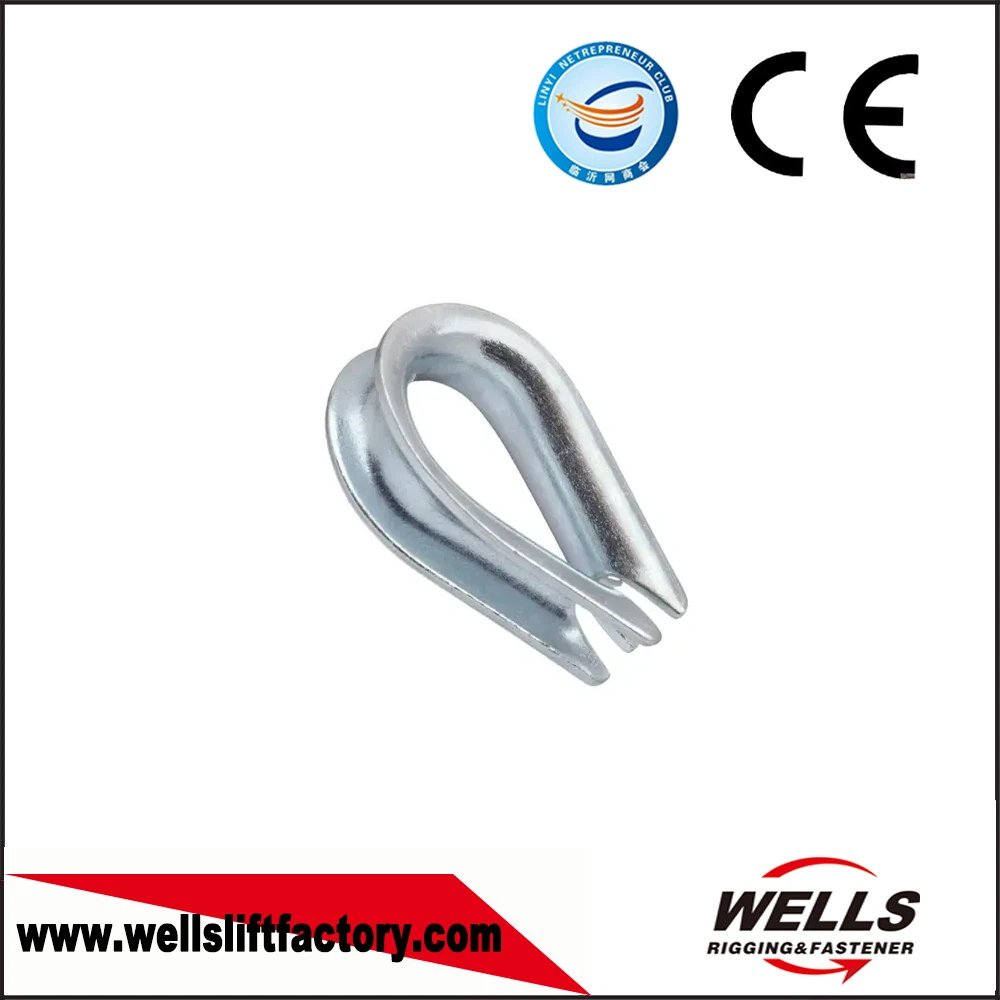

DIN6899A THIMBLE

Material: Carbon Steel, AISI304/ AISI316 Stainless Steel
Finish: Zinc-plated, HDG or customized
Size: 1.8mm-26mm
Packing: Gunny bag, Carton
Application: Rigging for Wire Rope or Mooring Rope

Category:

Item no Size B D H
mm mm mm mm
6002001 1.8 2 8 17.5
6002002 2 2.5 9 19.5
6002003 2.5 3 10 21.5
6002004 3 3.5 11 23.5
6002005 3.5 4 12 26.5
6002006 4 5 13 28.5
6002007 5 6 14 30
6002008 6 7 15 33
6002009 7 8 16 35
6002010 8 9 18 39
6002011 9 10 20 43
6002012 10 11 22 47.5
6002013 11 12 24 51.5
6002014 12 13 26 56.5
6002015 13 14 28 61
6002016 15 16 32 69.5
6002017 16 19 35 78
6002018 18 20 40 86.5
6002019 20 22 44 95
6002020 24/26 26 48 105
