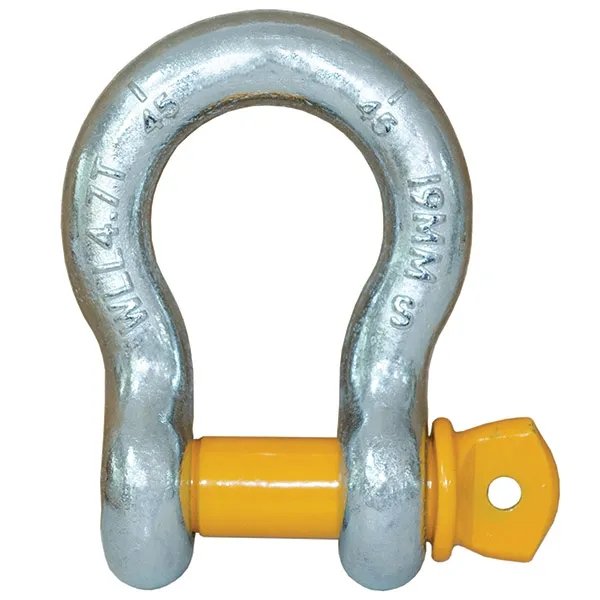

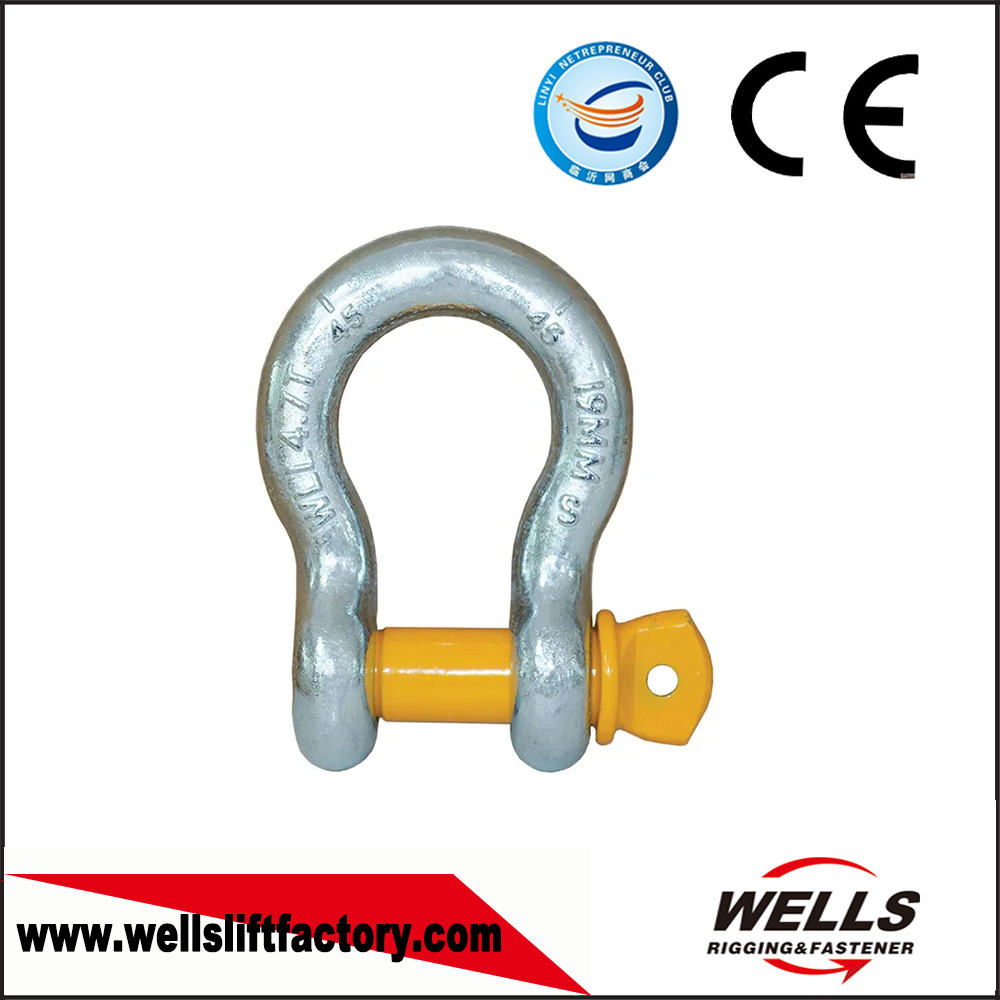

Grade S Bow Shackle With Screw Pin AS2741

Grade S Bow Shackle With Screw Pin AS2741

Hot Dipped Galvanized, Electro Galvanized

Body Forged Carbon Steel, and Pin Forged Alloy Steel.

Test load is 2.2 times Working Load Limit.

Ultimate Load is 6 times working Load Limit.

分类：

Grade S Bow Shackle With Screw Pin AS2741

Item
no		 Size SWL D d B H
tons mm mm mm mm
2103001 6 0.5 6 8 12 29
2103002 8 0.75 8 10 13 31
2103003 10 1 10 11 17 37
2103004 11 1.5 11 13 18 43
2103005 13 2 13 16 21 48
2103006 16 3.2 16 19 27 61
2103007 19 4.7 19 22 32 72
2103008 22 6.5 22 25 37 84
2103009 25 8.5 25 29 43 95
2103010 29 9.5 29 32 46 108
2103011 32 12 32 35 52 119
2103012 35 13.5 35 38 57 133
2103013 38 17 38 41 60 146
2103014 44 25 44 51 73 178
2103015 51 35 51 57 83 197
2103016 63 55 63 70 105 267
