Product Description

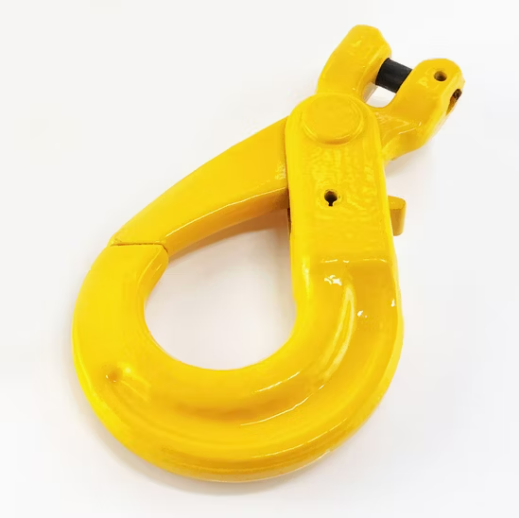

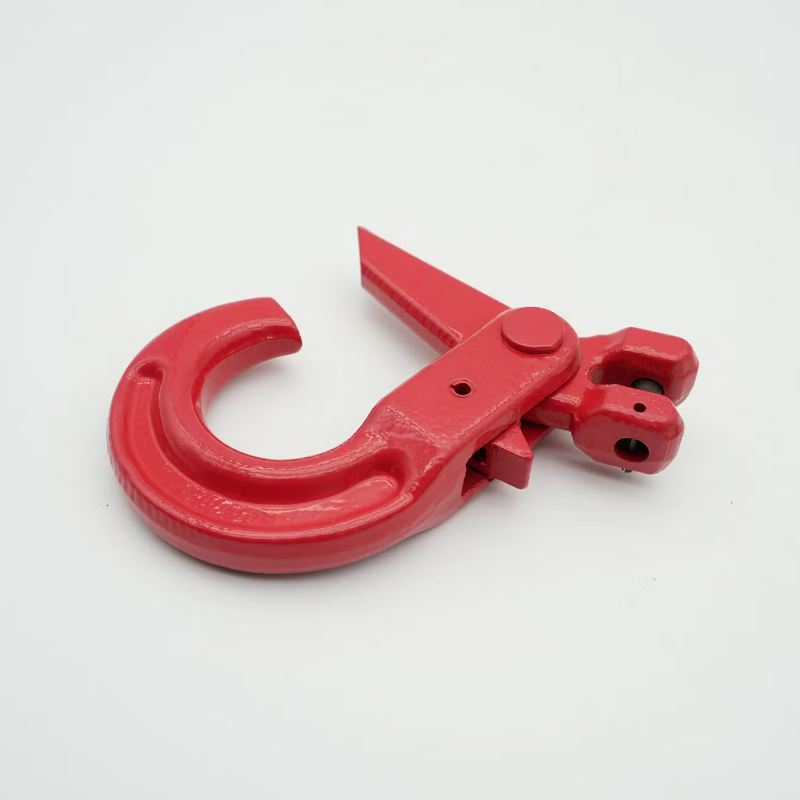

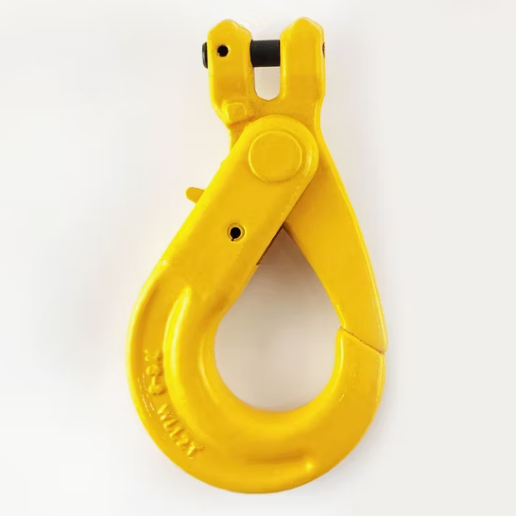

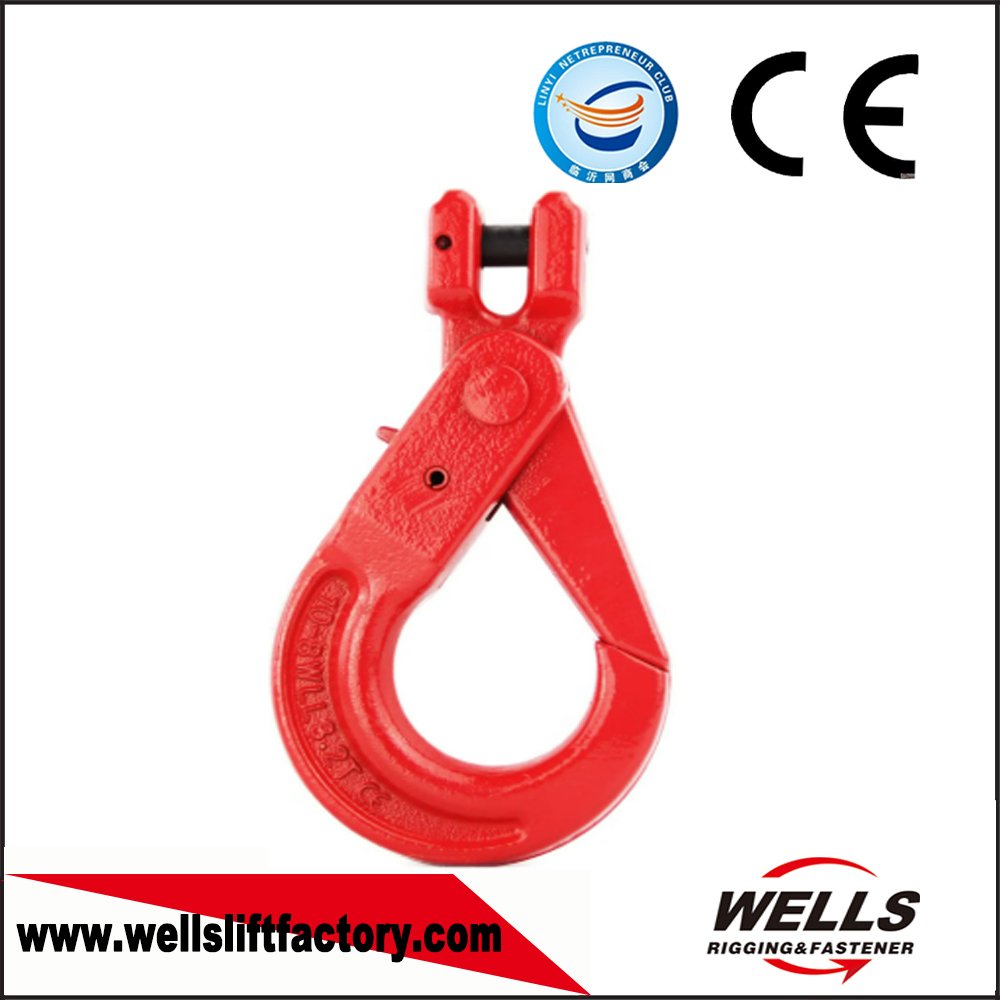

G80 Forged Alloy Steel revised type Clevis self-locking Hook
– Surface treatment: WLL, Size, Grade, CE, Batch No.
– Application: Used in connecting operation
– Special specification and marks can be made according to customers
– Packing: Packed in cartons with plastic bags inside on iron pallets
– B. L= 4 times*WLL
– full tracebility
– Proof tested to 2 ½ Times working load limit
Product Parameters

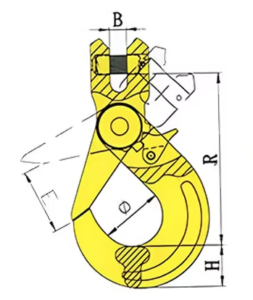

| SIZE | WEIGHT/KG | WLL.T | B.L/T | E | B | H | φ | R |
| 6 | 0.5 | 1.12 | 4.48 | 29 | 8.5 | 19.5 | 34 | 95.5 |
| 7/8 | 0.8 | 2 | 8 | 34 | 9.5 | 24 | 46 | 121 |
| 10 | 1.5 | 3.15 | 12.8 | 44 | 12 | 28.5 | 56 | 146 |
| 13 | 2.8 | 5.3 | 21.2 | 52 | 15 | 40 | 69 | 182 |
| 16 | 5.6 | 8 | 32 | 60 | 18 | 50.5 | 86 | 218 |
| 20 | 7.5 | 12.5 | 50 | 83 | 25 | 55 | 100 | 240 |
| 22 | 11.5 | 15 | 60 | 88 | 25.5 | 67 | 98 | 276.5 |
| 26 | 18.5 | 21.2 | 84.8 | 95.5 | 30 | 75 | 110 | 310.5 |
