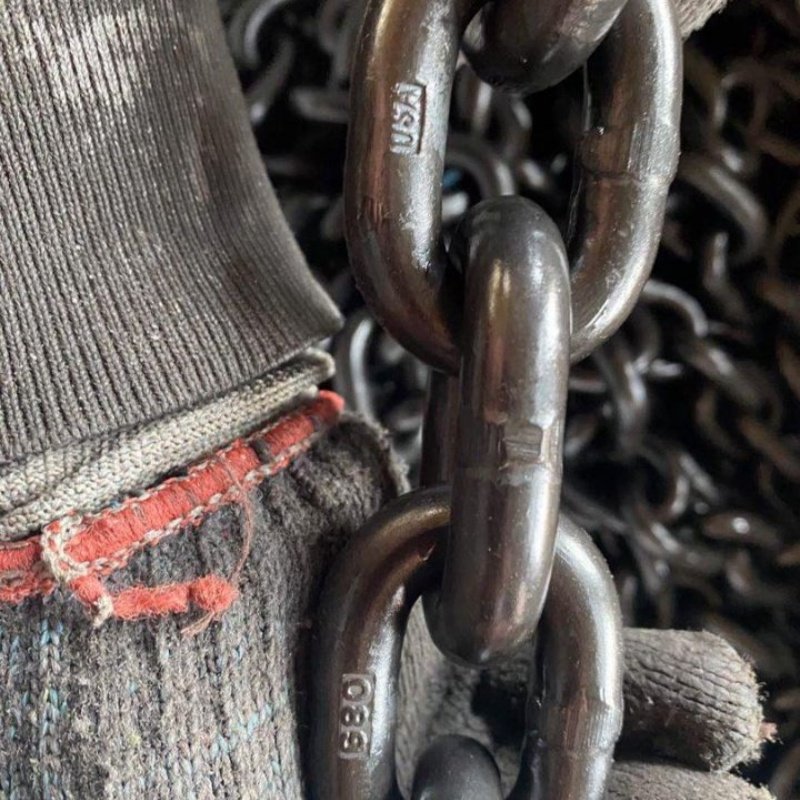

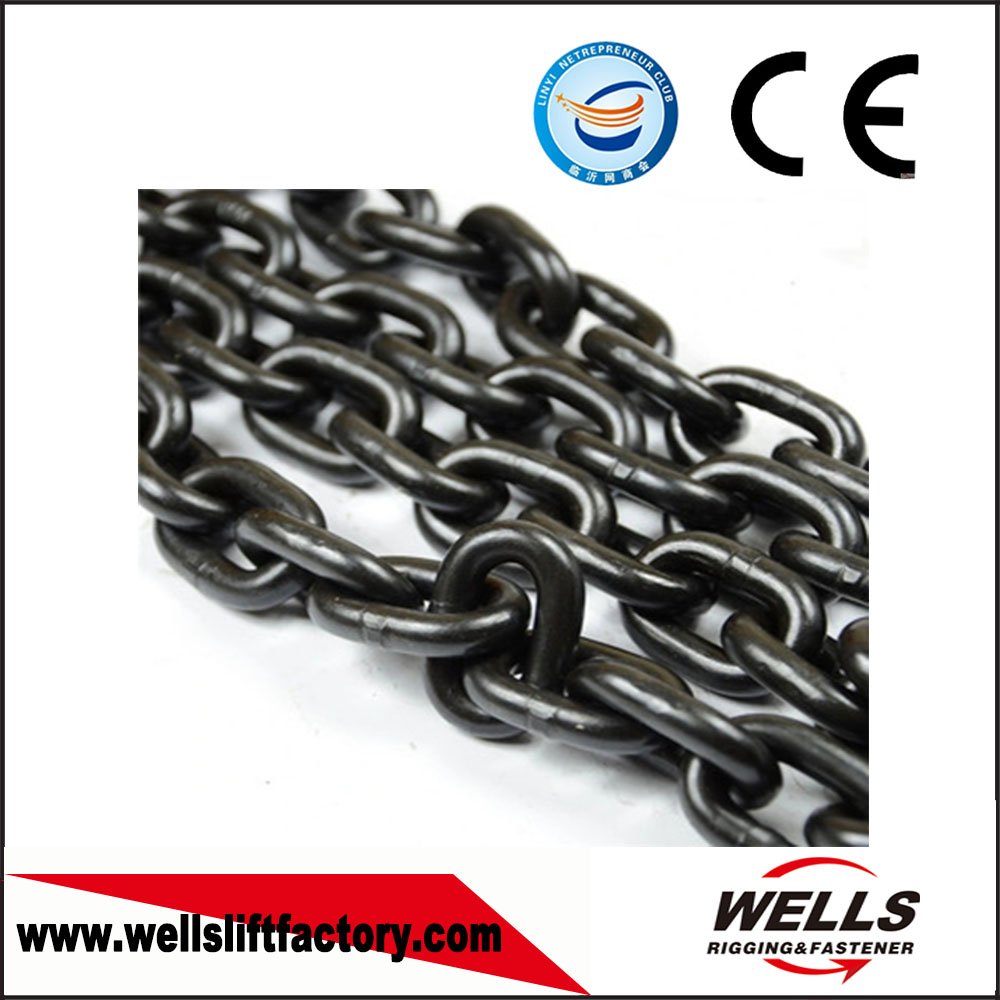

G80 LIFTING CHAIN
| Product Name | G80 LIFTING CHAIN |
| Material | 20Mn2 |
| Technology | Hot dip glvanized |
| Size | 6mm~32mm |
| Type & Grade | G80 |
| Standard | G80 standard |
| Surface Treatment | Self colored, electric galvanized, black oiled, black painted, Electrophoresis etc. |
| Packing | Ton bag, Plastic drum, Steel drum, any other package request as request. |
Specification Sheet:
| Size | Width|(mm) | Approx Weight | Working Load Limit | Test Load | Breaking Load MIN | |
| DXC | Inside MIN | Outside MAX | ||||
| mm | A | B | kg/m | tons | kn | kn |
| 6×18 | 7.5 | 21 | 0.79 | 1.1 | 27 | 45.2 |
| 7×21 | 9 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
| 8×24 | 10 | 28 | 1.38 | 2 | 48 | 80.4 |
| 10×30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 125 |
| 12×36 | 15 | 42 | 3.1 | 4.6 | 109 | 181 |
| 13×39 | 16.3 | 46 | 3.8 | 5 | 128 | 214 |
| 14×42 | 18 | 49 | 4.13 | 6.3 | 150 | 250 |
| 16×48 | 20 | 56 | 5.63 | 8 | 192 | 320 |
| 18×54 | 23 | 63 | 6.85 | 10 | 246 | 410 |
| 20×60 | 25 | 70 | 8.6 | 12.5 | 300 | 500 |
| 22×66 | 28 | 77 | 10.2 | 15.3 | 366 | 610 |
| 26×78 | 35 | 91 | 14.87 | 21.3 | 510 | 850 |
| 32×96 | 40 | 106 | 22.29 | 32.2 | 772 | 1286 |
