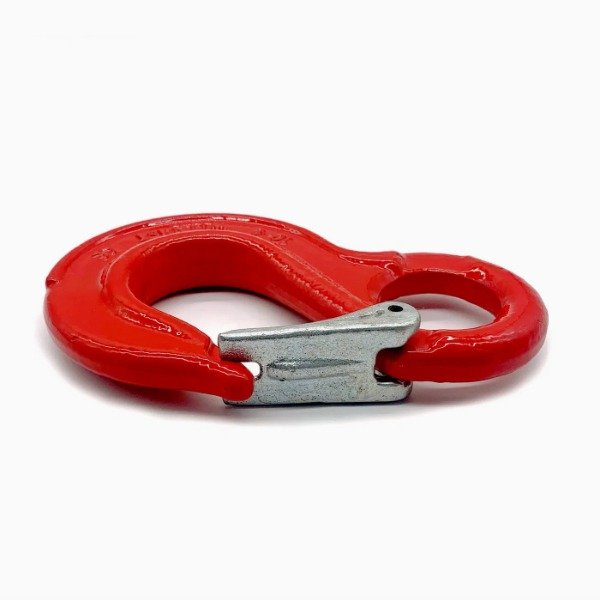

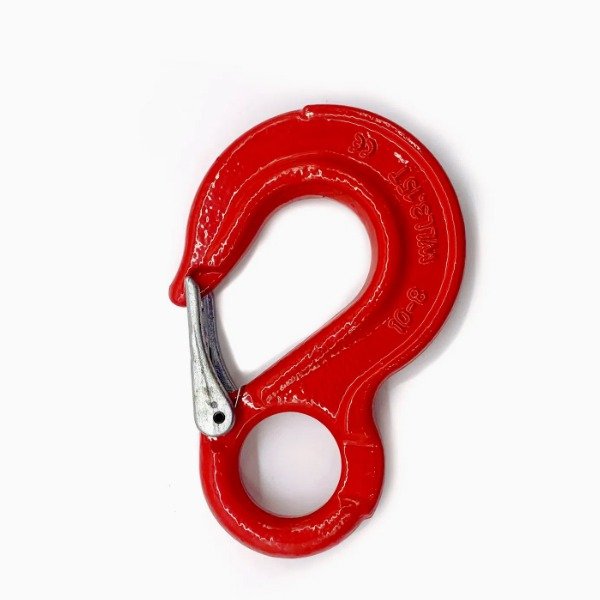

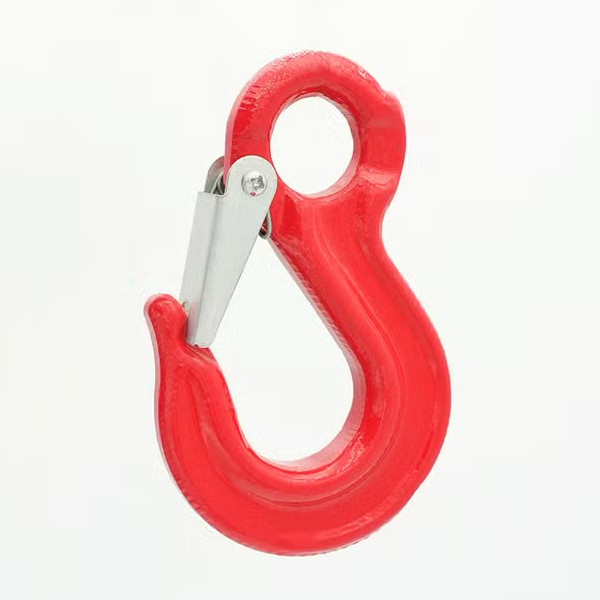

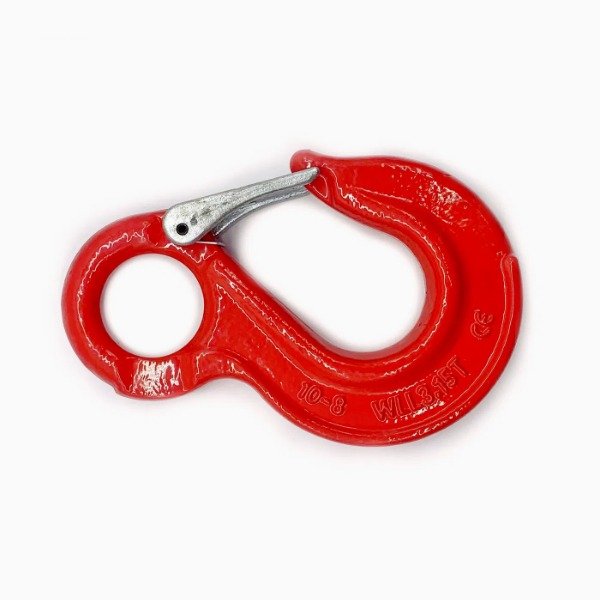

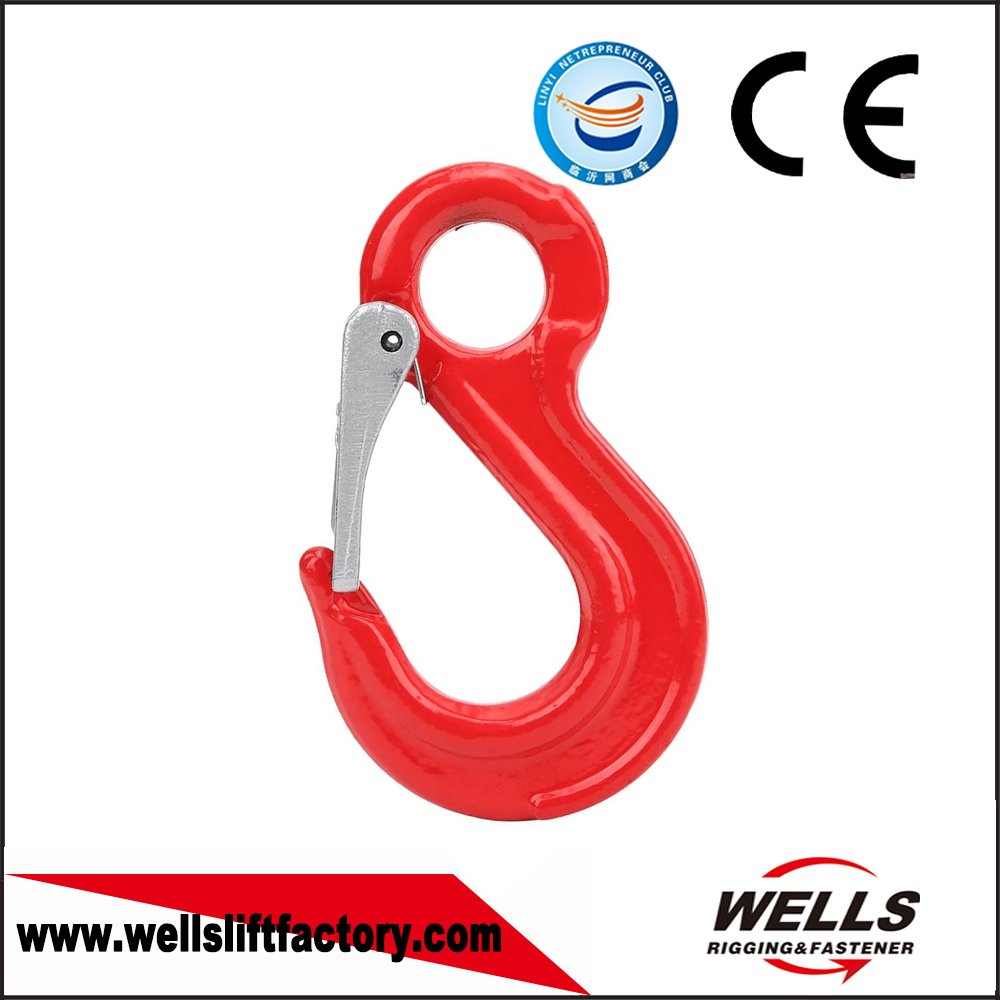

G80 Forged Alloy Steel with Latch Eye Sling Hook

G80 Forged Alloy Steel Eye sling Hook

– Surface treatment: WLL, Size, Grade, CE, Batch No.
– Application: Used in connecting operation
– Special specification and marks can be made according to customers
– Packing: Packed in cartons with plastic bags inside on iron pallets
– B. L= 4 times*WLL
– full tracebility
– Proof tested to 2 ½ Times working load limit

Category: Hooks

Product Parameters

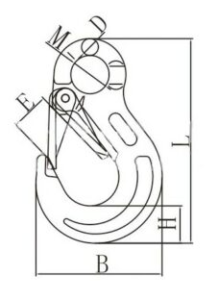

SIZE	W.L.L.	B.L.	Dimension (mm)					N.W. (kg/pc)
SIZE	(t)	(t)	B	E	D	D	L	N.W. (kg/pc)
6-8	1.12	4.48	9	21.5	20	20	108	0.3
7/8-8	2	8	11	27.5	24	25	133	0.4
10-8	3.15	12.6	15	27.5	38	38	167	0.9
13-8	5.3	21.2	19	38.5	51	43	213	2.2
16-8	8	32	23	42	62	50	255	3.2
20-8	12.5	50	24	44.6	74.8	63	305	5.8
22-8	15	60	32	70	68	62	348	9.2
26-8	21.2	84.8	35	84	84	64	394	13
32-8	31.5	126	37	102	100	88	480	18
