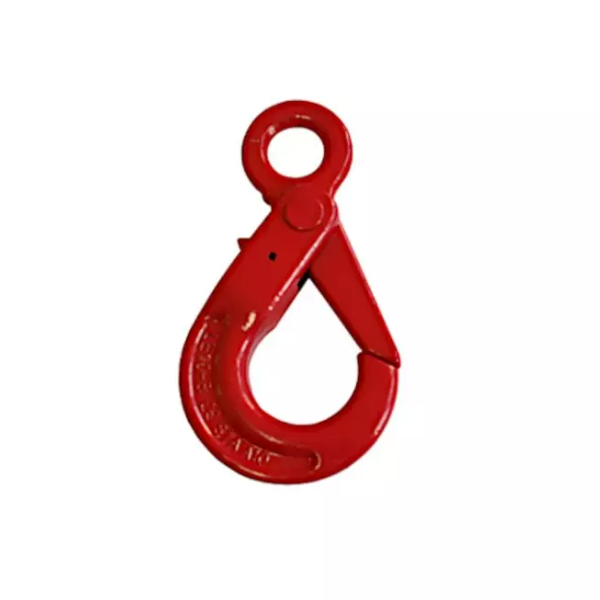

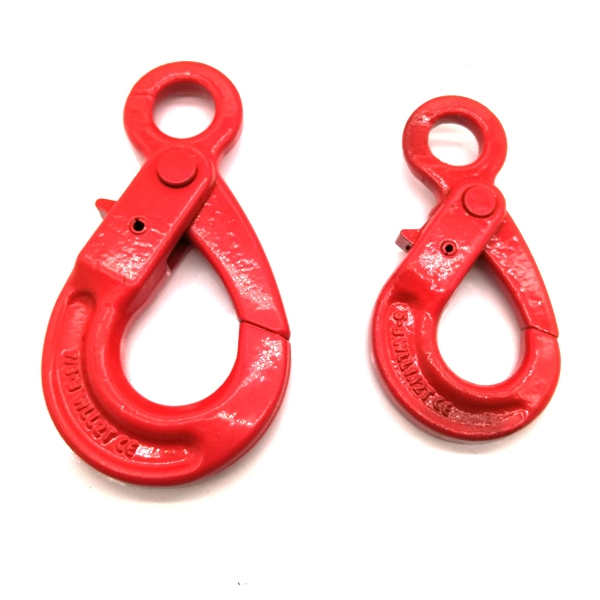

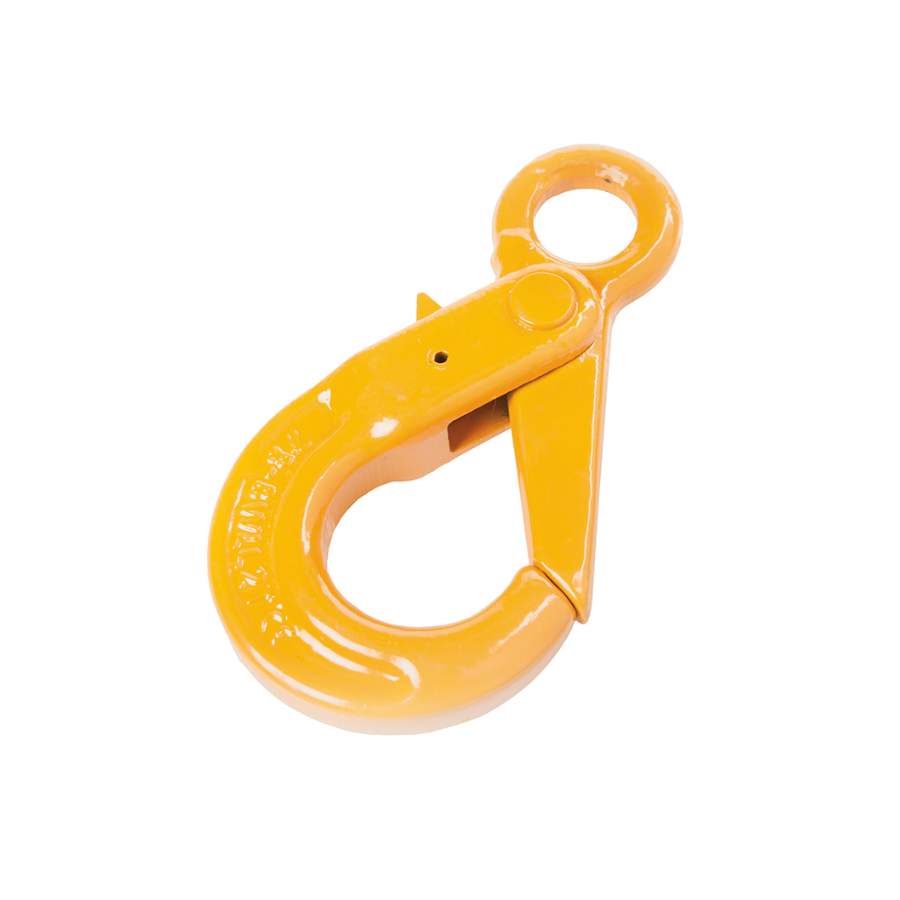

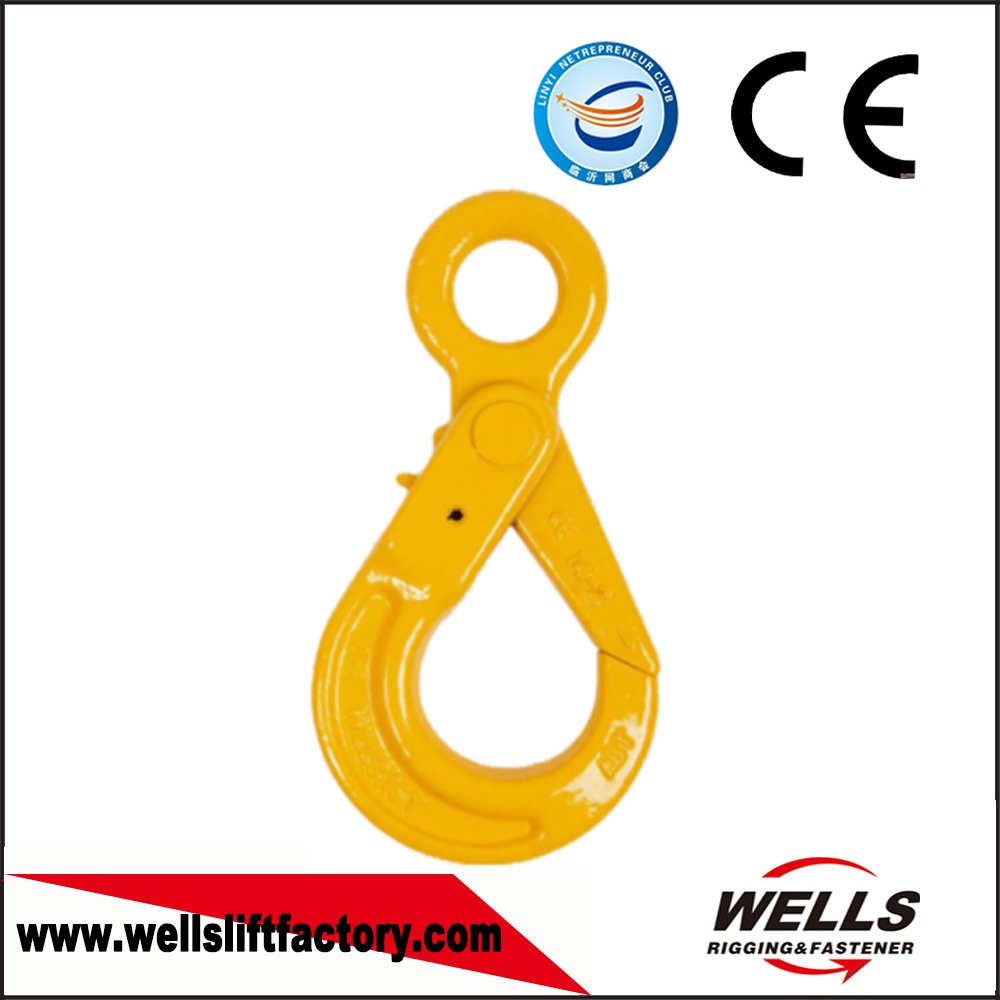

Product Description
1. Strong carrying capacity
High-strength material: G80 eye-shaped self-locking hook is usually forged from high-quality alloy steel, such as 35CrMo steel, which has high strength and high toughness, and can withstand large working loads.
High breaking tensile force: Its breaking tensile force reaches more than 5 times of the working load, ensuring safety and reliability during use.
2. Excellent safety performance
Self-locking function: The eye-shaped self-locking hook has a self-locking function, which can effectively prevent accidental decoupling during the hoisting process and improve the safety of the operation.
Anti-falling design: self-locking is achieved through springs or other mechanical structures to ensure that during the lifting process, even if it is shocked or vibrated by external forces, the phenomenon of decoupling will not occur.
Product Parameters

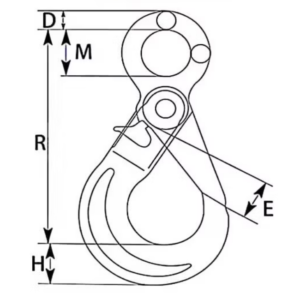

| Dimensions(mm) | W.L.L. | Weight | ||||
| Size(mm) | M | E | R | H | (T) | (KG) |
| 6 | 22.0 | 28.3 | 110.0 | 19.5 | 1.12 | 0.50 |
| 7/8 | 24.8 | 33.7 | 132.0 | 24.0 | 2.00 | 0.84 |
| 10 | 32.0 | 43.1 | 167.0 | 30.0 | 3.15 | 1.52 |
| 13 | 40.0 | 50.9 | 204.0 | 40.0 | 5.30 | 3.10 |
| 16 | 56.5 | 61.6 | 250.0 | 50.5 | 8.00 | 6.10 |
| 20 | 62.6 | 84.0 | 269.0 | 55.0 | 12.50 | 8.10 |
| 22 | 70.0 | 77.1 | 312.5 | 67.0 | 15.00 | 12.60 |
| 26 | 80.5 | 97.1 | 362.0 | 75.0 | 21.20 | 18.00 |
| 32 | 105.0 | 168.0 | 470.0 | 97.0 | 31.50 | 44.40 |
