G80 Alloy Steel Clevis Type Shortening Grab Hook with Wings

G80 Cradle Clevis Grab Hook:
1. Chain Size: 6mm-32mm
2. W. L. L.: 1.12ton to 31.5ton
3. Weight: 0.25KG-6.3KG

– Surface treatment: WLL, Size, Grade, CE, Batch No.
– Application: Used in connecting operation
– Special specification and marks can be made according to customers
– Packing: Packed in cartons with plastic bags inside on iron pallets
– size: 7/8mm to 16mm
– full traceability
– Proof tested to 2 ½ Times working load limit

Category: Hooks

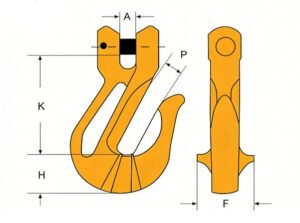

Size	W.L.L	Weight	A	K	P	F	H
mm	tons	kgs	mm	mm	mm	mm	mm
6-8	1.2	0.12	6.7	42	8	24	16.5
7/8-8	2	0.24	9	50	10	30	24
10-8	3.2	0.68	13	72	13	44	33
13-8	5.3	1.3	17	88	17	53	40
16-8	8	2.28	21	102	20	64	45
20-8	12.5	4.25	24	117	24	86	55
22-8	15	6.6	26	139	26	98	62
