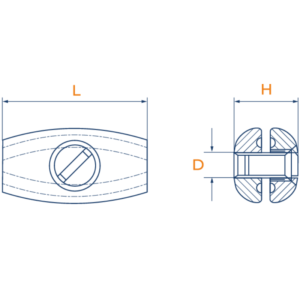

| Item no | d | D | L | H | g |
| mm | mm | mm | mm | mm | |
| 5003001 | 2 | M5 | 28 | 11 | 2.2 |
| 5003002 | 3 | M5 | 28 | 12 | 2.3 |
| 5003003 | 4 | M6 | 34 | 14 | 4.0 |
| 5003004 | 5 | M6 | 34 | 15 | 4.0 |
| 5003005 | 6 | M6 | 35 | 15 | 4.4 |
Wire Rope Clips

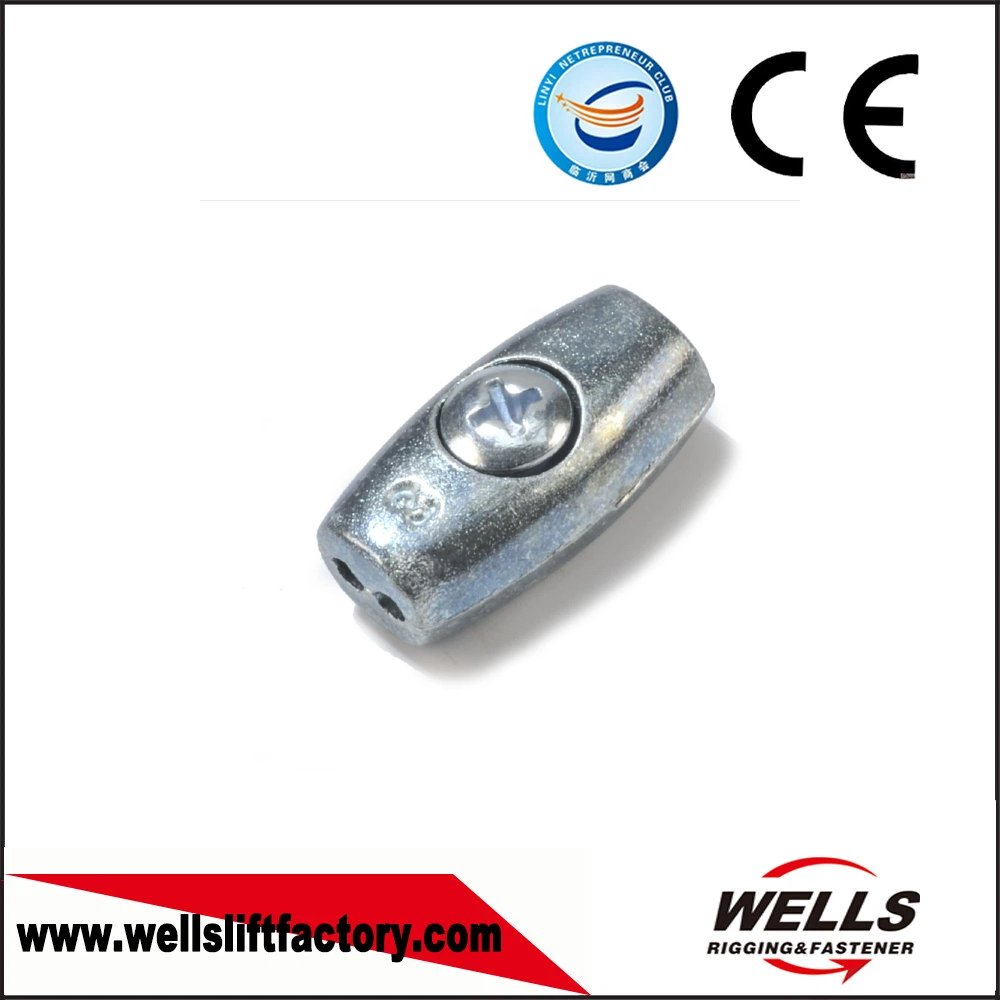

OVAL WIRE ROPE CLIPS
Size: 2-6mm
Easy handling: With the help of a screwdriver, the countersunk screw with both metal shells can be quickly fastened to the steel rope, thus creating a rope end connection.
Important safety note: Rope end connections with egg-shaped clamps are not suitable for higher loads.
Easy extension options: Wire rope clamps in egg shape make a very high-quality visual impression and can be used for simple rope end connections with loops or thimbles.
