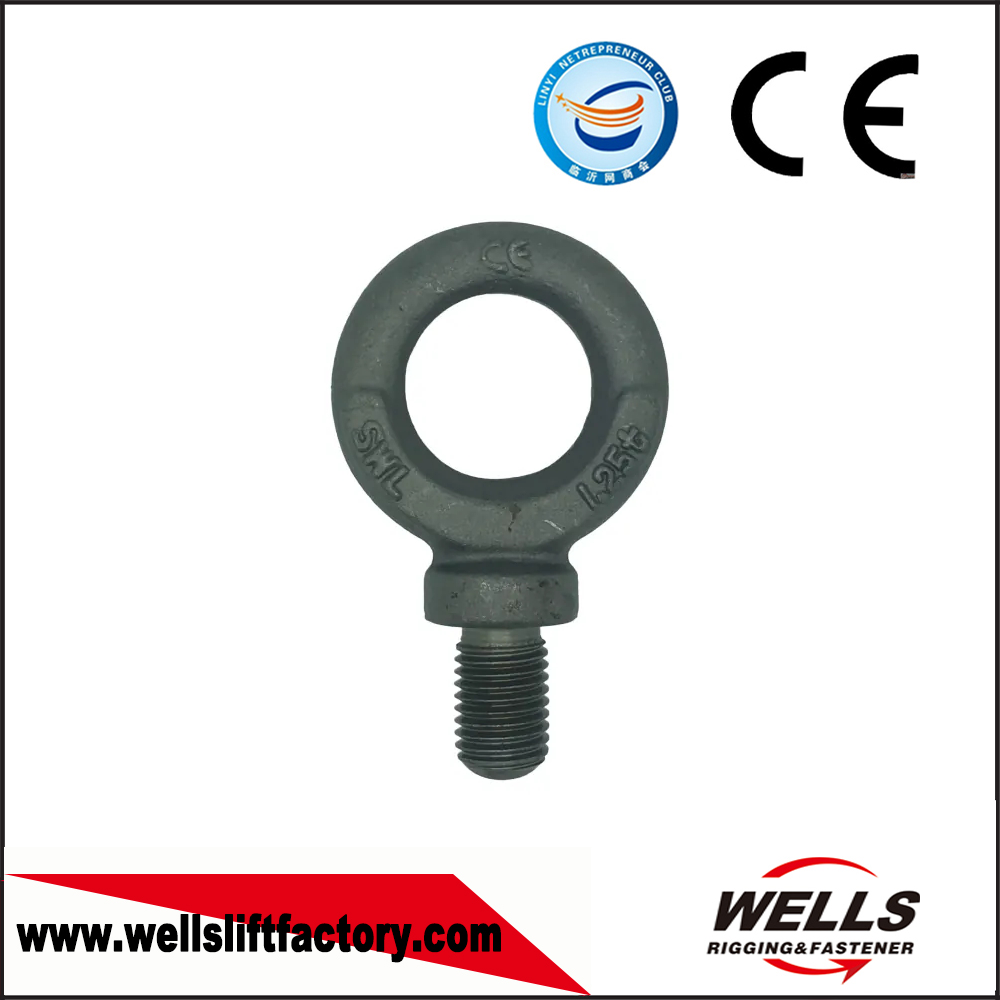

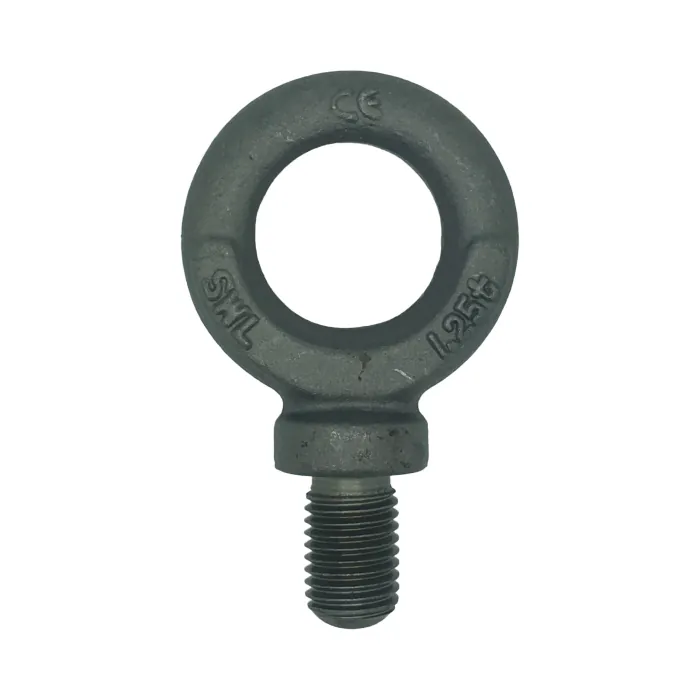

Dynamo Eyebolt BS 4278

Dynamo Eyebolt BS 4278

Dynamo Eyebolt BS 4278

Material:carbon steel

Surface:Self Color/Galv/Hot dip galvanized/Dacromet

Process:drop forged

B.S.W., U.N.C & U.N.F thread opptional

Category: Bolt & Nut

Description
Reviews (0)

Dynamo Eyebolt BS 4278

Item no	Size	A	B	C	D	E	G	H
Item no	Swl(tons)	mm	mm	mm	mm	mm	mm	mm
4005001	0.1	6	22	9	27	18	17	5
4005002	0.15	8	22	9	27	18	17	5
4005003	0.25	10	22	9	27	18	17	5
4005004	0.32	12	22	9	27	18	17	5
4005005	0.5	14	32	13	41	28	29	9
4005006	0.63	16	29	11	34	23	23	6
4005007	1	18	40	15	47	32	32	9
4005008	1.25	20	40	15	47	32	32	9
4005009	1.6	22	44	17	53	35	35	14
4005010	2	24	51	19	60	40	40	12
4005011	3.2	30	64	24	76	51	51	14
