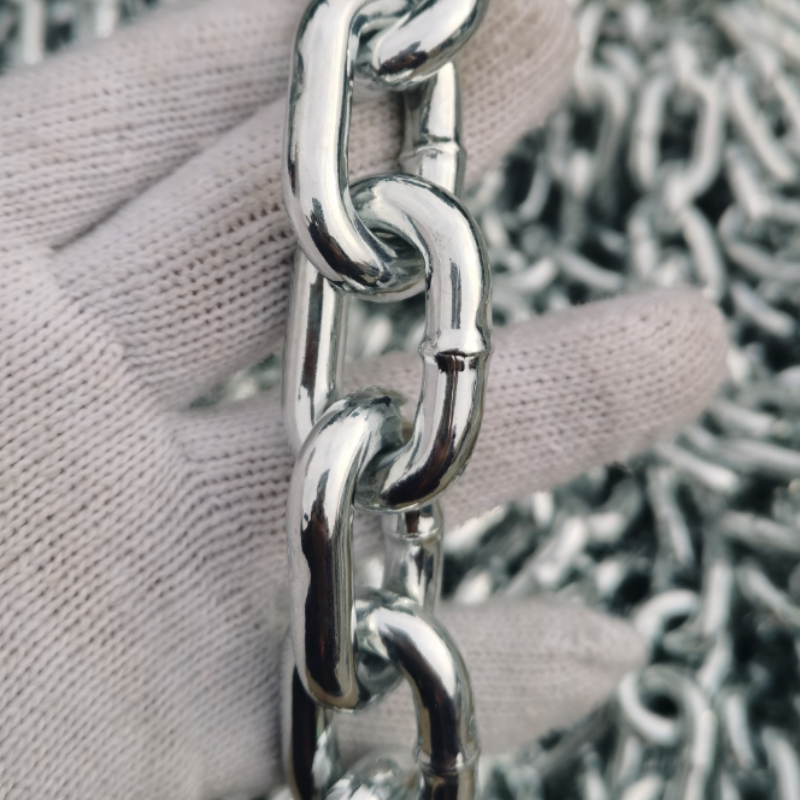

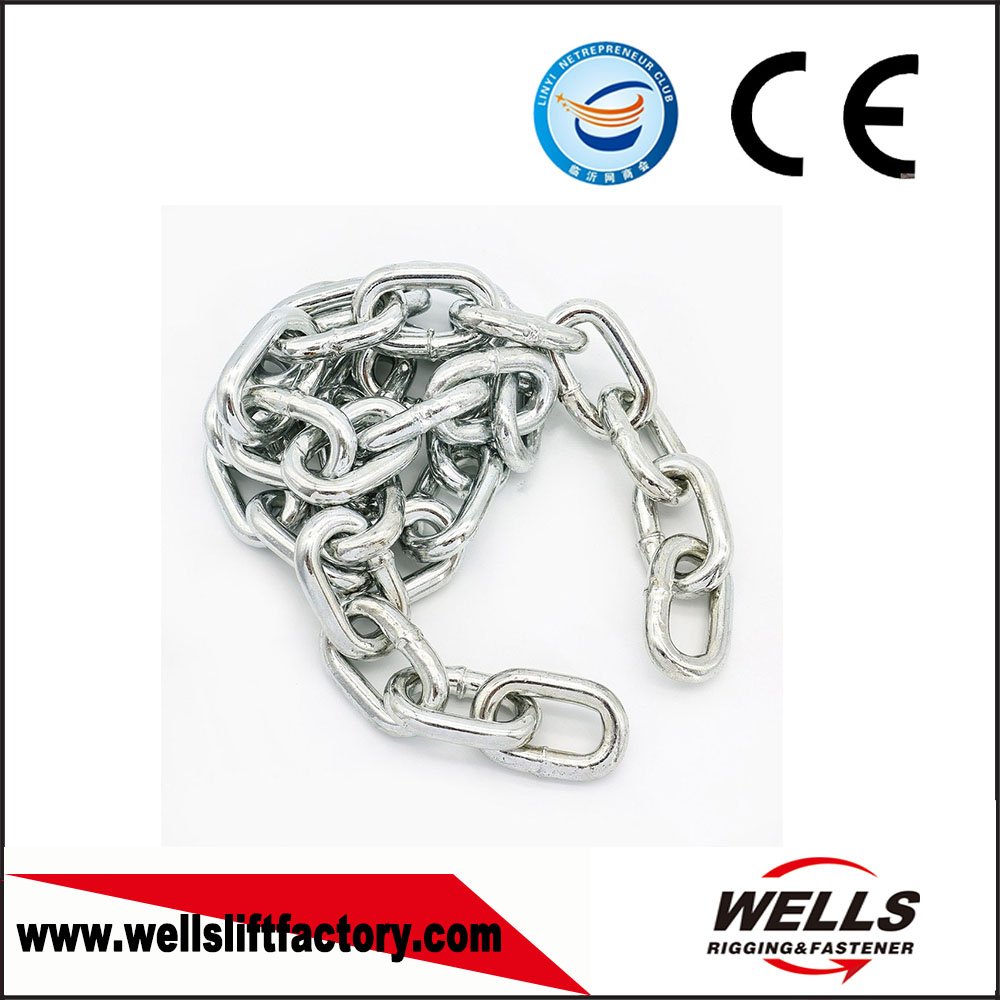

DIN766 Short Link Chain

DIN766 Short Link Chain

分类：
DIN766 Short Link Chain



Product Name DIN766 Short link chain
Material Sainless Steel or Carbon Steel
Structure Welded
Size 1.5mm~32mm
Type & Grade DIN766
Standard German Standard
Surface Treatment Self colored, electric galvanized, hot dip galvanized
Packing Gunny bag, Woden bag, Plastic reel+carton, Plastic drum, Steel drum, any other package request as request.

Specification Sheet:

DIN766 Short Link Chain
Size d(mm) Inside Length Inside width outside width Length per 11 links Weight Per M
mm ±mm mm ‌+mm _mm mm ‌mm ‌mm ‌+mm _mm kg
2 0.2 12 0.2 0.2 3.5 7.5 132 1 0.5 0.07
3 0.2 16 0.2 0.2 4.2 11.1 176 1.4 0.7 0.32
4 0.2 16 0.3 0.2 5 13.5 176 2.1 1.1 0.56
5 0.2 18.5 0.4 0.2 6 17 203.5 2.4 1.2 0.5
6 0.2 18.5 0.4 0.2 7.2 20.2 203.5 2.4 1.2 0.8
7 0.3 22 0.4 0.2 8.4 23.8 245 3 1.4 1.1
8 0.3 24 0.4 0.2 9.6 27.2 264 3.2 1.5 1.4
9 0.4 27 0.5 0.3 10.8 30.6 297 3.6 1.8 1.8
10 0.4 28 0.5 0.3 12 34 308 3.7 1.9 2.2
11 0.4 31 0.5 0.3 13.2 37.4 341 4 2 2.7
12 0.3 36 0.6 0.3 14.4 40.8 396 4.4 2.2 3.1
13 0.5 36 0.6 0.3 15.6 44.2 396 4.6 2.4 3.8
14 0.6 41 0.7 0.4 16.8 47.6 451 5.4 2.7 4.4
16 0.6 45 0.8 0.4 19.2 54.4 495 6 3 5.7
18 0.9 50 0.8 0.4 21.6 61.2 550 6.6 3.3 7.3
19 0.4 53 0.9 0.4 22.8 64.6 563 7 3.7 7.97
20 1 56 1 0.5 24 68 616 7.4 3.7 9.07
22 1.2 62 1.1 0.5 26.4 75 682 8 4 11
23 1.2 64 1.1 0.5 27.6 78.2 704 8.4 4.2 12
26 1.3 73 1.2 0.6 31.2 88.4 803 9.6 4.8 15
28 1.4 78 1.3 0.65 33.8 95.2 858 10.2 5.1 18
30 1.5 84 1.4 0.7 41 102 824 11 5.5 19.5
32 1.6 90 1.5 0.75 43 108.8 990 11.8 5.9 23
