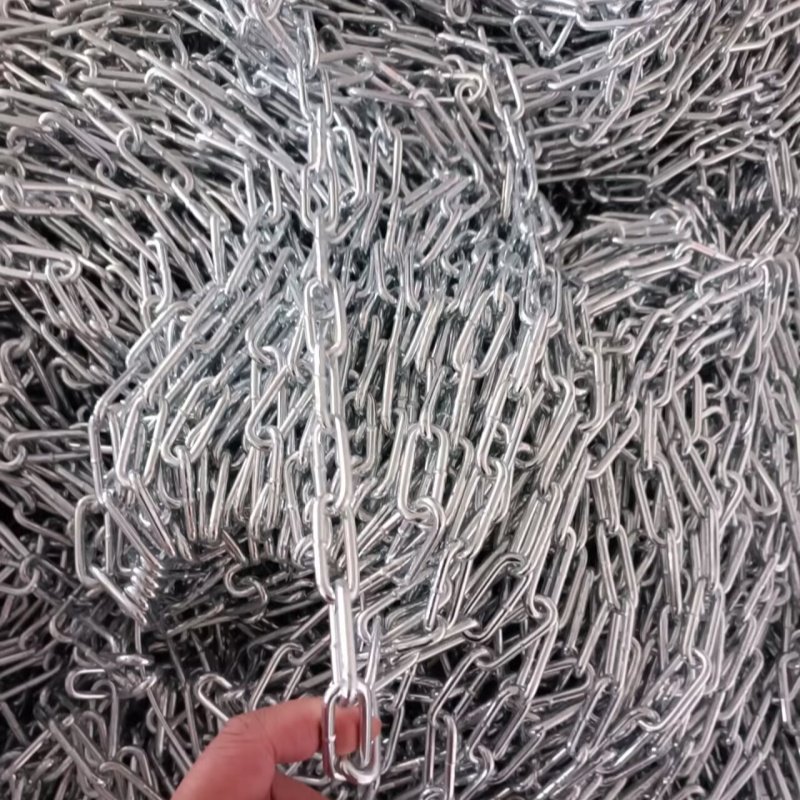

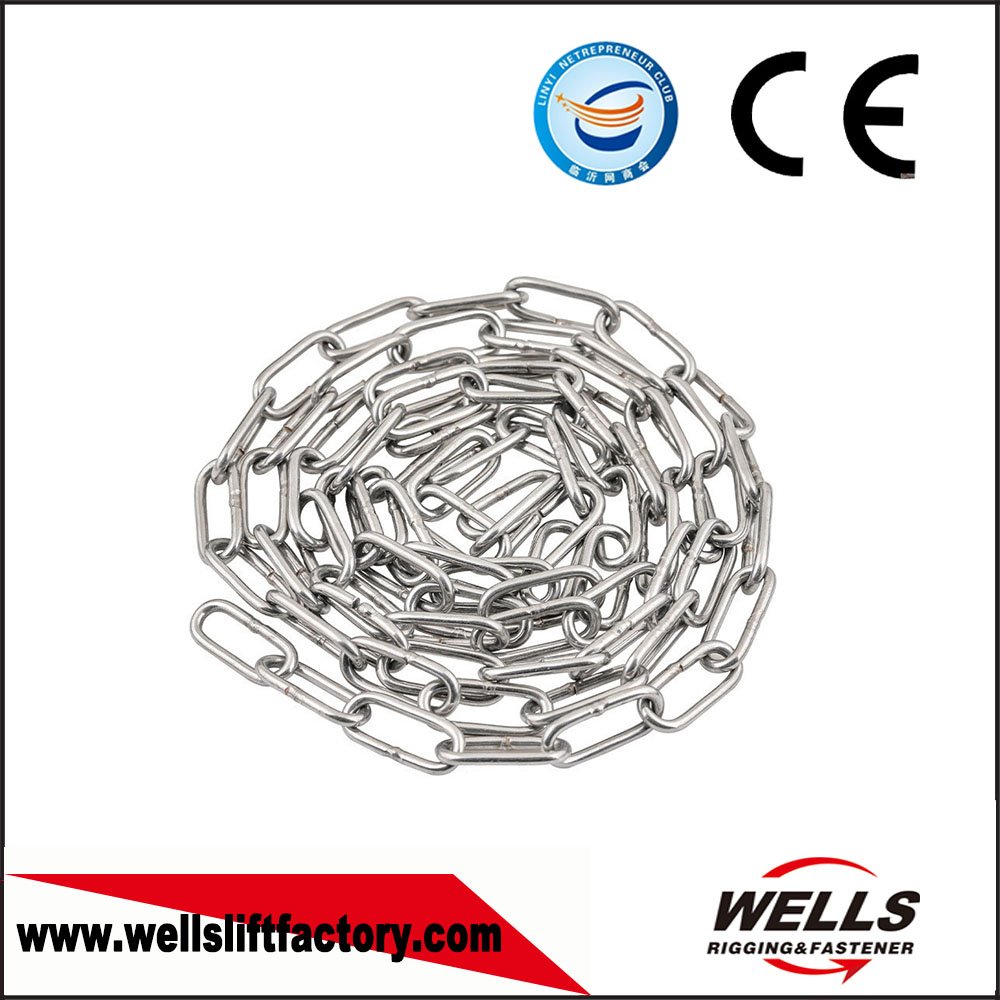

DIN763 Long Link Chain

DIN763 Long Link Chain

分类：
DIN763 Long Link Chain
Product Name DIN763 long link chain
Material Sainless Steel or Carbon Steel
Structure Welded
Size 1.5mm~32mm
Type & Grade DIN763
Standard German Standard
Surface Treatment Self colored, electric galvanized, hot dip galvanized
Packing Gunny bag, Woden bag, Plastic reel+carton, Plastic drum, Steel drum, any other package request as request.

Specification Sheet:

DIN763Long Link Chain
Size d(mm) Inside Length Outside Width Working Load(kg) Test Load(N) Breaking Load(N) Weight Per M(kg)
mm ±mm mm ‌±mm mm ‌±mm
2 0.5 22 1 8 0.4 25 800 1200 0.06
2.5 24 1.1 10 0.5 40 800 2000 0.1
3 26 1.2 12 0.6 55 1050 2600 0.15
3.5 28 1.3 14 0.7 80 1540 3850 0.2
4 32 1.5 16 0.8 100 2500 6250 0.27
4.5 34 1.7 18 0.9 128 3000 8000 0.35
5 35 1.8 20 1 160 4000 10000 0.43
5.5 38.5 1.8 22 1.1 195 4200 10500 0.52
6 42 2 24 1.2 200 5000 12000 0.63
7 49 2.5 28 1.4 300 7500 19000 0.86
8 52 2.5 32 1.6 400 10000 25000 1.1
8.5 56 2.8 34 1.7 460 10500 26250 1.25
9 59 3 36 1.8 530 10500 32000 1.41
10 1 65 3.2 40 2 630 16000 47000 1.75
11 72 3.4 44 2 790 18500 46250 2.11
12 78 3.6 48 2.3 940 18500 56500 2.55
13 82 4 52 2.5 1000 25000 63000 2.95
16 100 5 64 3.2 1100 42000 107000 4.45
18 113 5.2 70 3.2 2300 47300 120000 5.65
19 119 5.6 72 3.4 2370 47300 142000 6.25
20 120 6 75 3.8 2500 63000 160000 7
22 127 6 82 4 3170 50000 180000 8.55
25 140 6.6 85 4.2 4090 81700 245000 10.9
28 152 7 96 4.7 6000 120000 300000 13
32 171 7.8 108 5.2 8000 160000 400000 18.2
