DIN5685A Short Link Chain

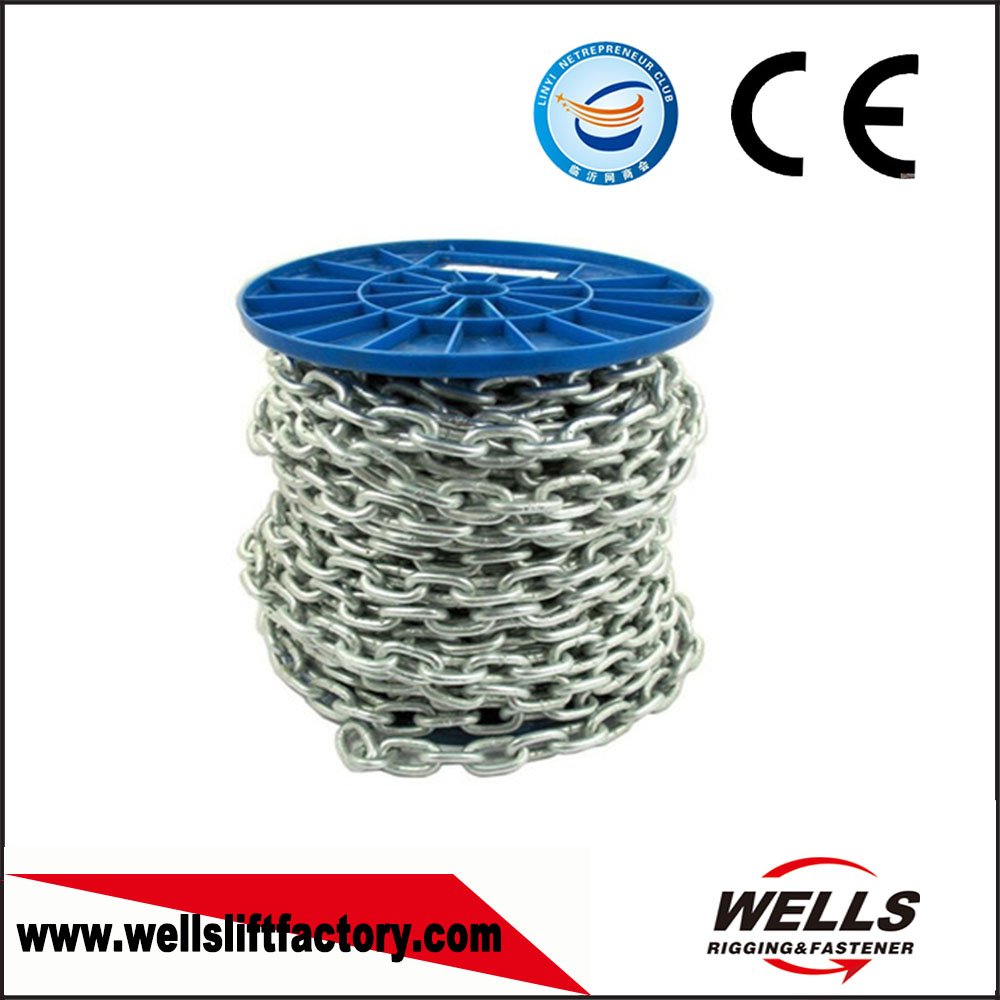

Product Name DIN5685 A short link chain
Material Sainless Steel or Carbon Steel
Structure Welded
Size 1.5mm~32mm
Type & Grade DIN5685 A
Standard German Standard
Surface Treatment Self colored, electric galvanized, hot dip galvanized
Packing Gunny bag, Woden bag, Plastic reel+carton, Plastic drum, Steel drum, any other package request as request.

Specification Sheet:

DIN5685A/C Short/Long Link Chain
Size d (mm) Inside Length(mm) Outside Width)mm) Weight Per 100m(kg) Test Load(n) Breaking Load(n) Type Link
2 12 8 7 500 1250 A
2 22 8 6 500 1250 C
2.5 14 10 11 750 2000 A
2.5 24 10 10 750 2000 C
3 16 12 16.5 1120 2800 A
3 26 12 15 1120 2800 C
3.5 18 14 22.5 1500 3850 A
3.5 28 14 20 1500 3850 C
4 19 16 30 2000 5000 A
4 32 16 27 2000 5000 C
4.5 20 18 39.5 2500 6300 A
4.5 34 18 35 2500 6300 C
5 21 20 50 3150 7750 A
5 35 20 43 3150 7750 C
5.5 23 22 60.5 3800 9500 A
5.5 38.5 22 32 3800 9500 C
6 24 24 73 4500 11500 A
6 42 24 63 4500 11500 C
6.5 26 26 86 5400 13500 A
6.5 45.5 26 74 5400 13500 C
7 28 28 100 6000 15000 A
7 49 28 86 6000 15000 C
8 32 32 130 8000 20000 A
8 52 32 110 8000 20000 C
8.5 34 34 149 9000 22500 A
8.5 56 34 125 9000 22500 C
9 36 36 165 10000 25000 A
9 59 36 141 10000 25000 C
10 40 40 205 12500 31000 A
10 65 40 175 12500 31000 C
11 44 44 250 15000 38000 A
11 72 44 211 15000 38000 C
12 48 48 290 18000 45000 A
12 78 48 255 18000 45000 C
13 52 52 345 21200 53000 A
13 82 52 295 21200 53000 C
