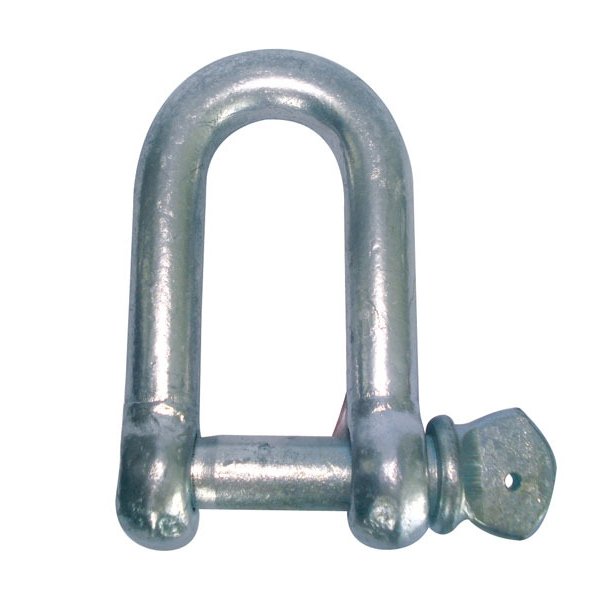

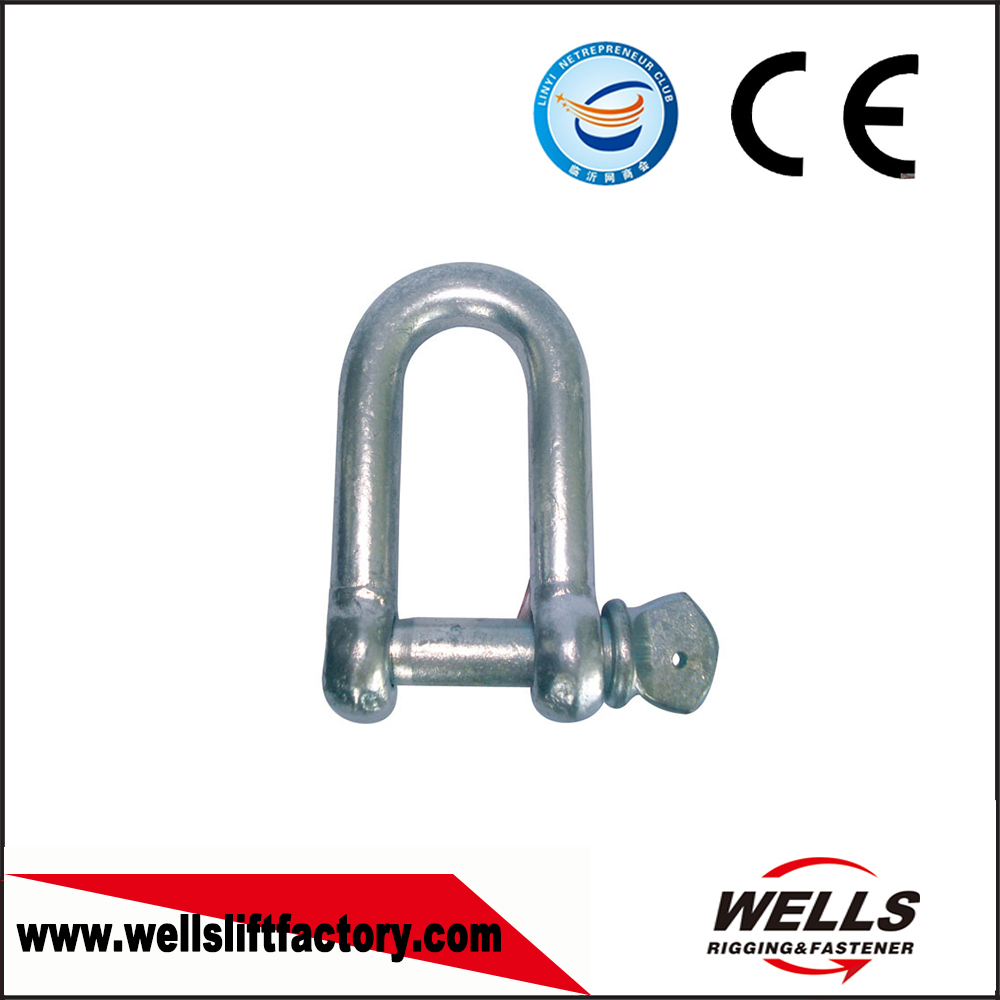

Commercial European Type Galvanized Dee Shackle with Screw Pin

Commercial European Type Galvanized Dee Shackle with Screw Pin

Commercial European Type Galvanized Dee Shackle with Screw Pin

Carbon steel

WLL 80kg to 8000kg.

Electric galvanized, hot dipped galvanized, self-color

Stainless steel AISI304/316 is available.

分类：

Commercial European Type Galvanized Dee Shackle with Screw Pin

Item
no		 Size D d B H SWL
mm mm mm mm mm tons
2013001 4 4 4 8 14 –
2013002 5 5 5 10 19 0.08
2013003 6 6 6 12 24 0.1
2013004 8 8 8 16 32 0.2
2013005 10 10 10 20 40 0.32
2013006 11 11 11 22 44 0.4
2013007 12 12 12 25 48 0.52
2013008 14 14 14 28 56 0.645
2013009 16 16 16 32 64 0.8
2013010 18 18 18 36 71 1
2013011 20 19 20 44 76 1.1
2013012 22 22 22 44 85 1.5
2013013 25 25 24 50 95 2.1
2013014 28 28 27 56 106 3
2013015 32 32 33 64 120 3.5
2013016 35 36 36 70 130 4
2013017 38 38 39 76 145 5
2013018 42 42 42 76 145 6
2013019 45 45 45 80 155 7
2013020 50 50 52 90 175 8
