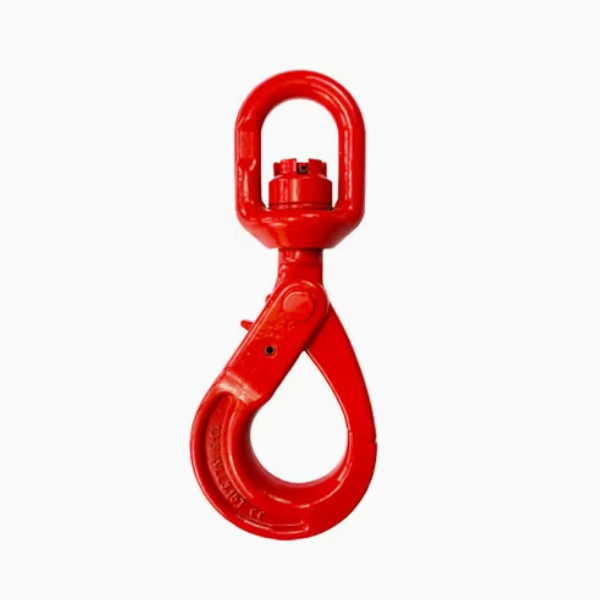

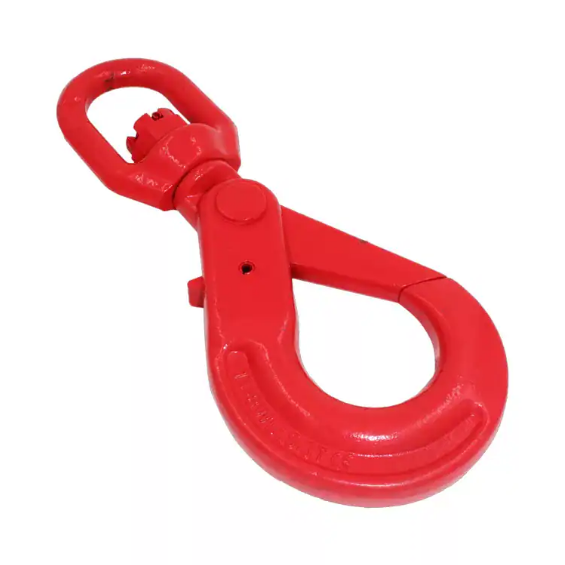

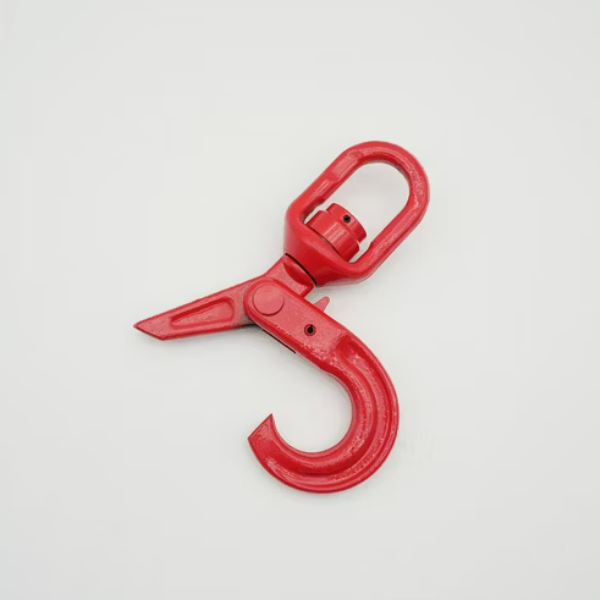

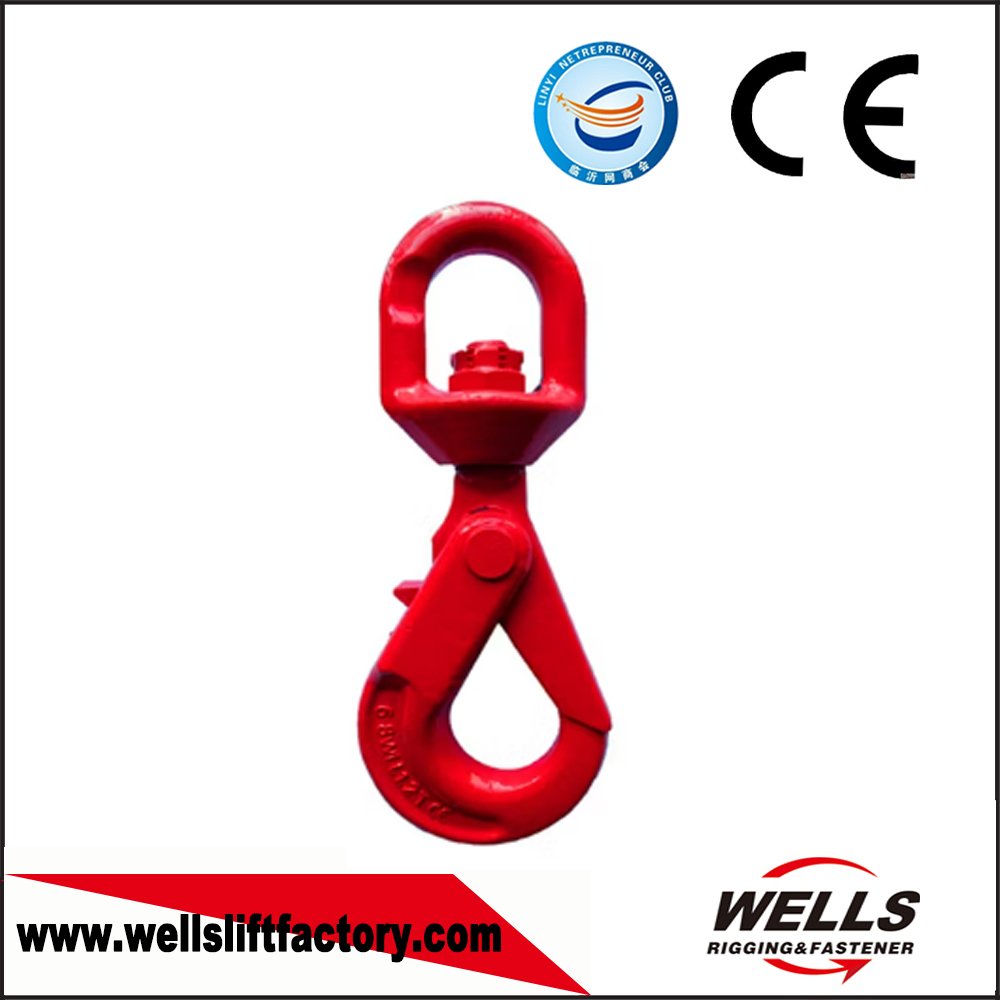

G80 Swivel Self-Locking Hook

Product Description

G80 Forged Alloy Steel revised type Swivel self-locking Hook

– Surface treatment: WLL, Size, Grade, CE, Batch No.
– Application: Used in connecting operation
– Special specification and marks can be made according to customers
– Packing: Packed in cartons with plastic bags inside on iron pallets
– B. L= 4 times*WLL
– full tracebility
– Proof tested to 2 ½ Times working load limit

分类： Hooks

Product Parameters

SIZE	W.L.L	B	C	D	L	M	E	N.W.
mm	t	mm	mm	mm	mm	mm	mm	kg
6-8	1.12	32.5	22	11.25	170	34	29	0.7
7/8-8	2	35.5	26	12.5	210	46	34	1.1
10-8	3.15	42	34	15	247	56	44	2
13-8	5.3	50	38.5	16	302	69	52	4
16-8	8	61	55	21.5	383	86	60	7.3
18/20-8	12.5	72	61	26	418	100	83	11.6
22-8	15	95	95	33	527	98	88	16
26-8	21.2	122	115	42	610	110	95.5	21.5
32-8	31.5	140	146	52	777	166	150	79
