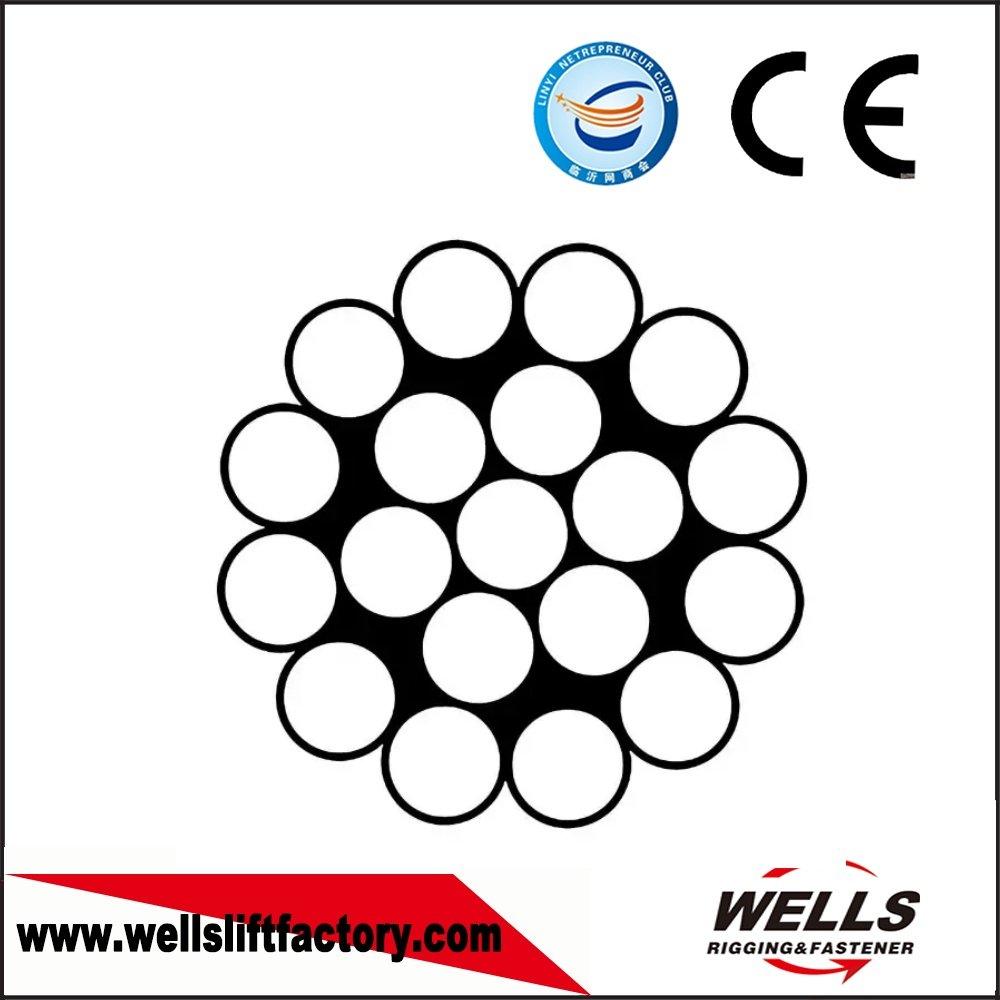

1×19 WIRE ROPE

Steel strand

Applications:Suitable for hanger,communication cable,overhead power line and fixing subject

As per EN、 ISO、 JIS、 ASTM standard…

Category: Wire rope

1×19 WIRE ROPE
Steel Wire Rope		Technical Parameters
公称直径/mm nominal diameter	参考重量 (kg/100m) approximate weight	钢丝绳公称抗拉强度(MPa) nominal tensile strength
		1570	1670	1770	1870
		钢丝绳最小破断拉力(KN) minimum breakingload
1	0.51	0.83	0.89	0.94	0.99
2	2.03	3.33	3.54	3.75	3.96
3	4.56	7.49	7.97	8.44	8.92
4	8.11	13.3	14.2	15	15.9
5	12.7	20.8	22.1	23.5	24.8
6	18.3	30	31.9	33.8	35.7
7	24.8	40.8	43.4	46	48.6
8	32.4	53.2	56.6	60	63.4
9	41.1	67.4	71.7	76	80.3
10	50.7	83.2	88.6	93.8	99.1
11	61.3	101	107	114	120
12	73	120	127	135	143
13	85.7	141	150	159	167
14	99.4	163	173	184	194
15	114	187	199	211	223
