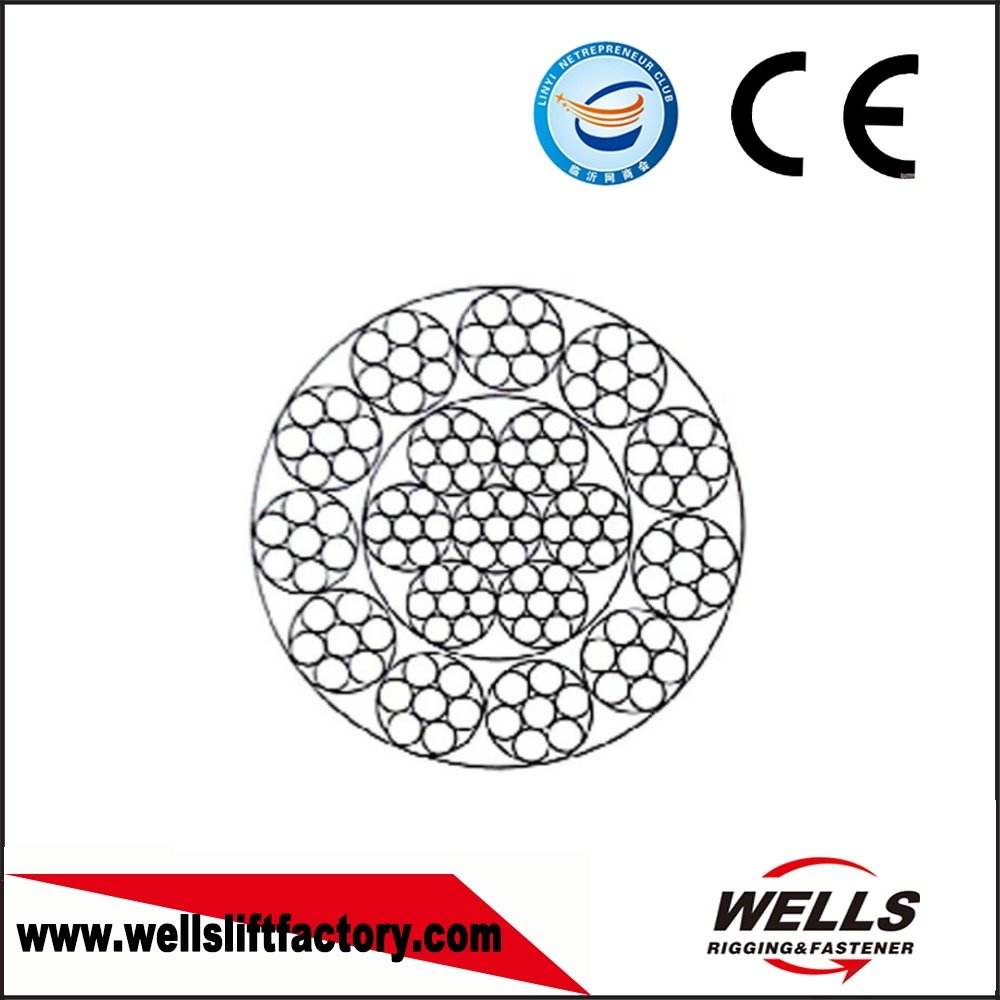

17×7+IWS WIRE ROPE

17×7+IWS STEEL WIRE ROPE
钢丝绳公称直径 nominal diameter(mm)	参考重量 (Kg/100m) approximate weight		钢丝绳公称抗拉强度(MPa) nominal tensile strength
			1570		1670		1770		1870		1960
			钢丝绳最小破断拉力(KN) minimun breaking load
	纤维芯 FC	钢芯 IWR IWS	纤维芯 FC	钢芯 IWR IWS	纤维芯 FC	钢芯 IWR IWS	纤维芯 FC	钢芯 IWR 1WS	纤维芯 FC	钢芯 IWR IWS	纤维芯 FC	钢芯 IWR IWS
6	14.0	15.5	17.5	18.5	18.6	19.7	19.8	20.9	20.9	22.1	21.9	23.1
7	19.1	21.1	23.8	25.2	25.4	26.8	26.9	28.4	28.4	30.1	29.8	31.5
8	25.0	27.5	31.1	33.0	33.1	35.1	35.1	37.2	37.1	39.3	38.9	41.1
9	31.6	34.8	39.4	41.7	41.9	44.4	44.4	47.0	47.0	49.7	49.2	52.1
10	39.0	43.0	48.7	51.5	51.8	54.8	54.9	58.1	58.0	61.3	60.8	64.3
11	47.2	52.0	58.9	62.3	62.6	66.3	66.4	70.2	70.1	74.2	73.5	77.8
12	56.2	61.9	70.1	74.2	74.5	78.9	79.0	83.6	83.5	88.3	87.5	92.6
13	65.9	72.7	82.3	87.0	87.5	92.6	92.7	98.1	98.0	104	103	109
14	76.4	84.3	95.4	101	101	107	108	114	114	120	119	126
16	99.8	110	125	132	133	140	140	149	148	157	156	165
18	126	139	158	167	168	177	178	188	188	199	197	208
20	156	172	195	206	207	219	219	232	232	245	243	257
22	189	208	236	249	251	265	266	281	281	297	294	311
24	225	248	280	297	298	316	316	334	334	353	350	370
26	264	291	329	348	350	370	371	392	392	415	411	435
28	306	337	382	404	406	429	430	455	454	481	476	504
30	351	387	438	463	466	493	494	523	522	552	547	579
32	399	440	498	527	530	561	562	594	594	628	622	658
34	451	497	563	595	598	633	634	671	670	709	702	743
36	505	557	631	667	671	710	711	752	751	795	787	833
38	563	621	703	744	748	791	792	838	837	886	877	928
40	624	688	779	824	828	876	878	929	928	981	972	1030
42	688	759	859	908	913	966	968	1020	1020	1080	1070	1130
44	755	832	942	997	1000	1060	1060	1120	1120	1190	1180	1240
