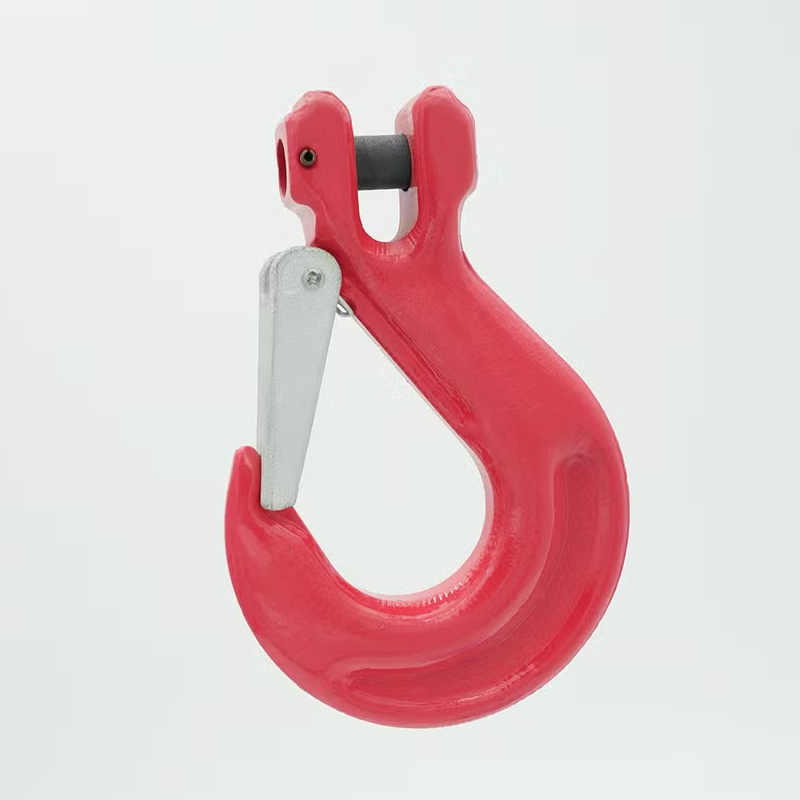

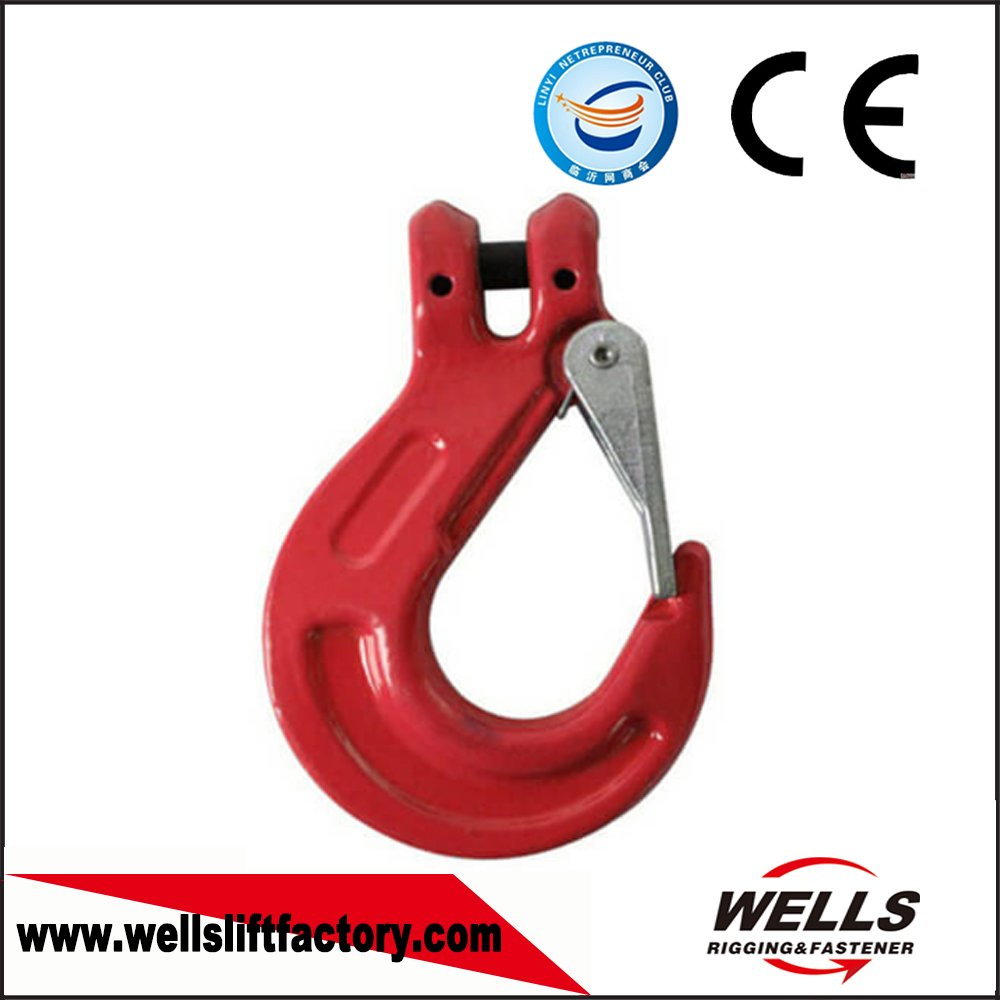

G80 Forged Alloy Steel with Latch Clevis Sling Hook

G80 Clevis Sling Hook

– Surface treatment: WLL, Size, Grade, CE, Batch No.
– Application: Used in connecting operation
– Special specification and marks can be made according to customers
– Packing: Packed in cartons with plastic bags inside on iron pallets
– B. L= 4 times*WLL
– full traceability
– Proof tested to 2 ½ Times working load limit

分类： Hooks

Product Parameters

Size	WLL	A	B	C	H	K	E	N.W.
(mm)	(t)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
6-8	1.12	8	32	35	23	76	26	0.32
7/8-8	2	9.5	37	37	32.5	85.5	29	0.52
10-8	3.15	13	49	46	35	104	39	1.05
13-8	5.3	16.5	56.5	56	42.5	128	47	2
16-8	8	21.5	70.5	60	54	150	55	3.7
20-8	12.5	24	77	79	58	180	61	6
22-8	15	27	91	101	62	213	72	10.4
