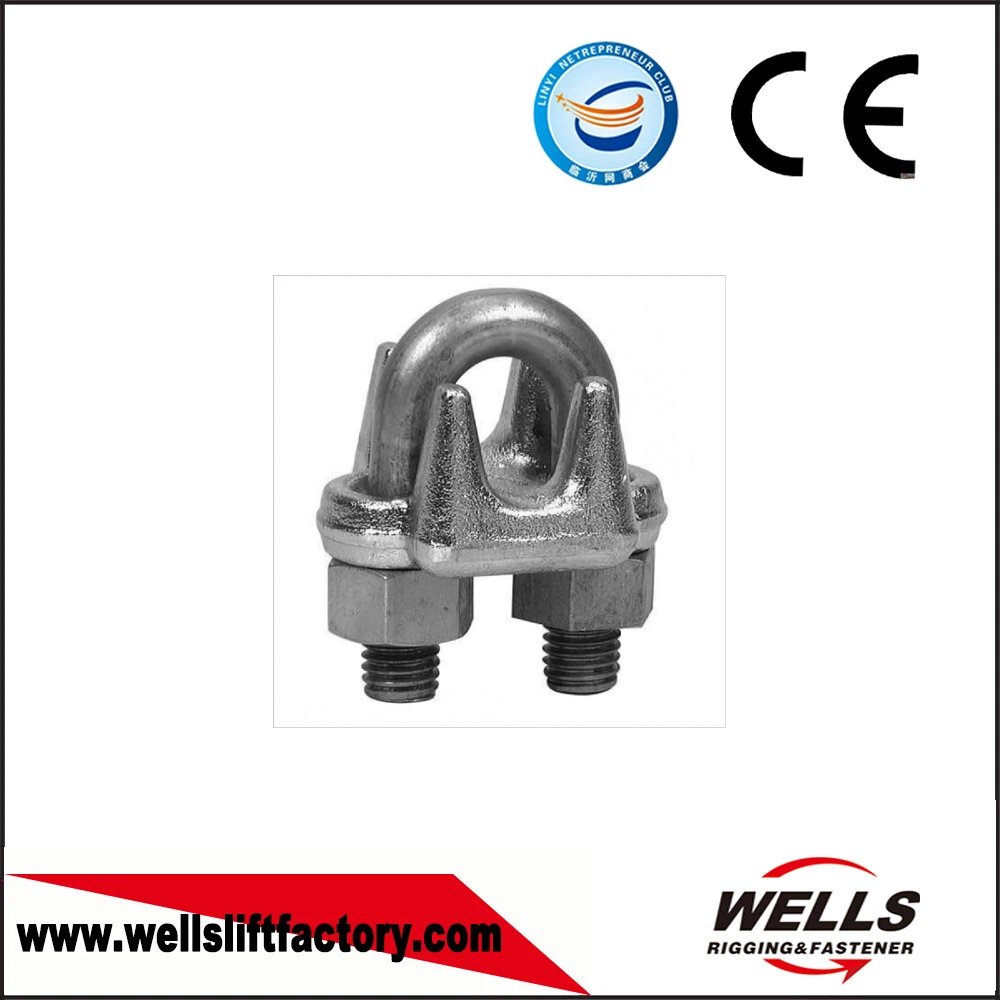

US TYPE DROP FORGED WIRE ROPE CLIPS
US TYPE DROP FORGED WIRE ROPE CLIPS - 图片 2
US TYPE DROP FORGED WIRE ROPE CLIPS - 图片 3
US TYPE DROP FORGED WIRE ROPE CLIPS - 图片 4

US TYPE DROP FORGED WIRE ROPE CLIPS

—Forged construction: Drop-forged for heavy-duty strength and durability

—Hot dip galvanized finish: Provides superior corrosion resistance in outdoor and marine environments

—Wide size range: From 1/4″ up to 1″ to fit various cable diameters

—U-bolt with hex nuts: Clamps securely over the dead end of the rope

Affordable and dependable: Comparable performance to premium models at a lower cost

分类：

ltem no Cips Size A B C D E G H Weght/
kg per 100pcs
in mm
5001001 1/4 6-7 8 26 13 19 16 30 36 8
5001002 5/16 8 9.5 35 19 22 18 33 43 14
5001003 3/8 9-10 11 38 19 25 23 41 49 19
5001004 7/16 11-12 12.7 47 25 30 26 46 58 32
5001005 1/2 13 12.7 47 25 30 28 48 58 34
5001006 9/16 14-15 14.3 57 32 33 31 52 63 45
5001007 58 16 14.3 60 32 33 34 52 63 45
5001008 34 18-20 15.9 70 36 38 35 57 72 68
5001009 7/8 22 19 79 41 44 40 62 80 109
5001010 1 24-26 19 89 46 47 45 66 88 113
