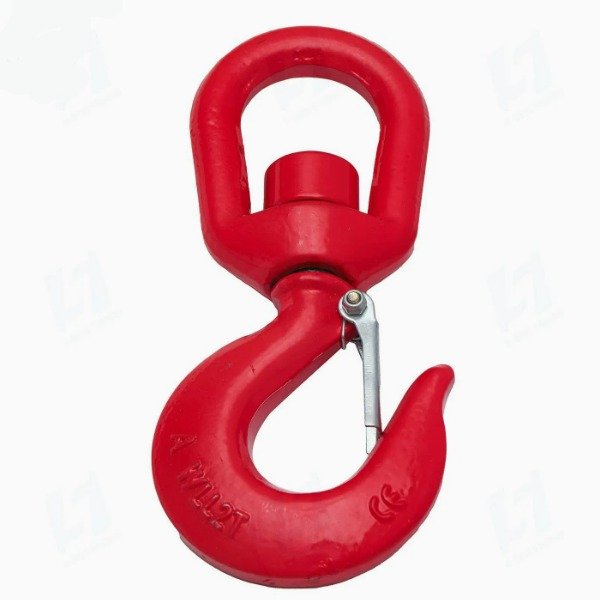

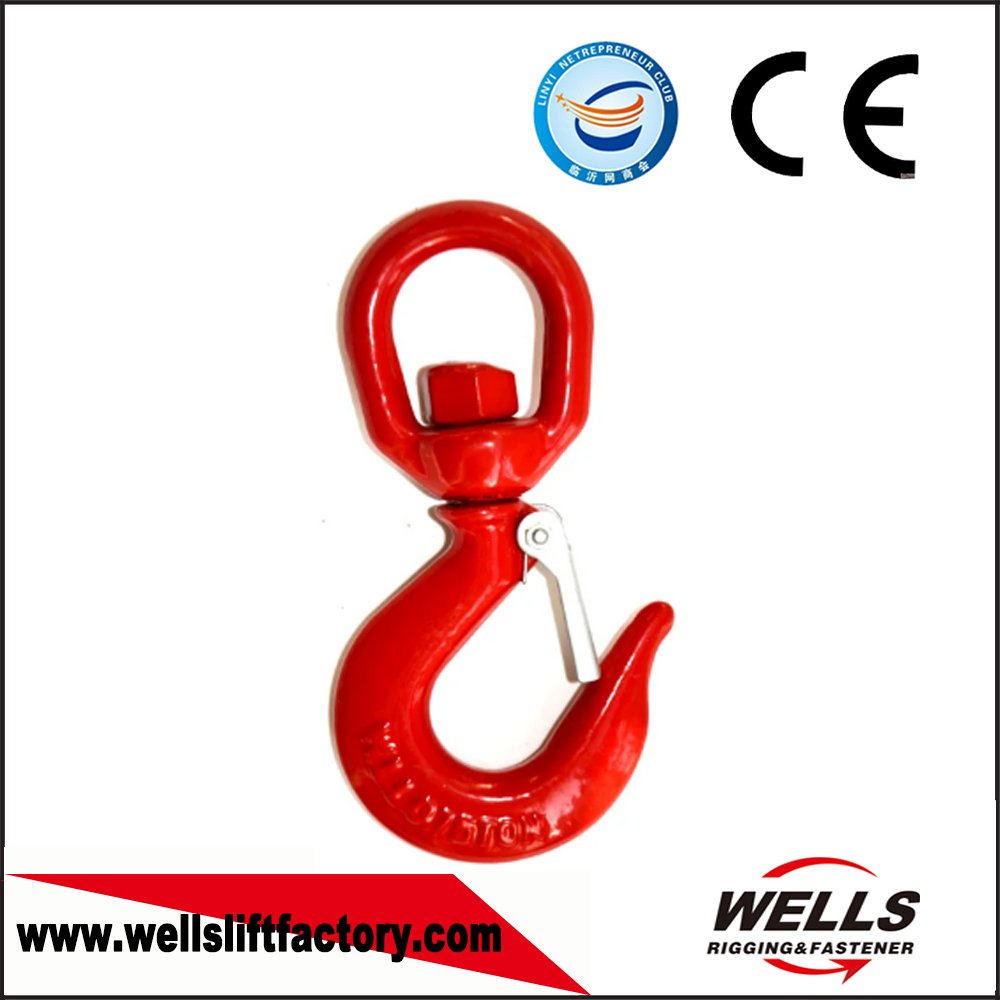

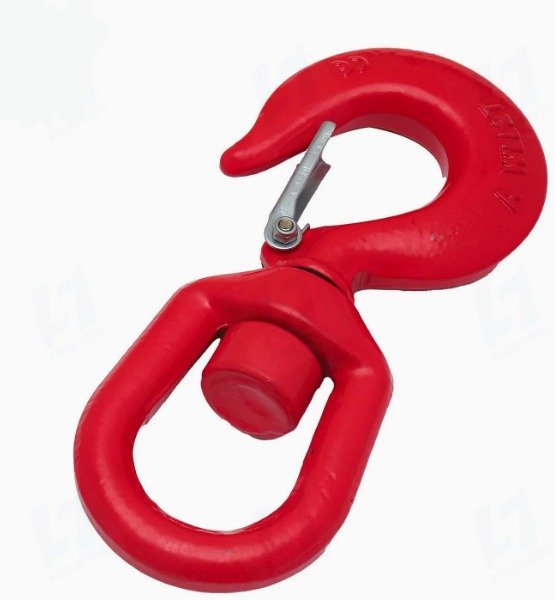

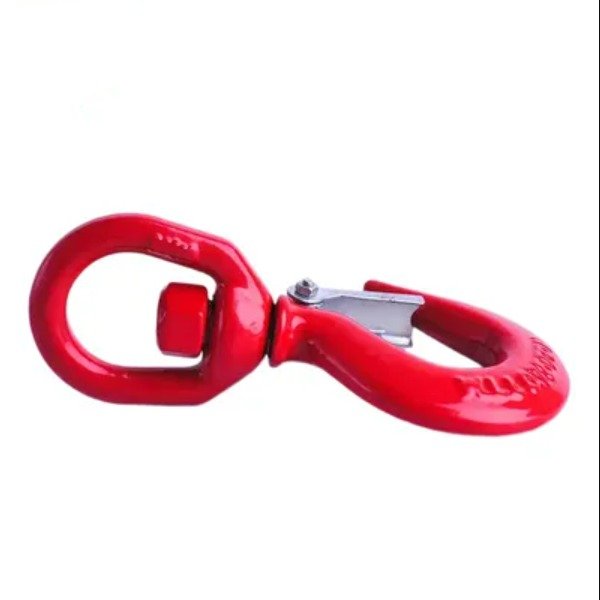

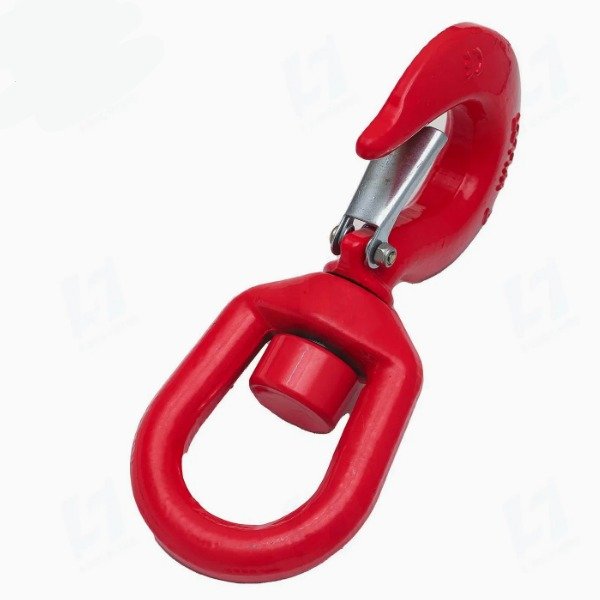

322A 322C Chain Swivel Hoist Hook US Type Lifting Swivel Self-locking Hook with Safety Latch Heavy Duty Swivel Hook Rigging
Model number: 322A/322C
Material: 322C-Carbon Steel; 322A-Alloy Steel;Ball carbon steel
Technology: Forged, Quenched &Tempered
Finish: Plain, Black, Zinc, Electrolytic Treatment
Certificate: CE certificate
Surface treatment: Powder Painted
Color: Red,Yellow,Blue
Testing: Proof Load is 2 times Working Load Limit; Ultimate Load is 5 times Working Load Limit
Usage: Lifting and connecting
Application: Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry
Product Specification:
| Item no | Working Load Limit (TONS) | Dimensions(mm) | Weight | ||||
| 322C | 322A | B | C | O | R | kgs | |
| 8101001 | 0.75 | 1.00 | 0.94 | 1.25 | 0.88 | 4.47 | 0.35 |
| 8101002 | 1.00 | 1.50 | 1.31 | 1.50 | 0.97 | 5.28 | 0.58 |
| 8101003 | 1.50 | 2.00 | 1.63 | 1.75 | 1.00 | 6.02 | 1.03 |
| 8101004 | 2.00 | 3.00 | 1.56 | 1.75 | 1.13 | 6.38 | 1.18 |
| 8101005 | 3.00 | 4.50 | 1.75 | 2.00 | 1.34 | 7.41 | 2.18 |
| 8101006 | 5.00 | 7.00 | 2.31 | 2.50 | 1.69 | 9.59 | 4.72 |
| 8101007 | 7.50 | 11.00 | 2.38 | 2.75 | 2.06 | 11.13 | 7.45 |
| 8101008 | 10.00 | 15.00 | 2.81 | 3.13 | 2.25 | 11.94 | 10.61 |
